CYP17882

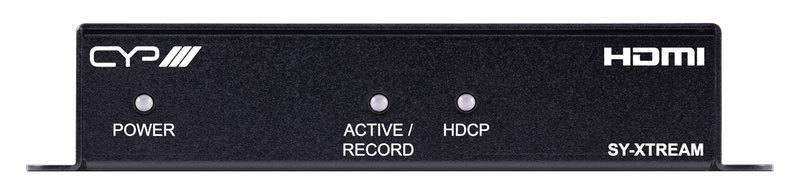

P-HDMI to USB Video Capture Recorder

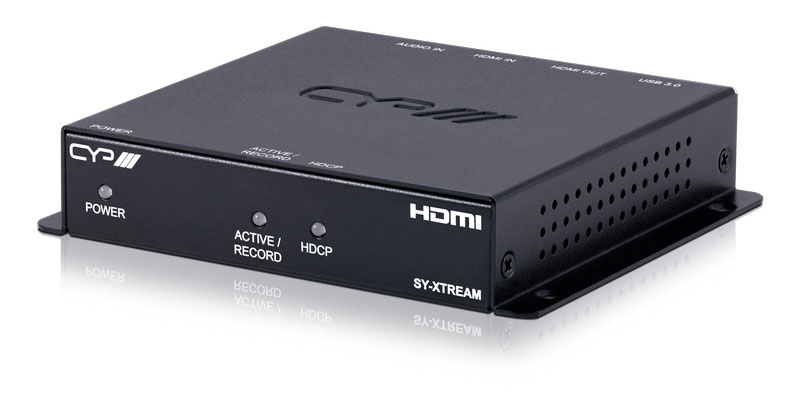

The SY-XTREAM HDMI to USB video capture recorder can simultaneously distribute video resolutions up to 18Gbps (600MHz) 4K UHD with HDR while capturing (or re-broadcasting) the audio and video signal at 1080p on a PC/laptop.

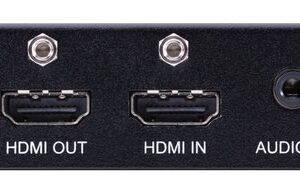

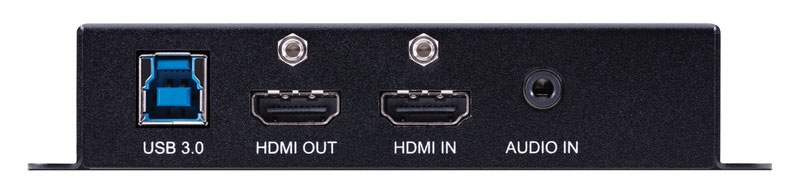

HDMI input and output with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible
HDCP 2.2 and HDCP 1.x compliant
Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output
Supports Deep Color input and output up to 12-bit
Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
Automatically scales 4K sources to 1080p for USB capture
Unit may be powered directly via USB 3.0 (When using USB 2.0, a Y-cable is required to provide additional power)
Supports video timing stabilization to help ensure a reliable and stable USB capture stream
Capturing over USB 3.0 allows uncompressed video and audio data capture (up to 1080p, LPCM 2.0)
Capturing over USB 2.0 requires the application of minimal MJPEG compression to the video and audio data (up to 1080p, LPCM 2.0)
Supports capturing 2 channel digital audio from either HDMI (LPCM 2.0) or the 3.5mm analog audio input (selectable via configuration software)
Compliance with the UAC (USB Audio Class) and UVC (USB Video Class) standards, allows the unit to support most common capture and video streaming software

Features

HDMI input and output with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible

HDCP 2.2 and HDCP 1.x compliant

Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output

Supports Deep Color input and output up to 12-bit

Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output

Automatically scales 4K sources to 1080p for USB capture

Unit may be powered directly via USB 3.0 (When using USB 2.0, a Y-cable is required to provide additional power)

Supports video timing stabilization to help ensure a reliable and stable USB capture stream

Capturing over USB 3.0 allows uncompressed video and audio data capture (up to 1080p, LPCM 2.0)

Capturing over USB 2.0 requires the application of minimal MJPEG compression to the video and audio data (up to 1080p, LPCM 2.0)

Product Description

The SY-XTREAM HDMI to USB video capture recorder can simultaneously distribute video resolutions up to 18Gbps (600MHz) 4K UHD with HDR while capturing (or re-broadcasting) the audio and video signal at 1080p on a PC/laptop. HDMI sources up to 1080p 60Hz are captured without scaling, while 4K sources will be automatically downscaled to 1080p.

A special video timing stabilization feature ensures the USB capture stream won’t lock up or drop, even if the HDMI input source is intermittent or is disconnected. Digital stereo audio from either HDMI (LPCM 2.0) or the 3.5mm analogue audio input (selectable within the configuration software) is captured along with the HDMI video source.

The UAC (USB Audio Class) and UVC (USB Video Class) standards are adhered to for USB capture meaning the SY-XTREAM HDMI to USB video capture recorder supports the more popular video capture, chat, and/or streaming software, including the Free Open Broadcaster Software (OBS) streaming software (available for Windows PC, macOS and Linux). Note: Availability of and access to the controllable features of the SY-XTREAM depend on the capture software used.

Powered from a USB 3.0 port, the SY-XTREAM does not require an external power supply reducing the number of cables to manage. However, when connected via USB 2.0 a Y-cable is required in order to deliver the necessary power.
