CYP17878
Streaming and Recording System
CYP IP-XTREAM-R records and simultaneously live streams content and events to YouTube, Facebook or Twitch.

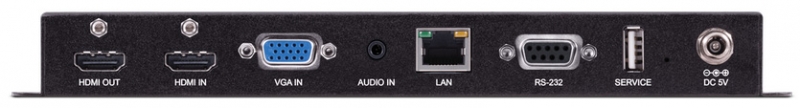

- 1 HDMI input ,1 VGA input and 1 HDMI output (for local monitoring) are supported
- HDCP 1.x and HDCP 2.2 compliant Note: HDCP encrypted sources cannot be streamed over the Internet and will be blacked out
- HDMI input/output supports resolutions up to 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit)
- VGA input supports resolutions up to WUXGA (1920×1200@60Hz)
- Advanced H.264 video streaming and recording is provided at QVGA (320×240), VGA (640×480), 720p, or 1080p at up to 60fps
- Recorded video can be stored on the locally inserted SD card, USB storage, or to a designated network drive supporting file system FAT32, EXFAT, NFS, and CIFS
- Can act as a streaming server (using RTP/RTSP protocols) or streaming client (using the RTMP protocol)
- Audio embedding and mixing support with the analog stereo audio input Note: Analog audio can only be mixed with LPCM 2.0 audio from the HDMI source.
- Integrated support for live streaming to Facebook, YouTube or Twitch channels
- On screen countdown timer and text overlays are supported Automatic input switching and downscaling function converting UHD video content (up to 4K@60Hz) down to 1080p or lower for live video broadcast
- Generates 4 simultaneous streams from the same video source (1080p@60fps, 1080p@30fps, VGA@30fps, QVGA@30fps) for easy system integration at multiple bandwidth targets
- Advanced EDID management including Internal , External & User configured EDID selections
Features
1 HDMI input ,1 VGA input and 1 HDMI output (for local monitoring) are supported
HDCP 1.x and HDCP 2.2 compliant Note: HDCP encrypted sources cannot be streamed over the Internet and will be blacked out
HDMI input/output supports resolutions up to 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit)
VGA input supports resolutions up to WUXGA (1920×1200@60Hz)
Advanced H.264 video streaming and recording is provided at QVGA (320×240), VGA (640×480), 720p, or 1080p at up to 60fps
Recorded video can be stored on the locally inserted SD card, USB storage, or to a designated network drive supporting file system FAT32, EXFAT, NFS, and CIFS
Can act as a streaming server (using RTP/RTSP protocols) or streaming client (using the RTMP protocol)
Audio embedding and mixing support with the analog stereo audio input Note: Analog audio can only be mixed with LPCM 2.0 audio from the HDMI source.
Integrated support for live streaming to Facebook, YouTube or Twitch channels
On screen countdown timer and text overlays are supported Automatic input switching and downscaling function converting UHD video content (up to 4K@60Hz) down to 1080p or lower for live video broadcast
Product Description

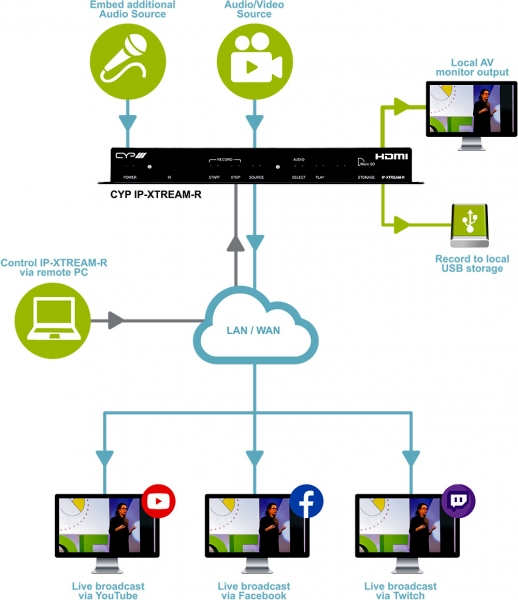

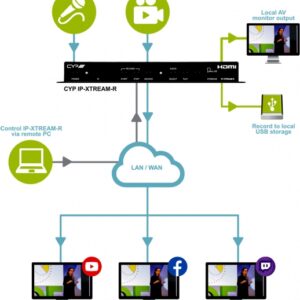

The CYP IP-XTREAM-R provides simultaneous recording and live streaming of events, lectures, webinars and more to online broadcasting platforms such as YouTube, Facebook or Twitch.
As an effective solution to deliver live events, training, seminars and sermons to a remote audience, the IP-X-TREAM-R delivers local presentations or content in 4k UHD scaled to various resolutions appropriate to each particular online video platform.
This new CYP streaming device provides on-board content recording at the touch of a button to a local SD card, USB storage device or a designated network drive (supporting file system FAT32, EXFAT, NFS and CIFS).
An on-board audio mixer function is also included, allowing an external audio source to be mixed with the embedded audio of your HDMI source.
How to record and live stream video content to YouTube, Facebook or Twitch at the same time:
Applications:
- Seminars and training events
- Sermons and religious ceremonies
- College/University Lectures
- Product launches
- Esports & Gaming broadcasts
