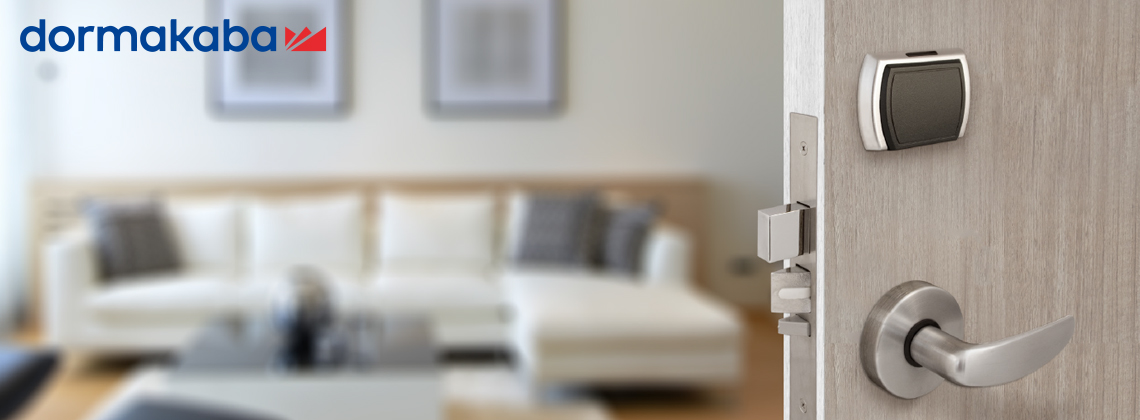

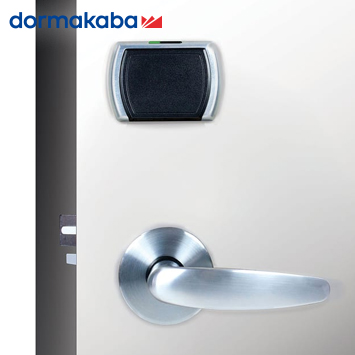

The dormakaba Quantum IV electronic door lock.
The Quantum IV electronic door lock offers dormakaba’s unique award winning two-piece modular design with an RFID reader for a sleek and elegant appearance combined with superior lock performance. The lock accepts Mifare Plus credentials for enhanced functionality, and works with dormakaba access management software.
Mobile Access
The Quantum IV uses Bluetooth Low Energy (BLE) and can operate using the dormakaba Mobile Access Solutions, allowing guests to use their mobile device as their hotel room key.
Applications
- Suitable for small to very large scale hotels
- Easily replaces existing mechanical or electronic doorlocks throughout a facility
- Access control for guest rooms, common areas as well asback-of-house
Security Features
- High security and tamper-proof design
- 1″ solid deadbolt (optional auto deadbolt)
- Staff monitoring – RFID Keycard audits

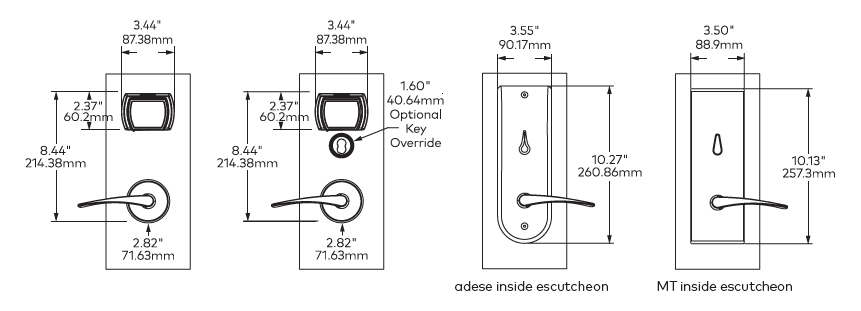

- Tracking mortise for door ajar reporting (ädəse standard,MT optional)
- Emergency access: emergency key, mechanical key andelectronic override
- Usage detail stamp in real-time with date/hours/minutes
Low Maintenance
- AA alkaline; Batteries last up to 2 years
- Low battery indicator alerts staff
- Lock programming and audit records are not erasedduring battery replacement
- Operates with a completely sealed contactless reader
Access control management software
The QuantumIV lock is supported by dormakaba’s access management software solution for both guest and staff access. Optionally, choose dormakaba’s online access management solution for superior control and monitoring.
Download Brochures and Data Sheets
| Mechanical Features | |||
| Description | |||
| Electronic mortise lockset with 1″ (25.4mm) throw deadbolt and 5/8″ (15.9mm) dead-locking latch bolt | |||
| Handing | |||
| Factory-handed mortise (left, right, left reverse, right reverse) | |||
| Available Finishes | |||
| Bright Chrome, Satin Chrome, Bright Brass, Satin Brass, Satin Nickel, Dark Mahogany , Black | |||
| Door Thickness | |||
| 1¾” (44.5mm) to 2⅛” (53.98mm) for standard product | |||
| Shipping Weight | |||
| Approximately 8.0 lbs (3.62 Kg) with hardware | |||
| Housing Construction | |||
| Escutcheons: stainless steel/brass; Levers: brass, zinc, or stainless steel | |||
| Standard Backset | |||
| 2¾” (69.9mm) from door edge to lever | |||
| Locking Options | |||
| ANSI lock case with 1¼” or 1” faceplate | |||
| Online Configurations | |||
| Messenger LENS Ready | DAJ mortise (ANSI lock case) Standard (stand alone) inside escutcheon | ||
| Messenger LENS Online |
Lock controller board with Messenger LENS capability ; DAJ mortise (ANSI lock case) Inside escutcheon equipped with Messenger LENS module |
||
| Mobile Access Option | |||
| BLE compatible | Standard Lock. Upgradeable to BLE by adding BLE connector cable, end cap and BLE module | ||
| BLE ready | Upgradeable to BLE with BLE module | ||
| BLE enabled | End cap with BLE module included, no further upgrades needed | ||
| Lock Operation | |||
| Interrogation | Obtain key usage reports from the lock by using a handheld unit at the door, or remotely using Messenger LENS | ||
| Keycards | Configurable expiration dates and can be made up to 10 days in advance without canceling current or arriving guests | ||
| Passage Mode | Set by authorized keycard or Messenger LENS system. Can also be configured to perform an automated/pre-defined passage mode time. | ||
|
RFID Credentials Specifications |
Two credential format options available: Mifare Classic or Mifare Plus- Mifare Classic (4byte NUID): Guest Keycards (Mini), Staff (4K & 1K) – Mifare Plus: Guest Keycards (Mifare Ultralight C, 7 Byte UID), Staff Keycards (Mifare Plus S 2K, 4 Byte NUID, Mifare Plus S 4K, 4 Byte NUID) |
||
| Audit Trail | Up to 4,000 events | ||
| Disability Feature | RCU readers required to interface with automatic power operated doors for special openings | ||
| Certifications & Testing | |||
| AccessibilityStandard | ADA compliant levers (Code of Federal Regulations 28 CFR Part 36 – 1994 “ADA Standards for Accessible Design”) | ||
| BHMA/ANSI |
Certified Grade 1 “ANSI/BHMA A256.13-2012 Standard for Mortise Locks and Latches,” and “ANSI/BHMA A256.25- 2013 Standard for Electrified Locking Devices.” |
||
| Fire Rating |
Listed for pre-prepared manufactured doors and certified for retrofitting existing doors by UL for use on fire doors having up to a three-hour rating. a. U.L. Certification: GWVW.R12071 “Accessories for Single-point Locks and Latches and Fire Exit Hardware.” (UL 10B and 10C) b. U.L. Listing: GYQS.R11247 “Electrically Controlled Single-point Locks and Latches.” (UL 10B and 10C) c. Also classified in accordance with Uniform Building Code Standard 7-2, “Fire Test of Door Assemblies” (1997) |
||
| Electronics | FCC Part 15 Class A and CE directive 89/336/EEC compliant | ||
