Vandal Resistant SIP Intercom with Video

Akuvox17551

Vandal Resistant SIP Intercom with Video

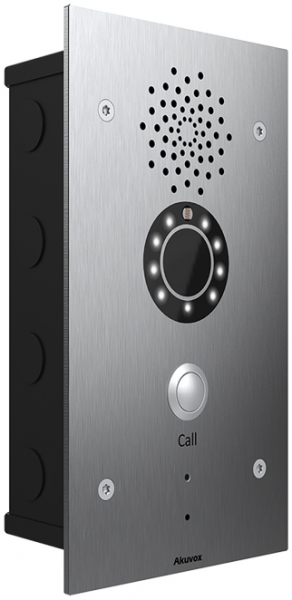

The E21V Vandal resistant Intercom from Akuvox combines elegance and simple design with robust material to safeguard this product in public spaces.Audio and video communication.

Vandal-resistant with 316 grade stainless steel body
Outdoor-rated with IP67 grade microphone and IP66 grade speaker (overall IP65 rated)
Premium audio and video quality
116° wide-angle 2MP camera with automatic lighting
SIP/ONVIF/PoE
Outdoor-rated with IP67 grade microphone and IP66 grade speaker (overall IP65 rated)
Vandal resistant all-aluminium body
Flush or Surface mountable (back boxes sold separately)

Features

Vandal-resistant with 316 grade stainless steel body

Outdoor-rated with IP67 grade microphone and IP66 grade speaker (overall IP65 rated)

Premium audio and video quality

116° wide-angle 2MP camera with automatic lighting

SIP/ONVIF/PoE

Outdoor-rated with IP67 grade microphone and IP66 grade speaker (overall IP65 rated)

Vandal resistant all-aluminium body

Flush or Surface mountable (back boxes sold separately)

Product Description

The E21V Vandal-resistant Intercom from Akuvox combines elegance and simple design with robust material to safeguard this product in public spaces. Audio and Video is featured for added security where visual two-way communication is ideal.

The Akuvox E21V robust Intercom features single call-button, colour camera and audio communication with high quality IP-rated microphone and loudspeaker.

The E21V provides immediate communication where security is a focus and can be used either indoors or outdoors thanks to an ingress protection rating of IP65.

This IP-connected professional intercom door station allows complete system control and distribution over LAN, WAN and web networks and is PoE (Power over Ethernet) compatible for greater installation flexibility.

Flush or Surface Mountable:

This unit can be flush-mounted (E21XF) or surface-mounted (E21XS Silver or E21XSBLK Black) using back box options sold separately.

If you have any questions on the range, please call our inhouse sales team on T. 0115 977 0075 or download our Akuvox product catalogue here.

– – – – – – – – – – – – – –

Interface Features
• 2xRJ45 10/100 Mbps Ethernet ports
• Input relay: 2 relays for alarm alert

• Output relay: 2 relays for door opener

SIP Features
• SIP v1(RFC2543), SIP v2(RFC3261)
• Line: 2 SIP accounts

Audio Features
• 1 built-in microphone with IP67 rating
• 1.5W speaker with IP66 rating
• Codec: G.711a, G.711μ, G.722, G.729 and LPCM
• Speech quality: 7 kHz
• Echo cancellation
• Voice activity detection

• Comfort noise generator

Video Features
• Viewing angle: 116° (H) / 60° (U)
• Resolution: up to 1920 x 1080p
• Codec: H.264, MPEG-4 and MJPEG
• Support live stream and RTSP

• Compliance with ONVIF

Phone Features
• Auto-answering
• Volume control
• Direct IP calling
• Multi-language support

Application Scenarios
• Education: campuses
• Healthcare: hospitals, medical centers
• Logistics & Transportation: airports, parking facilities
• Industries: industrial parks of Manufacturing, Energy, Metal & Mining, Chemical industries
