CYP19871
USB 2.0, Audio and LAN over CAT Extender

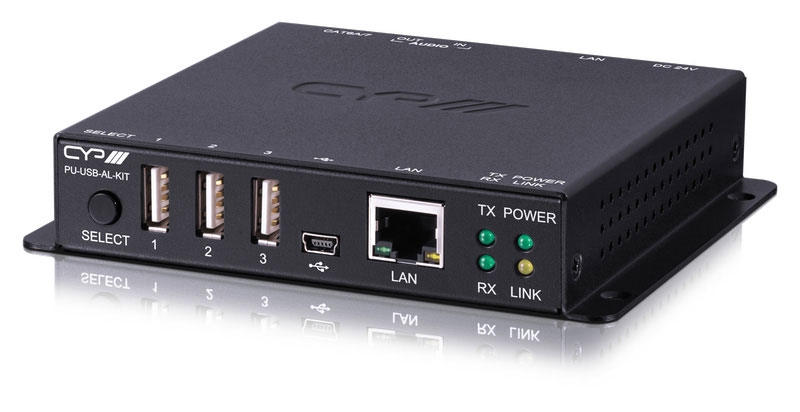

The PU-USB-AL-KIT Transceiver provides a straightforward point-to-point solution for extending USB 2.0, LAN and Analogue Audio signals over CAT6/7 cables using HDBaseT.
- USB 2.0, Analogue Audio & LAN extension up to 100m over CAT6/7
- Supports auto-configurable USB port, capable of acting as either host or device
- All USB device ports are active simultaneously, allowing for the connection of up to 6 USB 2.0 device when used in a point-to-point system
Features
USB 2.0, Analogue Audio & LAN extension up to 100m over CAT6/7
Supports auto-configurable USB port, capable of acting as either host or device
All USB device ports are active simultaneously, allowing for the connection of up to 6 USB 2.0 device when used in a point-to-point system
Product Description
The PU-USB-AL-KIT Transceiver is ideal for extending USB peripherals from a conference / teaching scenario to wider video conferencing platforms such as Zoom, Microsoft Teams and Skype for Business.
This kit provides a straighforward point-to-point solution for extending USB 2.0, LAN and Analogue Audio signals over CAT6/7 cables using HDBaseT.
The PU-USB-AL-KIT kit comprises two PU-USB-AL units connected via CAT6/7 which can be extended up to 100m. Power management is simple as either side of the installation can provide power via Bi-directional PoC (Power-over-Cable).
Typically a system can support one USB host and up to 6 USB devices: 3 on the transmitter and 3 on the receiver side. The USB host is automatically located by the device; alternatively the device can be specified via the front panel.

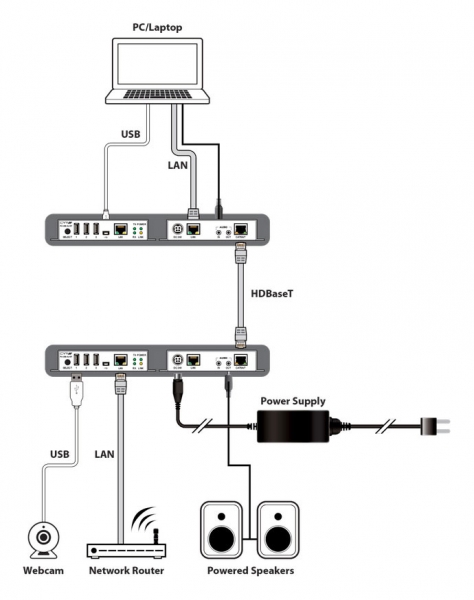

Typical System Schematic:
