TSD Mono Power Amplifier
Part of the ‘TSD’ Time Saving Device range, Atlas IED’s new TSD-PA20VG is a cost-effective, highly compact single channel power amplifier for 4ohm and…
- 20W Mono Amplifier
- 4Ω/25/70/100v Output
- One (1) Balanced Input
- Removable Level Control with 'Set & Forget' Security Cover
Features
- 20W Mono Amplifier
- 4Ω/25/70/100v Output
- One (1) Balanced Input
- Removable Level Control with 'Set & Forget' Security Cover
- Peak Indicator LED
- Input Signal Indicator LED
- Cable Management System
- Multiple Mounting Configurations
- Separate Ground Connections

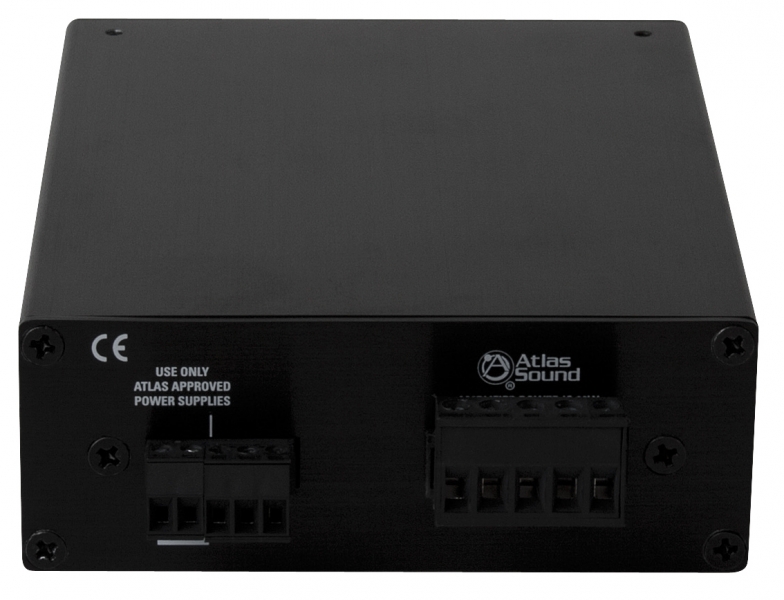

- Removable Phoenix Style Input/Output connectors
- Meets most energy standards
- Compact Chassis Design
Product Description
Part of the ‘TSD’ Time Saving Device range, Atlas IED’s new TSD-PA20VG is a cost-effective, highly compact single channel power amplifier for 4ohm and 100v line loudspeaker systems.
The TSD-PA20VG is an ideal compact amplifier for small PA systems in a wide range of applications such as churches, restrooms, foyers, classrooms and boardrooms.

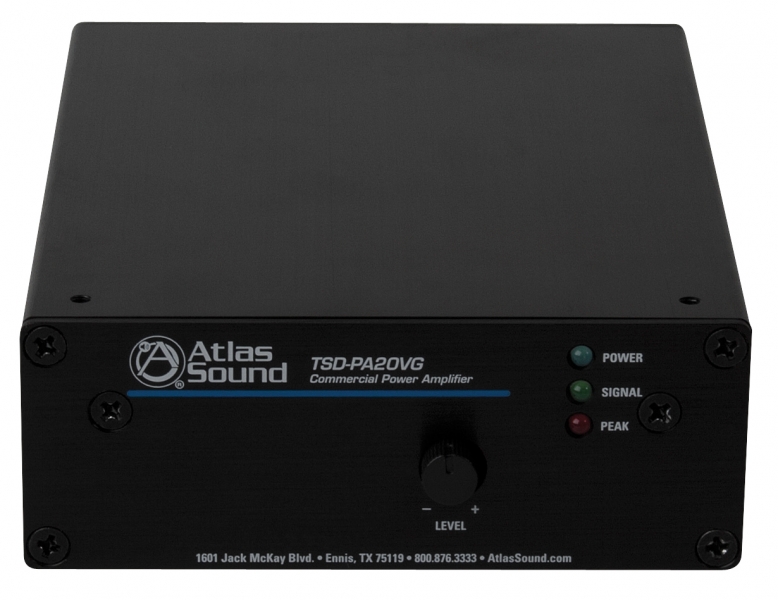

Output gain is controlled by a volume control on the front panel which is removable to allow for the addition of a tamper-resistant cover.
Audio Applications:
- Projector Amplifier
- Zone Amplifier
- Small Paging Systems

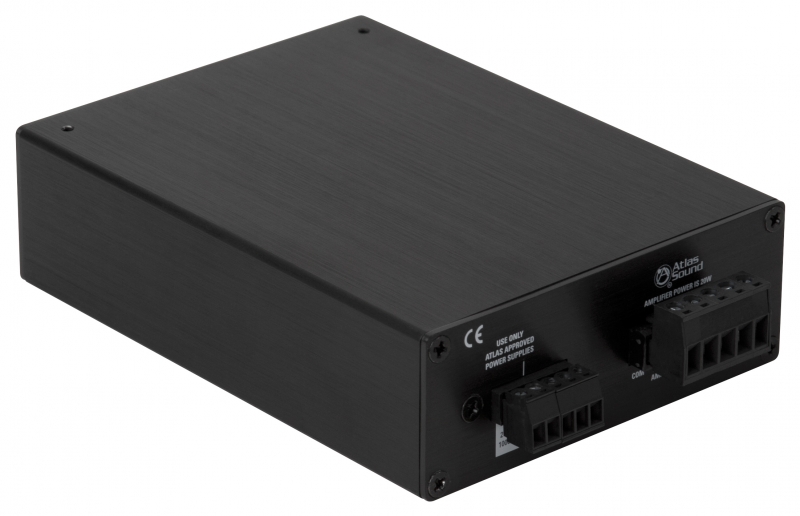

The unit is housed in a highly compact, robust metal enclosure.
Use with T4818ST Plugtop Power Supply.
