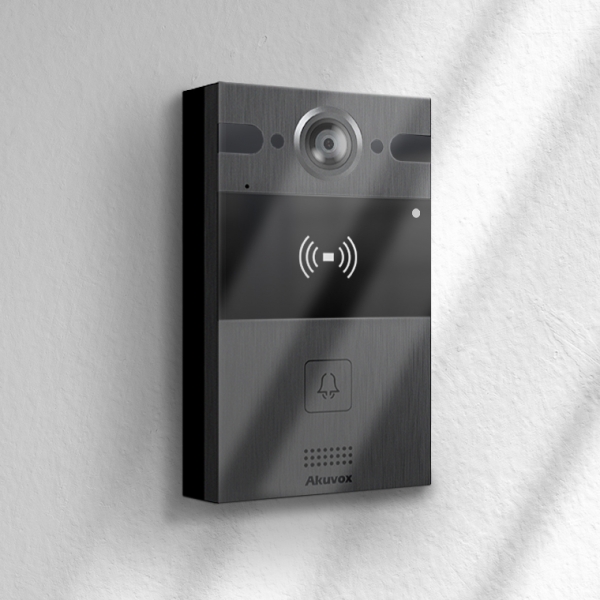

SIP Intercom with one Button (Video & Card reader)

Akuvox17552

SIP Intercom with one Button (Video & Card reader)

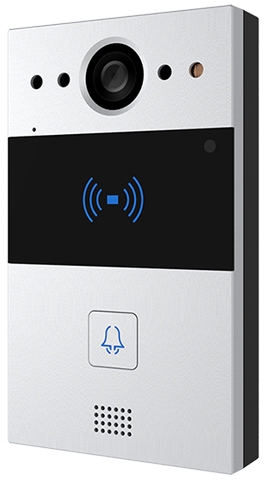

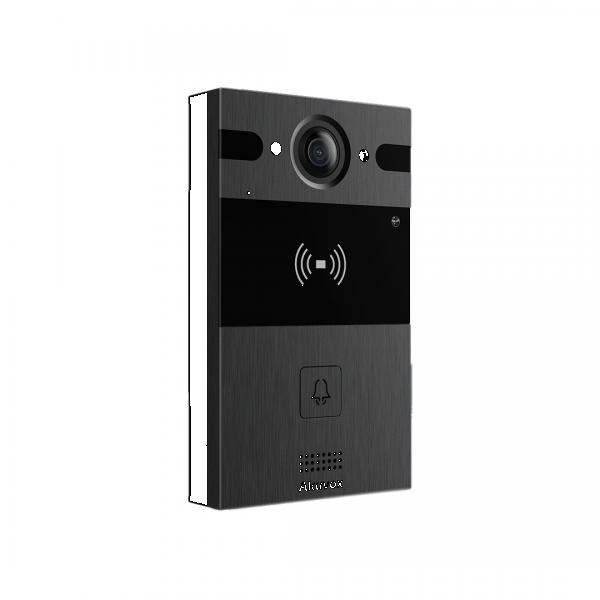

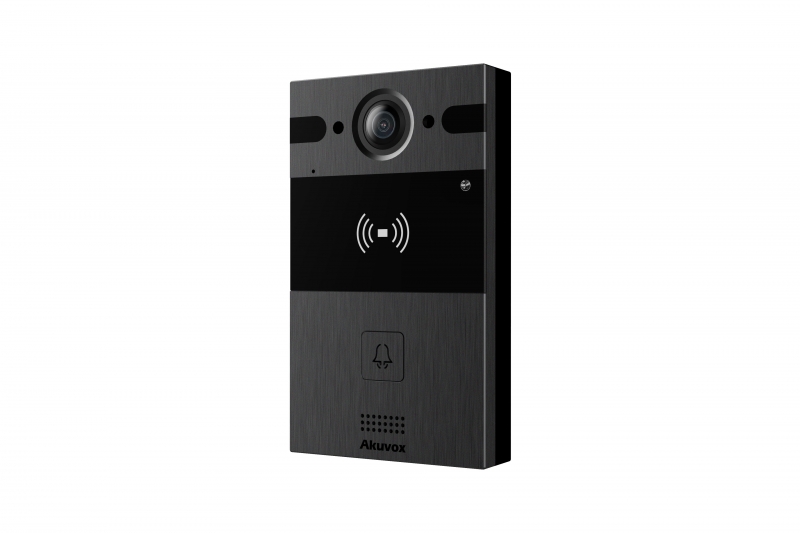

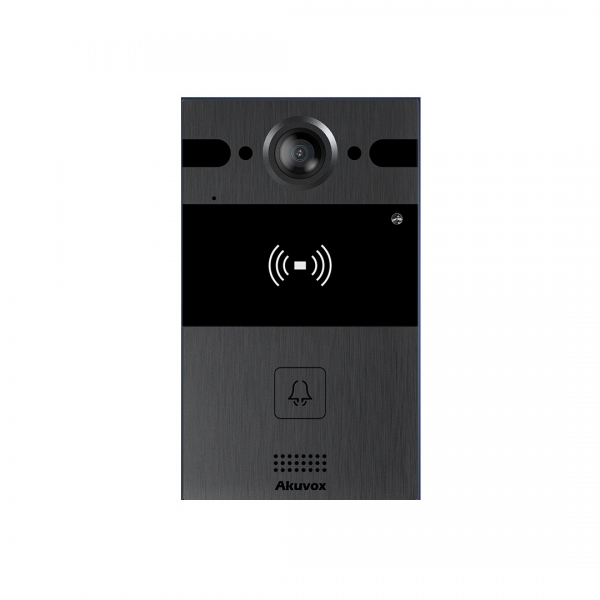

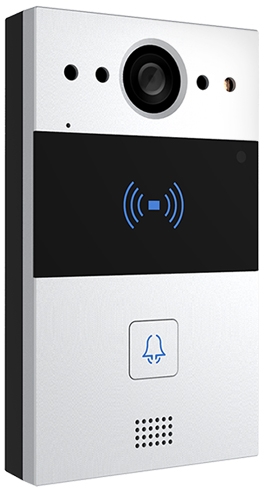

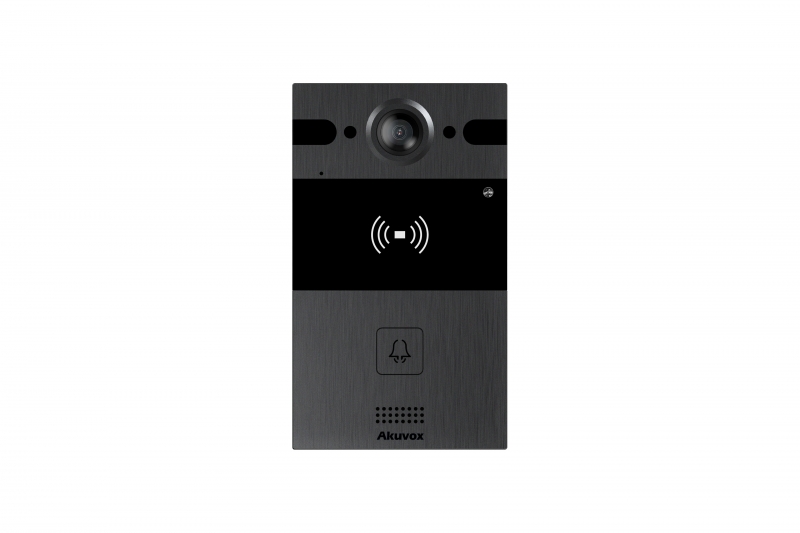

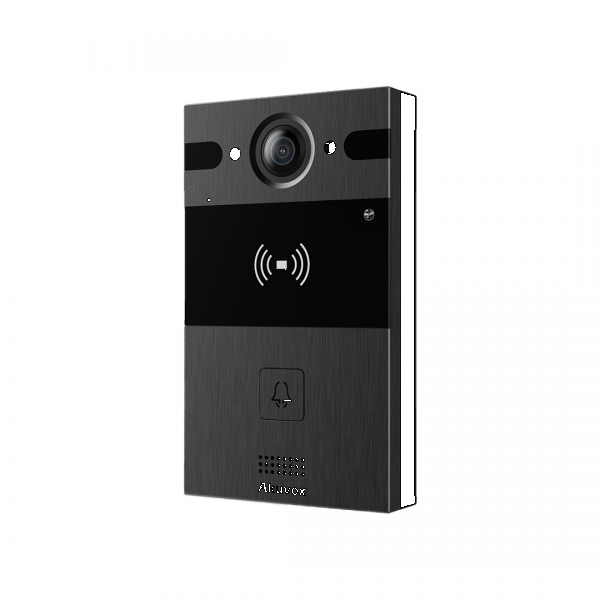

Akuvox R20AS Compact SIP Intercom featuring 1 call button with audio video function, RFID card reader for swift access for residents. Supplied with surface mount backbox.

IP connected Door Intercom
Single Call Button
Integrated RFID Card Reader
IP65 protection rating
Wiegand output for integration with 3rd party door release
Complies with SIP & ONVIF
Wide-angle camera: Horizontal 120°, Vertical 65°
PoE (IEEE802.3af, Power-over-Ethernet)
Two-way audio communication over IP networks with Echo Cancel feature
Complies with SIP standard for easy integration in every SIP capable PBXes
Complies with ONVIF standard for easy integration with any network surveillance system

Features

IP connected Door Intercom

Single Call Button

Integrated RFID Card Reader

IP65 protection rating

Wiegand output for integration with 3rd party door release

Complies with SIP & ONVIF

Wide-angle camera: Horizontal 120°, Vertical 65°

PoE (IEEE802.3af, Power-over-Ethernet)

Two-way audio communication over IP networks with Echo Cancel feature

Complies with SIP standard for easy integration in every SIP capable PBXes

Product Description

The R20AS SIP Intercom is a highly-compact, single call button, IP-connected Door Intercom, featuring high resolution colour camera and RFID card reader for swift , secure remote audio/video communication and door entry.

Using the latest IP connectivity technology, Akuvox R20AS enables visual monitoring and one-to-one voice communication between residents & visitors and secure remote access; ideal for multi-dwelling units (MDUs), apartments, entrance gates and unmanned office receptions.

The built-in RFID reader allows for contactless, secure access using RFID cards or keyfobs.

This model is supplied complete with surface-mount backbox.

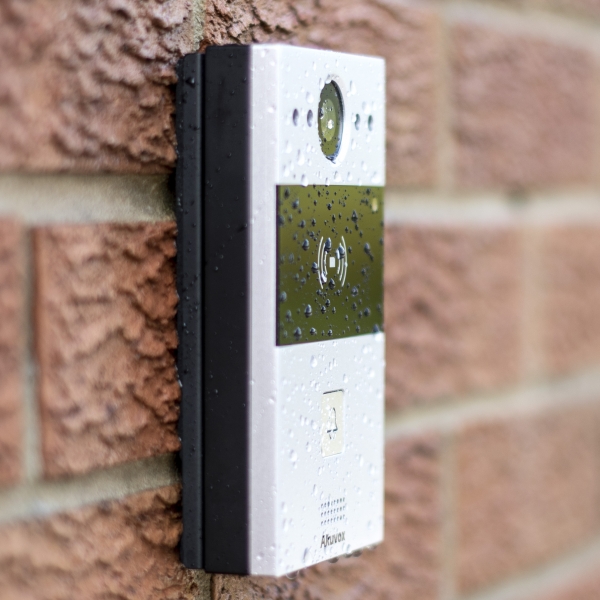

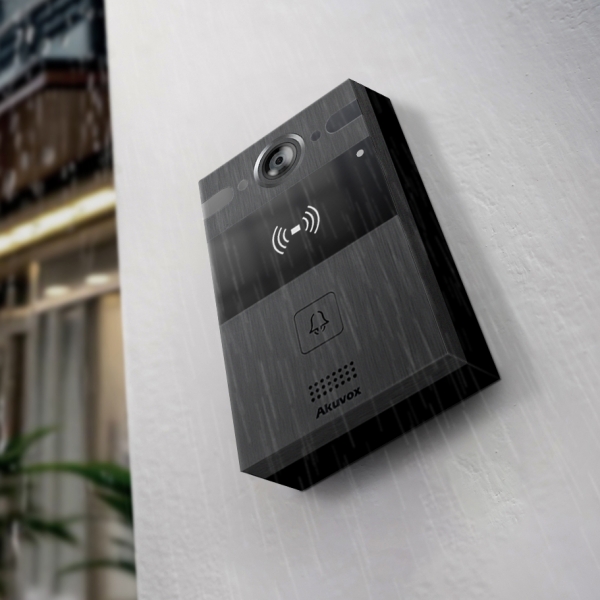

IP65 protection rating allows for internal and external location.

– – – – – – – – – – – – – –

SIP Endpoint
• SIP v1(RFC2543), SIP v2(RFC3261)
• Audio codecs: G.711a, G.711μ, G.722, G.729
• Video codecs: H.264
• Echo Cancellation
• Voice Activation Detection
• Comfort Noise Generator
• Door opener via DTMF post-dial

Video
• Resolution: up to 720p
• Maximum image transfer rate: 720p – 30fps
• High intensity IR LEDs for picture lighting during dark hours with internal light sensor
• Compatible to 3rdPartyVideo components, e.g. NVRs

Door Entry Features
• Relays controlled individually by DTMF tones
• Camera permanently operational
• White balance: auto
• Auto-night mode with LED illumination
• Minimum illumination: 0.1LUX

• Wiegand output for integration with 3rd party door release

Networking
• 1×10/100 Mbps Ethernet port
• Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARPApplication Scenarios
• Office door phone with on-site or hosted IP-PBX
• Remote site entry over Internet
• Apartment/flat intercom with door access control

Specification
