SIP Android Door Phone with Facial Recognition

Akuvox17557

SIP Android Door Phone with Facial Recognition

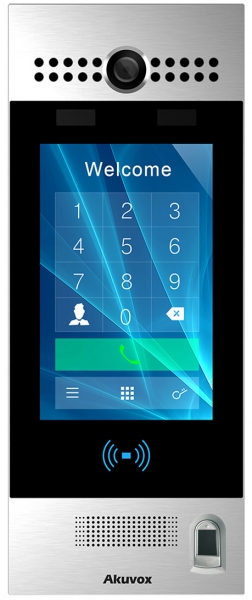

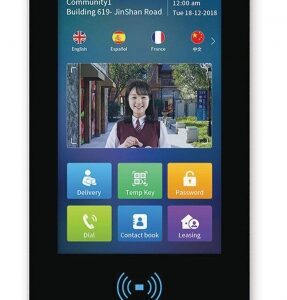

The Akuvox R29C SIP Touchscreen Intercom with touchscreen control panel, dual Cameras, Card Reader, secure infrared face recognition and QR Code scanner for an all-round secure intercom/access system. Finished in Silver.

7-inch large capacitive touch screen (works with gloves on)
Antispoofing face likeness detection
Premium audio and video quality
Real-time entrance monitoring
Remote door opening
Multiple access / authentication methods
Dual cameras: one 120° wide-angle 3MP camera with IR and a second VGA 60° angle 5MP camera

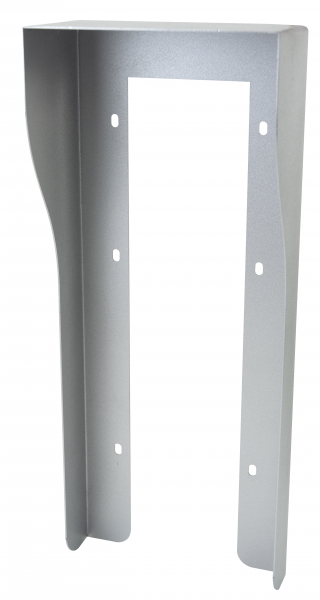

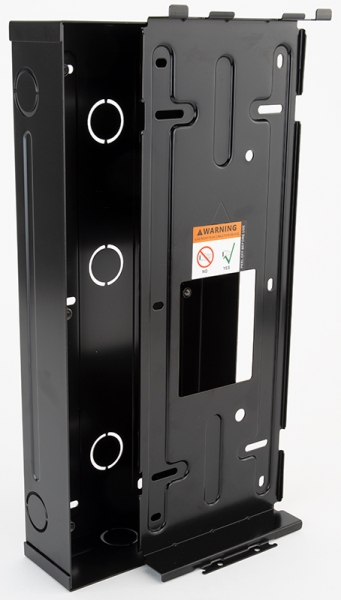

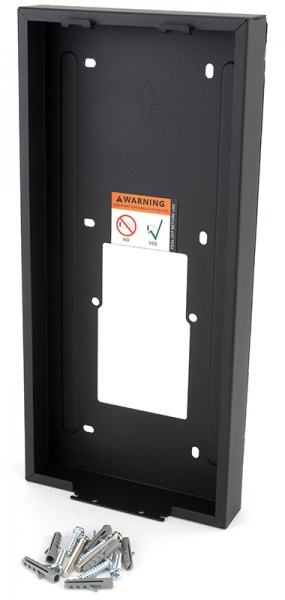

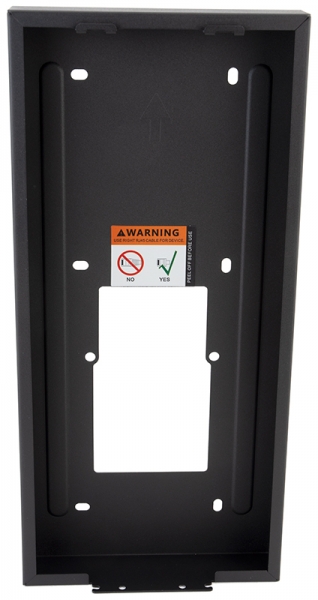

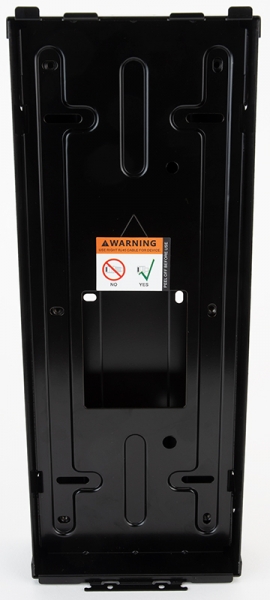

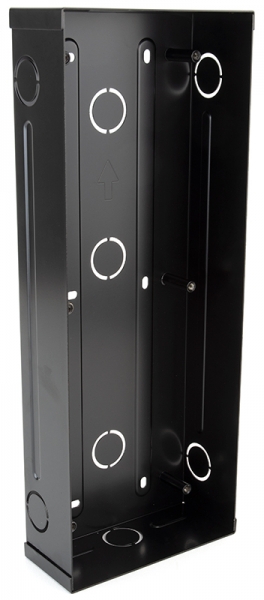

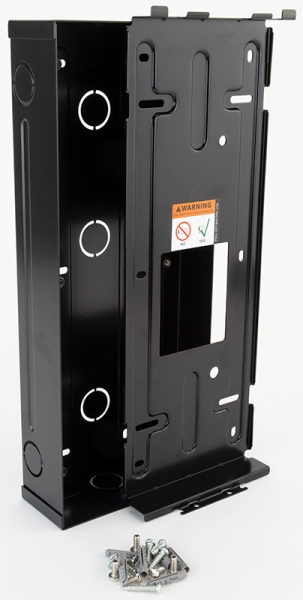

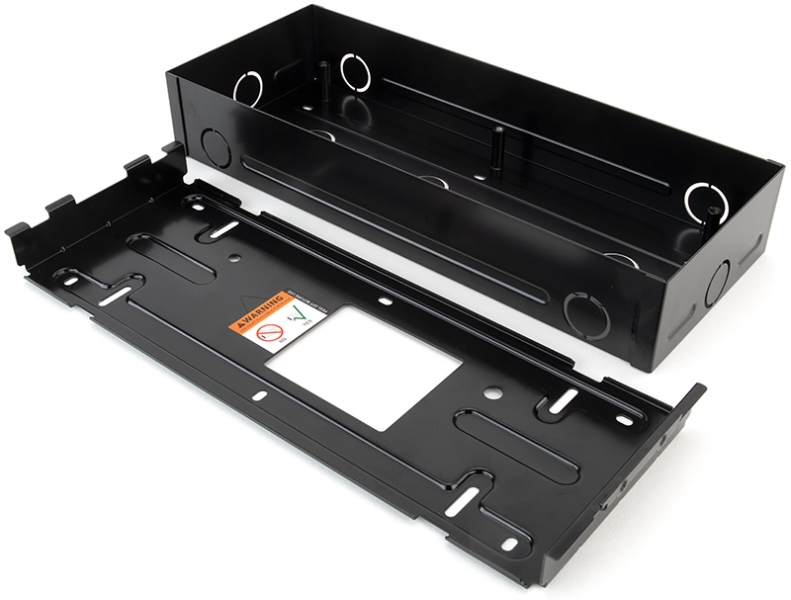

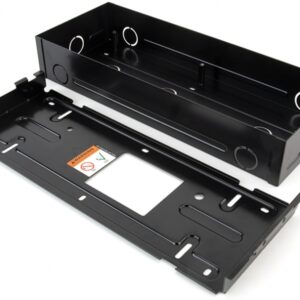

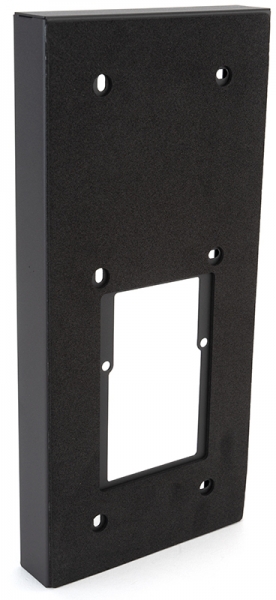

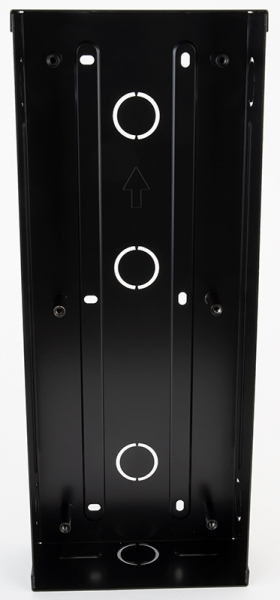

Flush or Surface mountable (back boxes sold separately)
QR Code Scanner for 'single use' access
Android 5.1/SIP/ONVIF/Wiegand/PoE/IP65
Finish - Brushed Steel

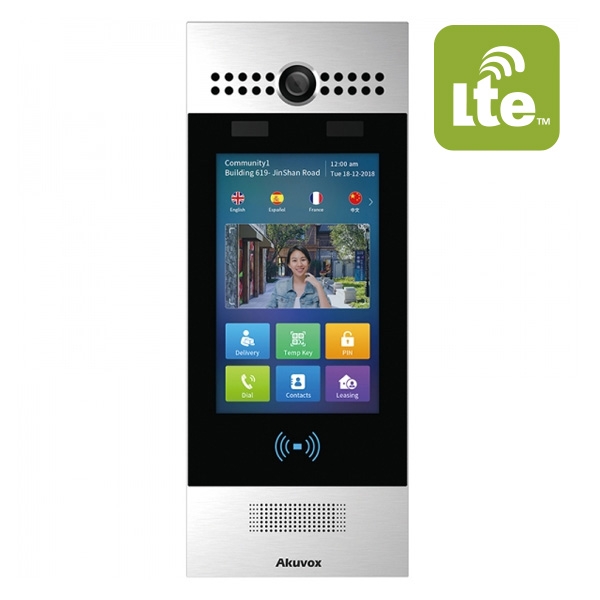

LTE wireless 4G data connectivity (only requires wired power connection)

Colour

Model

Clear

Features

7-inch large capacitive touch screen (works with gloves on)

Antispoofing face likeness detection

Premium audio and video quality

Real-time entrance monitoring

Remote door opening

Multiple access / authentication methods

Dual cameras: one 120° wide-angle 3MP camera with IR and a second VGA 60° angle 5MP camera

Flush or Surface mountable (back boxes sold separately)

QR Code Scanner for ‘single use’ access

Android 5.1/SIP/ONVIF/Wiegand/PoE/IP65

Product Description

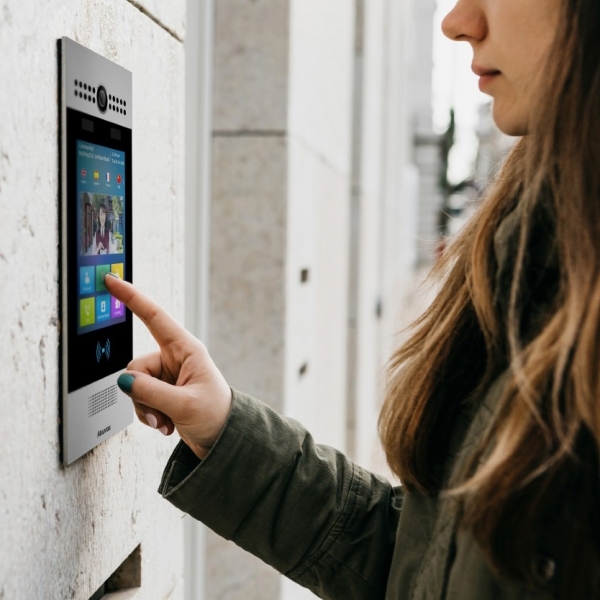

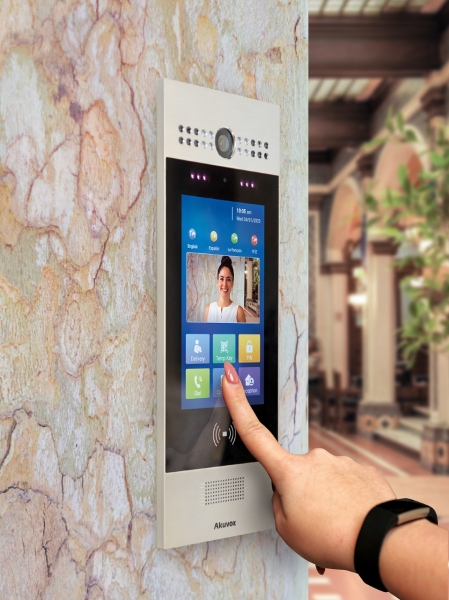

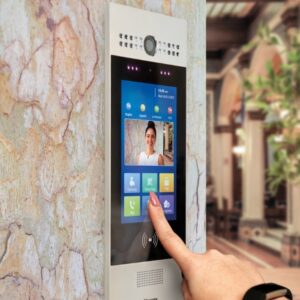

The Akuvox R29C SIP Touchscreen Intercom is one of the most advanced, smart IP door intercom devices on today’s market.

Featuring a high-impact touchscreen interface with intuitive Android-based user interface, this smart door phone device offers a wide range of authentication options for door intercom and access control systems.

The Akuvox R29C Door Intercom is fully-equipped with Dual-cameras, NFC & Bluetooth contactless authentication, RFID Card Reader, secure infrared Face Recognition and QR Code Scanner for an all-round secure, smart intercom/access system.

The R29C features multiple authentication methods for ultimate security and flexibility:

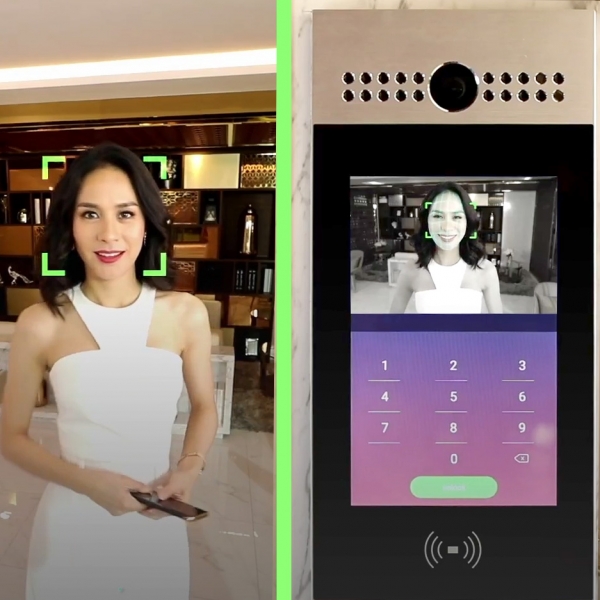

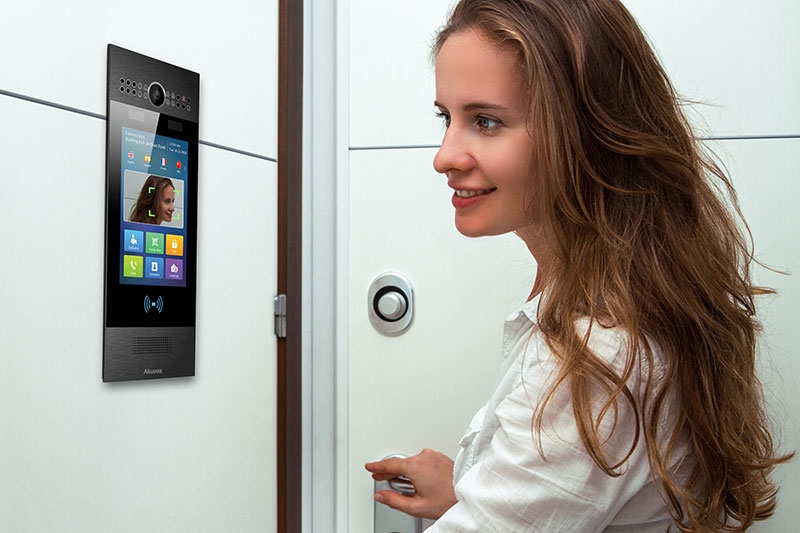

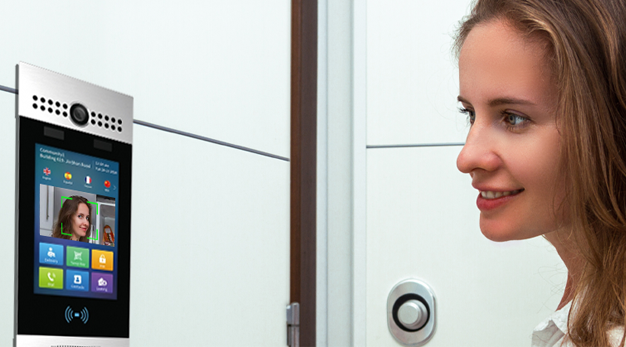

Secure infrared Face Recognition

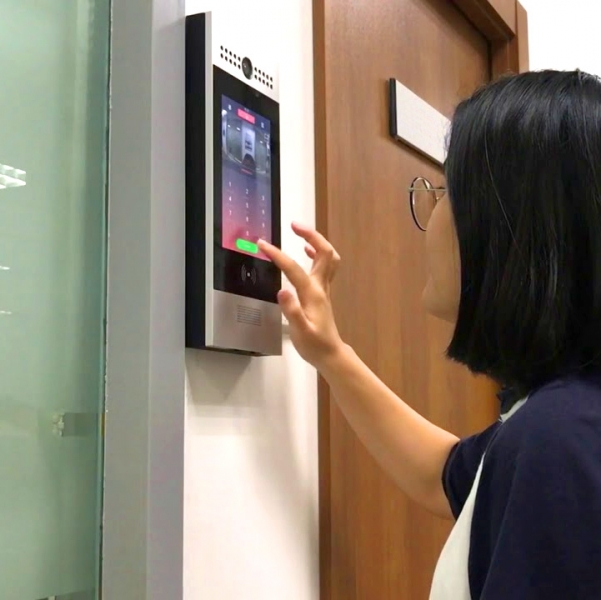

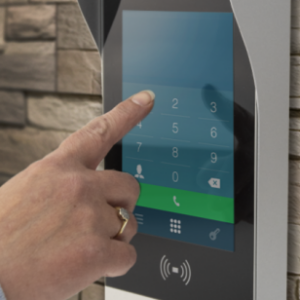

Touchscreen Keypad
Touchscreen Digital Phonebook
NFC & Bluetooth contactless via Smartphone
RFID contactless via ID card or keyfob
QR Code (eg. for one-time access)

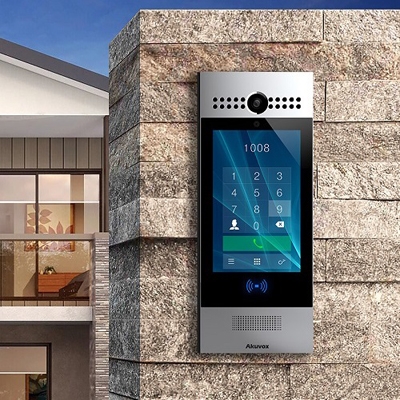

The R29C Intercom can be used for door entrance or gate systems and is IP65 rated for outdoor and high impact areas.

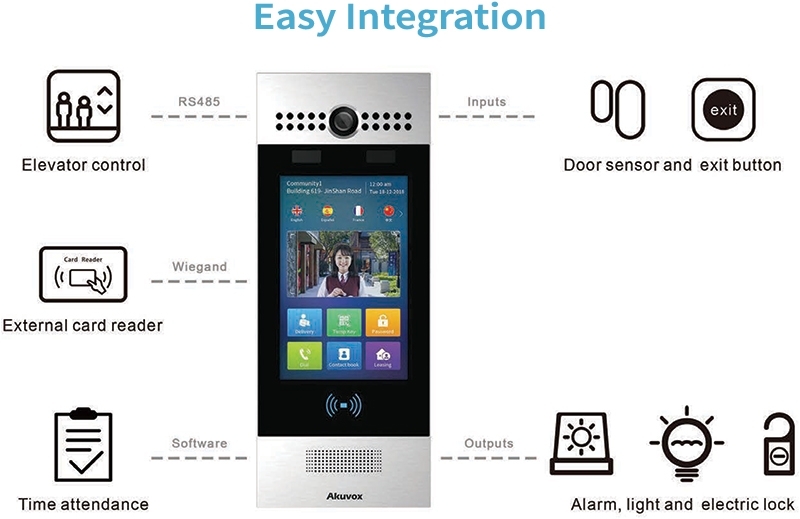

This advanced door entry device also supports ONVIF open standard for effective integration with other 3rd party IP systems and devices such as IP CCTV cameras, NVRs, etc.

– – – – – – – – – – – – – –

SIP Endpoint
• SIP v1(RFC2543), SIP v2(RFC3261)
• Audio codecs: G.711a, G.711μ, G.722
• Video codecs: H.264
• Echo Cancellation
• Voice Activation Detection
• Comfort Noise GeneratorVideo
• Resolution: up to 1080p
• Maximum image transfer rate: 1080p – 30fps
• High intensity LEDs for picture lighting during dark hoursNetworking
• 10/100 Mbps Ethernet connection
• DHCP Client or Static IP
• Network-Time-Protocol

Door Entry Features
• Android OS for any 3rd party software or customization
• Internal DPDT relay for controlling a door opener;
• Relays controlled individually by DTMF tones or messages
• Multi-way Unlock: IC Card, and PassNumber;
• G-sensor for self-defence alarm
• Volume control for speaker
• Gain control for microphone
• Camera permanently operational, not just during calls
• White balance: auto
• Viewing angle: 3MP camera -120°; a second 5MP camera – 60° (For R29C only)
• Auto-night mode with LED illumination
• Minimum illumination: 1LUX (without LED illumination)
• Max call length setting

Application Scenarios
• Office door phone with on-site or hosted IP-PBX
• Remote site entry over Internet
• Apartment / flat intercom with door access control

• Business information or a welcome experience for guests

Specification
