Seminar Room Loop Amplifier Kit

The AKM3 Seminar Room Loop Amplifier Kit with ceiling microphone is designed to provide a hearing aid friendly environment. Featuring a highly sensitive cardioid Audio Technica Pro45 microphone, makes for a sound solution ideal for a meeting/seminar room or a small lecture theatre.

AKM3 Amplifier Kit includes: PDA200E amplifier and a Pro45 microphone
Ideal for electrical contractors - no audio connectors or experience required
PDA200E wall mounted induction loop amplifier includes straightforward internal screw connectors
Wall-mounting metal enclosure for permanent installation Internal drive, level and tone controls
Four inputs - microphone; line/outreach; alert (for doorbells, fire alarms, etc) and 100v line (for PA system connection)
Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed

Features

AKM3 Amplifier Kit includes: PDA200E amplifier and a Pro45 microphone

Ideal for electrical contractors – no audio connectors or experience required

PDA200E wall mounted induction loop amplifier includes straightforward internal screw connectors

Wall-mounting metal enclosure for permanent installation Internal drive, level and tone controls

Four inputs – microphone; line/outreach; alert (for doorbells, fire alarms, etc) and 100v line (for PA system connection)

Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed

Product Description

The AKM3 Seminar Room Loop Amplifier Kit with ceiling microphone is designed to provide a hearing aid friendly environment. Featuring a highly sensitive cardioid Audio Technica PRO45 microphone, makes for a sound solution ideal for a meeting/seminar room or a small lecture theatre.

An APXM wall-mounted microphone socket is included from SigNet’s range of outreach plates.

The AKM3 self-contained kit complies with the Disability Discrimination Act (DDA) which has now been absorbed into the Equality Act 2010 as well as British Standard BS8300 (2009), the Human Rights Act 1998 and the Care Standards Act 2000.

AKM3 Amplifier:

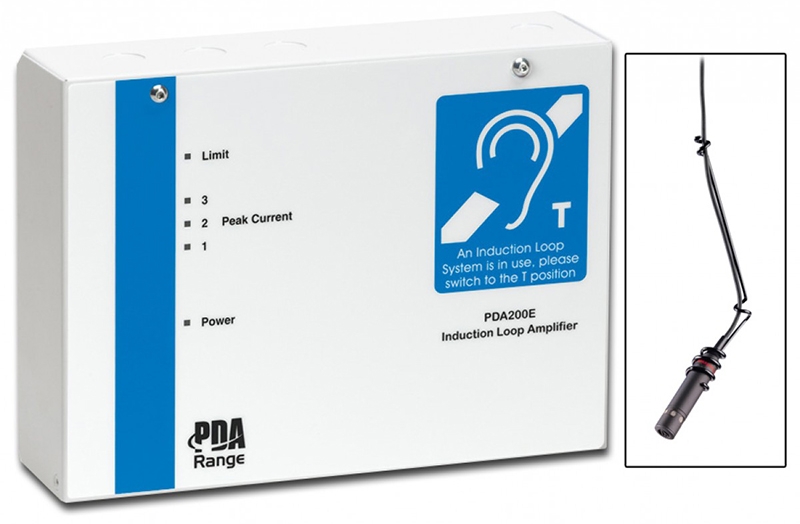

The PDA200E Induction Loop Amplifier in the AKM3 Kit is wall-mounted for a permanent solution, with a metal case and internal screws, which features; an internal drive Level and Tone control, 4x inputs for Microphone, Alert; used in doorbell/fire anouncements, line or outreach and a 100v Line input for PA integration. Installation is made easy and ideal for audio contractors where no audio connectors or installation experience is necessary. When installed correctly the PDA200E meets BS7594 and EN60118-4 standards.

AKM3 Microphone:

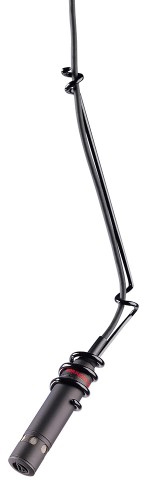

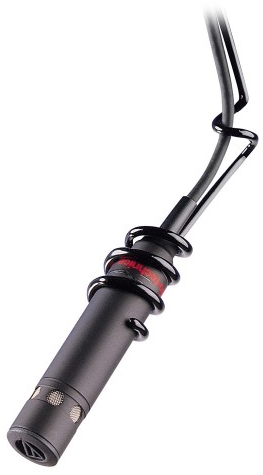

The PRO45 cardioid condenser hanging microphone used with the AKM3 Kit, by Audio Technica, is a Black, robustly constructed and unobtrusive mic, ideal for theatre, speech, orchestra and choir sound reinforcement and recording. The PRO45’s high SPL offers the perfect hanging solution over orchestras and choir’s while the wide-range condenser with thin diaphragm provides more sensitivity and high quality performance. Cable attached: 7.6m between mic and XLRM type conntector.

The AKM3 Kit contents:

• 1x PDA200E Induction Loop amplifier

• 1x Audio Technica PRO45 hanging microphone

• 1x APXM outreach plate

• 1x AFILS fitted sticker label

Signet AKM3 Induction Loop Kit for a Meeting / Seminar Room
Induction loop system for a meeting / seminar room up to 120m². Contains PDA200E induction loop amp, Audio Tecchnica PRO45 cardioid condenser hanging microphone and APXM outreach plate.

Specification
