CYP17545

SDV-FTRX SDVoE 4KUHD (6G) HDMI over Fiber Transceiver

SDV-FTRX is a full HDR and 4K SDVoE HDMI over Fiber Transceiver (10GbE).

Features

HDMI 2.0 and DVI 1.0 compatible
HDCP 2.2 and HDCP 1.x compliant
Can be configured to function as either a Transmitter or a Receiver

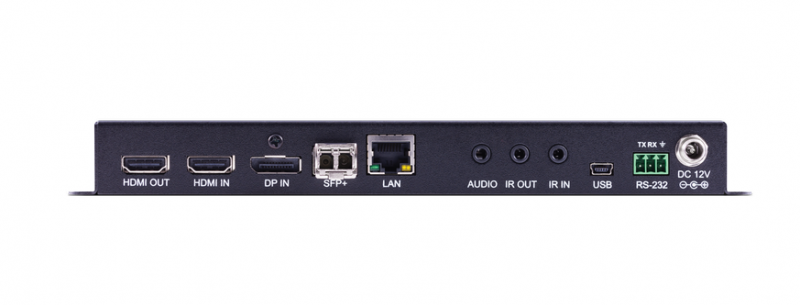

1 HDMI and 1 DisplayPort input
1 HDMI output (Functions as local monitor output in Transmitter mode)
1 analog stereo jack (switchable between input/output mode)
IP switchable with minimum latency (requires optional control center or control software)
Ultra-light compression, lossless for most content
Extension up to 30km (depending on the fiber module used)
Independent breakaway A/V matrix switching (requires optional control center or control software)
Supports pass-through of 10/12-bit HDR sources (Point-to-Point and Genlock mode only)
Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream from HDMI or DisplayPort sources

Product Description

SDV-FTRX is a full HDR and 4K SDVoE HDMI over Fiber Transceiver (10GbE).
