RECESSED, 6 ANGLED 45x45mm MODULE SPACES

6029

RECESSED, 6 ANGLED 45x45mm MODULE SPACES

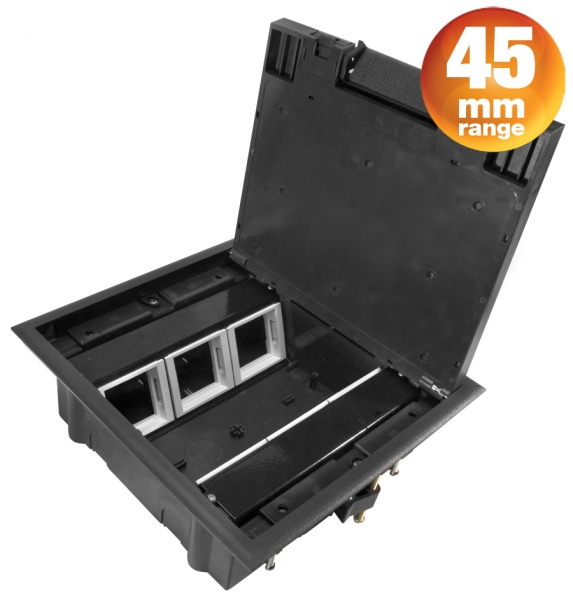

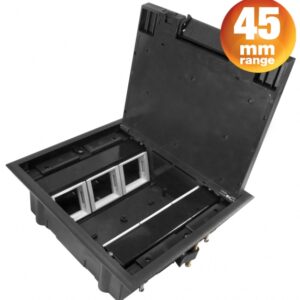

CLB-FLOORBOX is an AV Floorbox featuring six 45x45mm Module spaces for the Conec2 AV Module range

AV Floorbox manufactured from galvanized steel and high impact polycarboate
Galvanised Steel Lid insert for extra strength
Adjustable height clamps for fast, flexible and secure installation

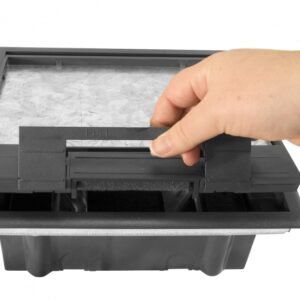

8mm deep carpet insert space
6 x 25mm knockouts for cable and conduit access
For use with Conec2 45mm AV Module Range

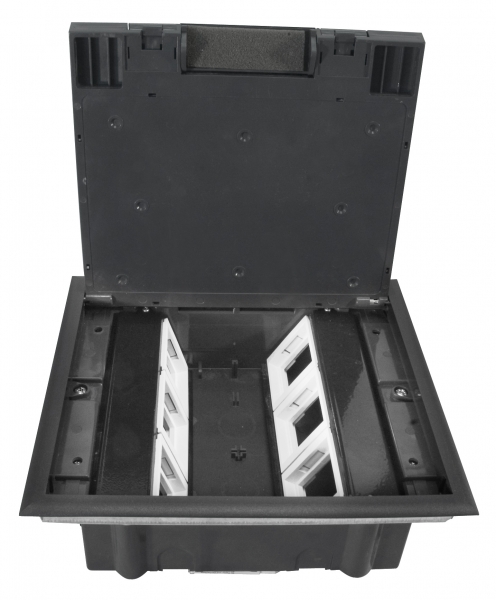

Accepts up to 6 x 45x45mm Modules, 12 x 45x22.5mm Modules or a combination of the two

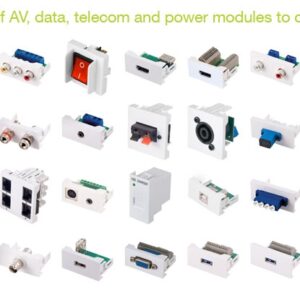

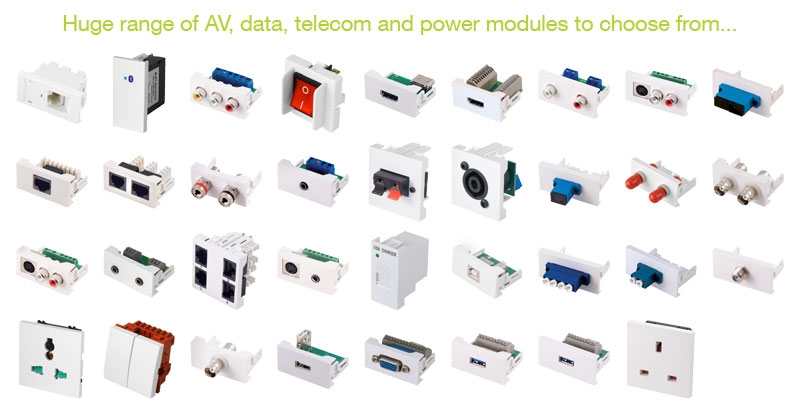

Huge range of Audio Visual, Data, Telecoms and Power Modules available

Features

AV Floorbox manufactured from galvanized steel and high impact polycarboate

Galvanised Steel Lid insert for extra strength

Adjustable height clamps for fast, flexible and secure installation

8mm deep carpet insert space

6 x 25mm knockouts for cable and conduit access

For use with Conec2 45mm AV Module Range

Accepts up to 6 x 45x45mm Modules, 12 x 45×22.5mm Modules or a combination of the two

Huge range of Audio Visual, Data, Telecoms and Power Modules available

Product Description

The CLB-Floorbox is an Audio Visual Floorbox designed to accept up to 12 Conec2 AV Connectivity Modules from the 45mm range.

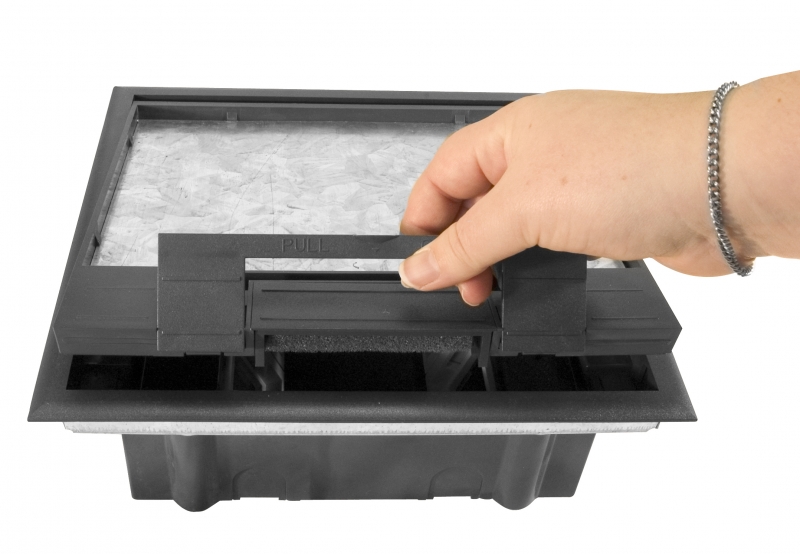

This high quality, strong and discreet AV modular floorbox is manufactured in galvanized steel and high impact polycarbonate and features a carpet insert to ensure it remains in keeping with the surrounding décor.

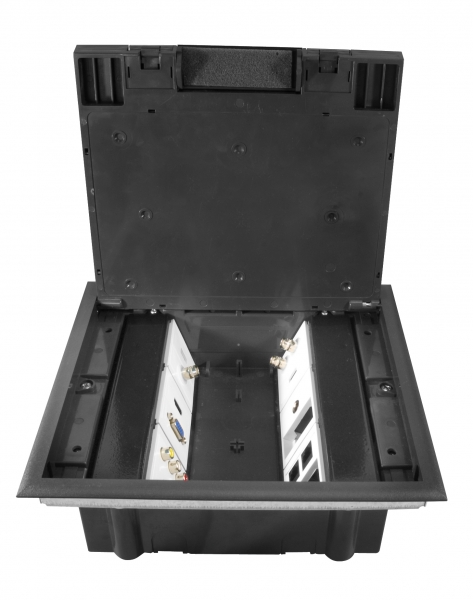

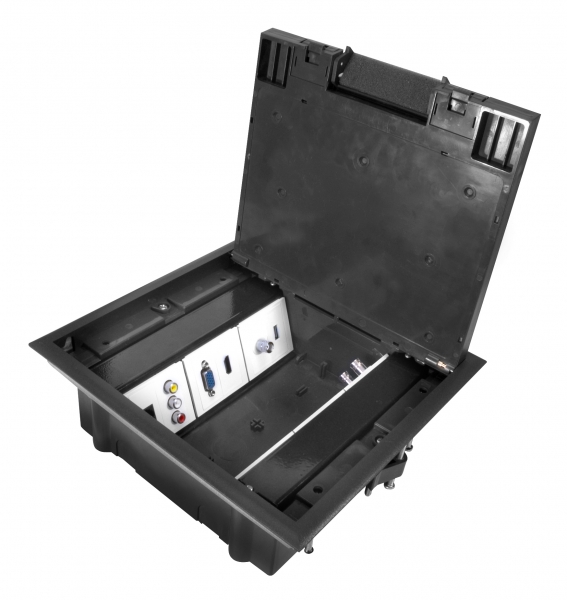

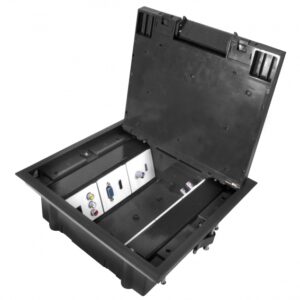

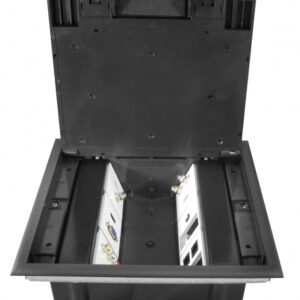

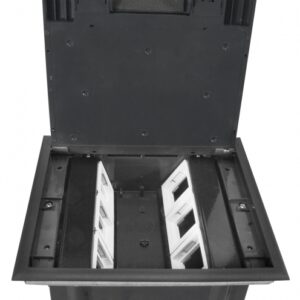

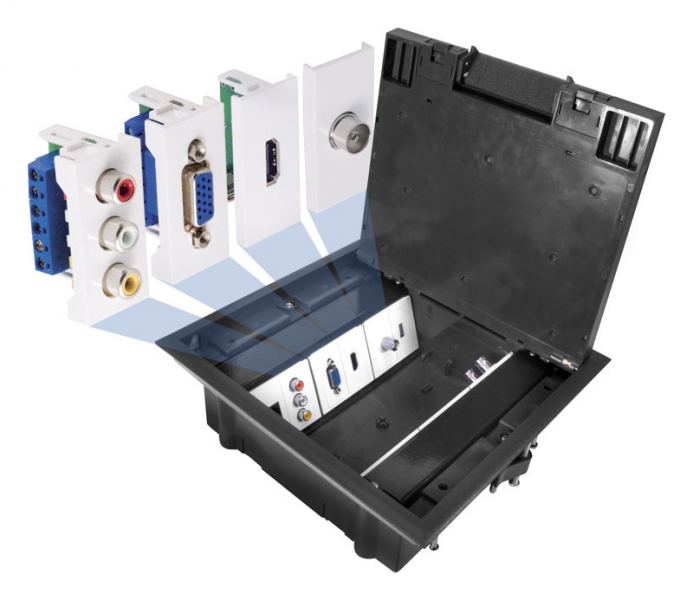

Under the lid, the Conec2 Audio Visual Floorbox features spaces for up to 12 Conec2 45mm AV Modules, from which a huge variety of connectivity modules can be chosen (including HDMI, USB, VGA, RCA, Cat5/6, plus many more).

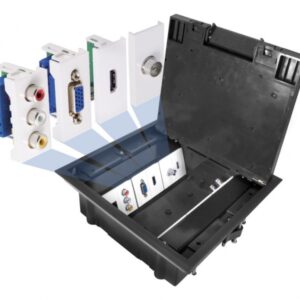

This allows the installer or end user to design and specify their own bespoke AV Floorbox featuring their individual choice of AV, Data, Telecoms and Power Connectors.

The CLB-Floorbox features 6 x 25mm knockouts underneath for cable & conduit access and adjustable fixing clamps for flexible, simple installation.

Use with the Conec2 45mm AV Module range.

Specification
