CYP17030

RAX 6U Rack System

The CYP RAX-600 Modular Rack Mount System, 6U (19″ Rack slot) and contains 15 individual component slots, cable access and teathering points, Front panel lock-off screws and it is easy to install & configure, conforming to standard rack depth and size.

Standard 6U (19 inch) Rack Mount Size
RAX Rack Accessories available
Simple Installation/Configuration
Front Panel Lock Off Screws
Cable Access and Tethering Points
A maximum of 15 individual units may be installed in a single chassis
Optional accessories include: Power supply unit, Cooling fan unit and empty trays for mounting non-standard equipment
Optional cooling fan units can be temperature controlled to automatically turn the fan on or off as needed
Each optional power supply unit provides remote power control and power state monitoring for up to 8 devices plus up to 2 fans

Features

Standard 6U (19 inch) Rack Mount Size

RAX Rack Accessories available

Simple Installation/Configuration

Front Panel Lock Off Screws

Cable Access and Tethering Points

A maximum of 15 individual units may be installed in a single chassis

Optional accessories include: Power supply unit, Cooling fan unit and empty trays for mounting non-standard equipment

Optional cooling fan units can be temperature controlled to automatically turn the fan on or off as needed

Each optional power supply unit provides remote power control and power state monitoring for up to 8 devices plus up to 2 fans

Product Description

The CYP RAX-600 is the 6U high main chassis of the RAX flexible rack-mounting system.

Designed to neatly and efficiently house up to 15 AV products (such as CYP point-to-point transmitters & receivers, break-out boxes and extenders), this 6U high rack chassis is compatible with CYP devices with a ‘full-width’ dimension (see compatible device list below).

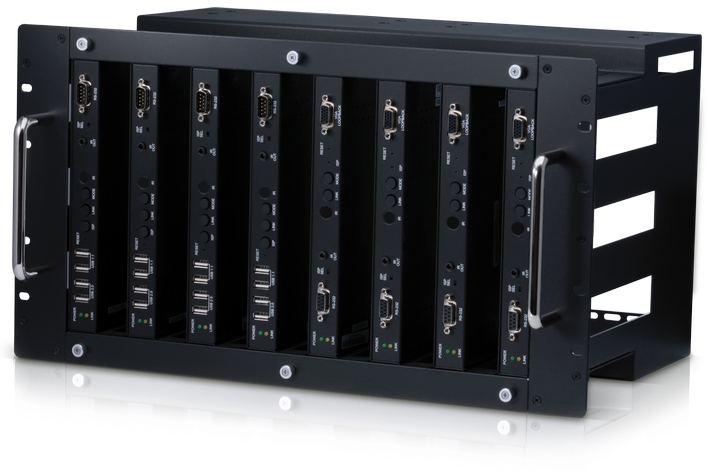

(RAX-600 Model shown. Extender devices sold separately)

The RAX-600 AV chassis accepts up to 15 devices mounted on their edge and provides installers/system integrators with an effective solution to house multiple CYP units in a reduced rack space.

The RAX System is an industry-standard 19″ width, for mounting within a rack or cabinet.

Together with 15 device slots, the CYP RAX-600 also features front panel lock-off screws, cable access and tethering points.

CYP RAX System Accessories:

Designed to increase efficiency and minimise rack space useage, the CYP RAX system also offers a number of accessories including shelves, cooling fan systems and power supply management systems.

RAX-600 Device Compatibility:

The RAX-600 Chassis is compatible with the following CYP devices:
