CYP17036

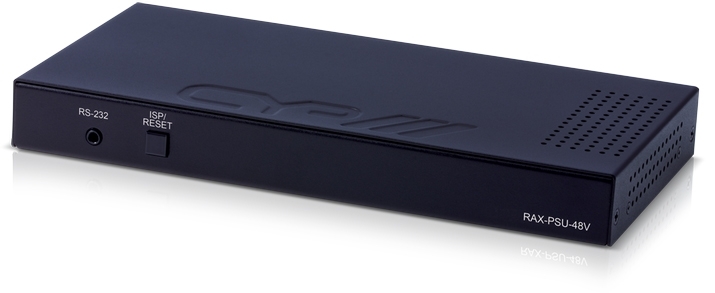

RAX 48V DC Power Manager

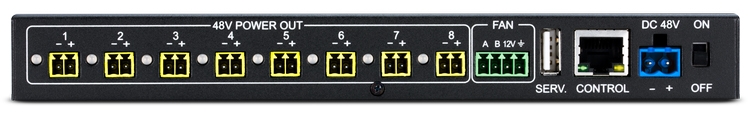

The RAX-PSU-48V DC Power Manager for a 19″ rack mounting, providing multiple devices with 48v DC power from 8x Phoenix outputs available, each individually controlled by the unit.

8 x Individual 48V Power Outputs
2x DC power outputs for RAX-FAN modules
Integrated WebGUI, RS232 & Telnet control
Software Application available to monitor system voltage usage and power cosumption reports
Onboard scheduler with battery backup
WebGUI System information includes: Fan speed, Temperature & Active/Inactive Ports
Single speed or thermostatic temperature control of RAX-FAN modules

Features

8 x Individual 48V Power Outputs

2x DC power outputs for RAX-FAN modules

Integrated WebGUI, RS232 & Telnet control

Software Application available to monitor system voltage usage and power cosumption reports

Onboard scheduler with battery backup

WebGUI System information includes: Fan speed, Temperature & Active/Inactive Ports

Single speed or thermostatic temperature control of RAX-FAN modules

Product Description

The RAX-PSU-48V DC Power Manager for a 19″ rack mounting, providing multiple devices with 48v DC power from 8x Phoenix outputs available, each individually controlled by the unit.

The RAX-PSU-48V Power Manager additionally provides power for up to 2x RAX-FAN modules for greater flexibility, accessed through available on-board WebGUI, Telnet or RS232. The speed of the fans can be thermostatically set in 3 available speeds for user preference or at a single set speed.

The WebGUI can time the power outputs from the RAX-PSU-48V Power Manager to other units through schedules/events delivering power at specific times or for a single event. Additionally, with the uncertainty of a power cut, the unit is equiped with a battery back-up, which will preserve the unit until power is restored.

Further useful information can be accessed through the Power Manager’s WebGUI such as current fan speed, power outputs and inputs and system temperatures to assist in the efficient running of the unit.

RAX Rack Mount Series:

Designed to suit a variety of applications, the RAX series can be used to minimise & neatly secure installations when employing multiple point-to-pojnt extenders, break out boxes and extenders. The series also features additional products that power, cool and that may complete the installation from a design & aesthetic perspective.

The RAX Series of Rack Mount System can be used with any of the following CYP product range: PUV-1500 Series, PUV-1600 Series, PUV-1700 Series, PUV-1800 Series, IP6000 Series and the IP7000 Series of Transmitters and Receivers.
