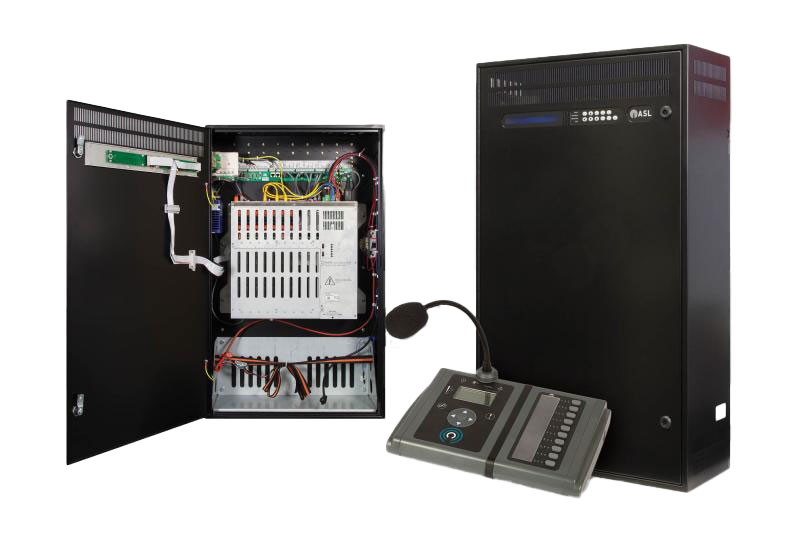

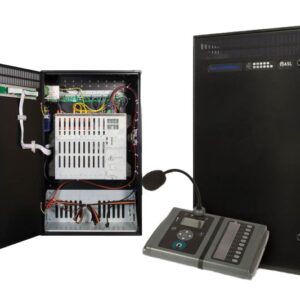

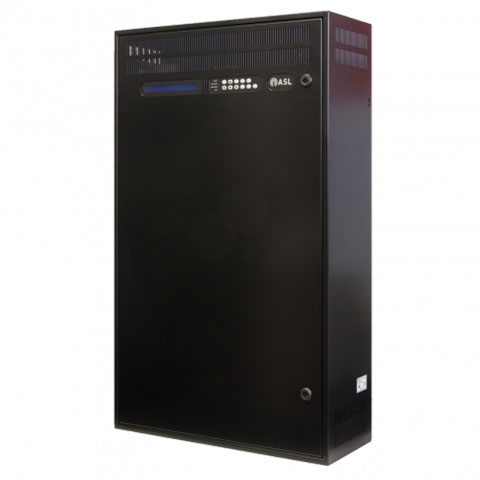

P-INTEGRA Integrated Power Amplifier, DSP and Audio Matrix
Zenitel INTEGRA-03 wall-mount, network-enabled, 5-channel integrated voice alarm system
- EN54-16 EN54-4 Certified
- Self-contained wall mount PAVA system
- Simple installation with mounting for batteries
- Pre-installed with 10 amplifier channels, each capable of up to 500w @100v
- Up to a total, 2000w @ 100v per integra
- High quality professional audio processing
- 24 bit 48 khz audio processing
- 12 analogue audio inputs & outputs / 6 ip audio inputs
- On board general purpose inputs & outputs
- Flexible control options
- Interoperability with the Zenitel Vipedia range
Features
Product Description
The Zenitel Integra-05 all-in-one, EN-54 compliant network-enabled voice alarm solution featuring five pre-installed 500W amplification channels, which can be expanded using additional amplifier modules.
This wall-mount, fully integrated PAVA system offers 12 audio inputs and has internal storage for up to 64 recorded messages.
With the addition of optional amplifier modules, a single Integra-05 unit can reach a maximum power output of 2000W.
Designed in a compact wall-mount enclosure, it integrates audio-over-IP networking, advanced audio processing, and an internal battery charger with a battery mounting shelf, making it an ideal voice alarm solution for medium to large centralized and decentralized PAVA systems.
Up to 32 Zenitel Integra Voice Alarm units can be connected via IP, allowing broadcasts from any location to multiple zones in extensive decentralized systems. The NETWORK-SWITCH-LP01 serves as a voice alarm-compliant ring network topology and can be conveniently mounted inside the enclosure.
All INTEGRA variants, along with the rack-mounted Zenitel VIPEDIA range, are fully interoperable.
