CYP17908
P-4K UHD+ HDMI/DisplayPort/VGA/USB Type-C to HDBaseT Switcher

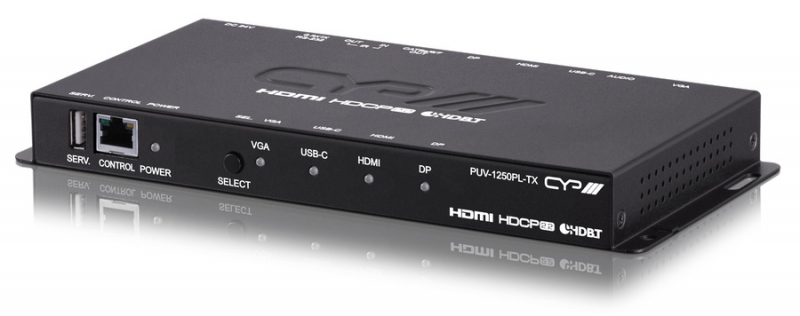

PUV-1250PL-TX Multi-Format HDBaseT Extender with HDMI, USB Type C, DisplayPort and VGA inputs
- HDBaseT output supports resolutions up to 4K@60Hz (4:2:0, 8-bit) or 4K@30Hz (4:4:4, 8-bit). 4K@50/60Hz (4:4:4, 8-bit) or 4K@any (10/12-bit) sources will be automatically converted to 1080p.
- HDMI 2.0, DisplayPort 1.4, and DVI 1.0 compliant
- HDMI, DisplayPort, VGA with analogue audio, and USB Type-C inputs
- Integrated auto-switching across all digital video inputs
- Supports pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream
- Signal event automation using CEC commands
- Comprehensive EDID & HDCP management
- USB Type-C port provides power (up to 60W) or charge to any compatible device
Features
HDBaseT output supports resolutions up to 4K@60Hz (4:2:0, 8-bit) or 4K@30Hz (4:4:4, 8-bit). 4K@50/60Hz (4:4:4, 8-bit) or 4K@any (10/12-bit) sources will be automatically converted to 1080p.
HDMI 2.0, DisplayPort 1.4, and DVI 1.0 compliant
HDMI, DisplayPort, VGA with analogue audio, and USB Type-C inputs
Integrated auto-switching across all digital video inputs
Supports pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream
Signal event automation using CEC commands
Comprehensive EDID & HDCP management
USB Type-C port provides power (up to 60W) or charge to any compatible device
Product Description
The CYP PUV-1250PL-TX is a multiple-format HDBaseT Transmitter designed to allow extended signal transmission for w aide range AV inputs and source devices.
The PUV-1250PL-TX HDBaseT Extender features HDMI, USB-C, DisplayPort and GVA inputs with support for 4K (4K@24-30Hz 4:4:4, 4K@60Hz 4:2:0), making the device ideal for a wide range of presentation applications, particularly where unknown source devices may be brought onto site by the presenter.
4K signals beyond HDBaseT bandwidth are automatically converted to ensure a signal is always received at the RX.
Auto-switching is operational across all digital video inputs ensuring the active source will always be displayed. EDID & HDCP settings can be adjusted from the WebGUI plus signal event automation allows CEC commands to be sent to turn on connected screens once an active source is detected. The USB-C input provides power (up to 60W) to any connected device, and the HDBaseT output provides PoH (Power over HDBaseT) to connected compatible receivers such as the PUV-1210PL-RX.
Control is provided via the front panel, WebGUI, IP Telnet and RS232.
