CYP16797

Multi-Format HDBaseT Transmitter with HDMI Display Port & VGA

The PUV-1650RX Receiver, used in conjunction with the PUV-1650TX Transmitter, is a complete package, able to perform stand-alone by switching/receiving video, provides complete AV extension/conversion adding control around commercial applications and includes HDMI input/output for high-end compatibility.

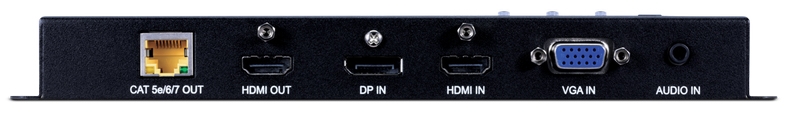

HDMI, DisplayPort & VGA inputs
Input resolution support upto 4K@60Hz (4:4:4 8-bit) HDMI & DisplayPort
HDBaseT 5Play convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-directional IR/RS-232 pass-through)
HDCP2.2 Compliant
HDBaseT Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output displays EDID settings
4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
WebGUI user programable control interface for timed events within the meeting space : With battery backup
Supports 3D signals and HDCP repeating and CEC functions

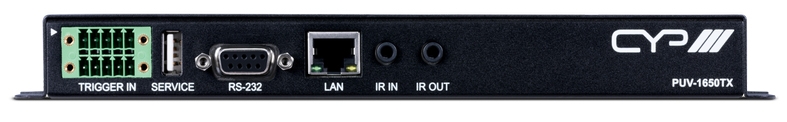

OSD, WebGUI, RS232, LAN & Push Button Control
IR Learning & Re-transmission of control signals
Control Trigger Input & Collaboration Mode for easy setup with compatible devices

Login to view prices Register for a Trade Account

Features

HDMI, DisplayPort & VGA inputs

Input resolution support upto 4K@60Hz (4:4:4 8-bit) HDMI & DisplayPort

HDBaseT 5Play convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-directional IR/RS-232 pass-through)

HDCP2.2 Compliant

HDBaseT Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output displays EDID settings

4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7

Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio

WebGUI user programable control interface for timed events within the meeting space : With battery backup

Supports 3D signals and HDCP repeating and CEC functions

OSD, WebGUI, RS232, LAN & Push Button Control

Product Description

The PUV-1650TX Transmitter, used in conjunction with the PUV-1650RX Receiver, is a complete package, able to perform stand-alone by switching/receiving video, provides complete AV extension/conversion adding control around commercial applications and includes HDMI input/output for high-end compatibility.

The PUV-1650TX Transmitter can transmit sources from up to 100 metres: 1080p, 4K@60Hz – 4:2:0 8-bit; and over 70 metres: by Cat6/7 cable.

Different from the other HDBaseT extender Transmitters and Receivers, the PUV-1650RX and PUV-1650TX can be activated in several ways. Some of which are via RS232, IP Push or Trigger Button Controls. Further control products in the CYP range compatible with the PUV-1650 series is the CR-CS2, CR-TG1, CR-KP1 and CR-KP2 controllers.

Power for the system is sent from the main powered Receiver to the Transmitter offering greater flexibility in designing custom solutions.
