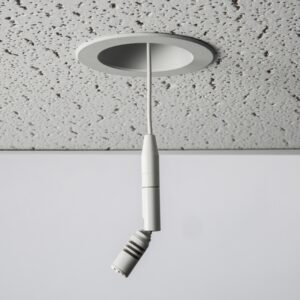

Motorised Retractable Ceiling Microphone, RF-immune - Secondary Unit. WhiteCCRM4000W-SL-RFView product17386

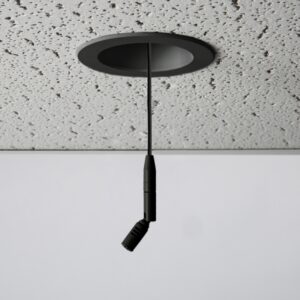

Motorised Retractable Ceiling Microphone, RF-immune – Secondary Unit. Black
The Clockaudio CCRM4000-SL-RF Secondary Retractable Ceiling Microphone is a stylish and discreet motorised solution; ideal for boardrooms, video conferencing, presentation theatres and more. This professional microphone features built-in ‘RF-immunity’.
- Balanced output that is immune to RF artifacts.
- Control ports allow DSP connection and link/daisy chain expansion to other CCRM 4000 Retracta units
- Logic Hi/Lo for DSP mute detection port
- Master & Secondary units are identical in construction. Two rotary 0 ~ 9 digital decimal encoders are used to set Master (00) and 01 ~ 99 determines Secondary designation. The factory default is set to Master (00)
- XLR socket allows easy and fast connection of the audio to mixer or DSP. A 9 ~ 48 Volt phantom power supply is required
- IR remote control is supplied with the Master unit. Remote control can be used to activate the units in the absence of a DSP
- IR receiver sensor with integral green programme mode LED and red range LED (supplied with Master unit)
- Supplied with 350 degree rotation, 40 degree knuckle joint angle microphone with cardioid polar pattern
- Up to 99 secondary units can be daisy-chained to the Master
- Ceiling bezel fitted with detection switch
- Universal mains switched-mode power supply available as separate item. Operates up to 4 units
- Automatic safety detection for cable hang-ups
Features
Balanced output that is immune to RF artifacts.
Control ports allow DSP connection and link/daisy chain expansion to other CCRM 4000 Retracta units
Logic Hi/Lo for DSP mute detection port
Master & Secondary units are identical in construction. Two rotary 0 ~ 9 digital decimal encoders are used to set Master (00) and 01 ~ 99 determines Secondary designation. The factory default is set to Master (00)
XLR socket allows easy and fast connection of the audio to mixer or DSP. A 9 ~ 48 Volt phantom power supply is required
IR remote control is supplied with the Master unit. Remote control can be used to activate the units in the absence of a DSP
IR receiver sensor with integral green programme mode LED and red range LED (supplied with Master unit)
Supplied with 350 degree rotation, 40 degree knuckle joint angle microphone with cardioid polar pattern
Up to 99 secondary units can be daisy-chained to the Master
Ceiling bezel fitted with detection switch
Product Description
The Clockaudio CCRM4000-SL-RF Secondary Retractable Ceiling Microphone is a stylish and discreet motorised solution; ideal for boardrooms, video conferencing, presentation theatres and more.
This professional microphone also features built-in ‘RF-immunity‘ filters. This RF-immunity helps to reduce the noise and inteference of RF from GSM devices such as mobile phones and tablets.
The Clockaudio CCRM4000-SL-RF is supplied with C3 Cardioid Microphone, knuckle joint and magnet, ceiling bezel with locking ring and jockey wheel, ceiling tile mounting bracket and safety cable.
Finished in satin Black.
This is the Secondary unit used in conjunction with the CCRM4000M motorised unit to provide an automated multi-microphone retractable system (up to 99 secondary units).
Please note the only difference between the Master and Secondary unit is that the Master is supplied with the IR remote, IR sensor and PS-018. The Secondary is not.
