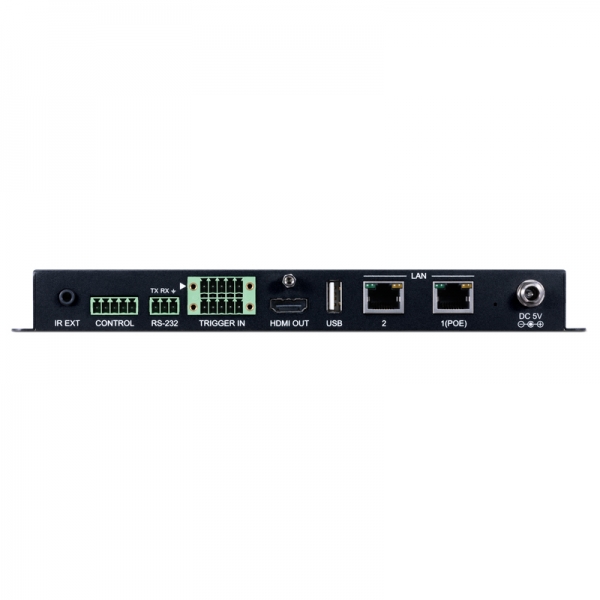

IP System Controller & Configurator

The IP-CS7 is a powerful and adaptable installation device for controlling the CYP range of IP-6000 and IP-7000 video-over-IP extender systems. It can manage multiple IP extenders over the same network.

The unit requires installation within your network to begin the setup procedure. The IP-CS7 will seek and find all Transmitters and Receivers on the network, enabling basic configuration of a uni-cast or multicast installation.

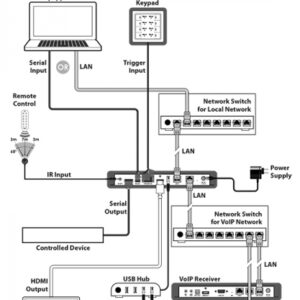

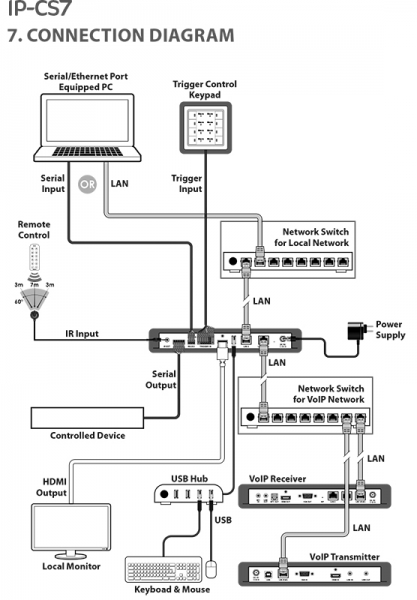

When utilising the IP-CS7 WebGui, you can define and control the majority of the TX/RX’s on the network. It additionally enables the user to make pre-determined switching groups or presets for added control. The on board set up ‘Wizard’ adds effortlessness to the installation procedure, helping the installer through the setup and control features of the unit. The dual LAN connectivity enables the system to keep running on a bespoke IP network while the extra LAN allows connection to a secondary network for control and configuration. This is helpful when restricted access by means of the LAN network, the IP-CS7 gives an immediate link to the IP video network.

Utilising the WebGui the user can access a ‘Screen and Control’ zone for basic drag and drop control and changing of sources. In this mode the user can see a preview of what is being conveyed from the source. The system setup territory of the WebGui has protected access rights changes to keep any changes being made to the system by different users. Another control method for the device can be accomplished by utilising the Trigger Input interface. This interface enables the user to activate pre-defined functions or presets at the push of a button. Standard control of the device can be accomplished using RS-232, Telnet and the WebGui.
