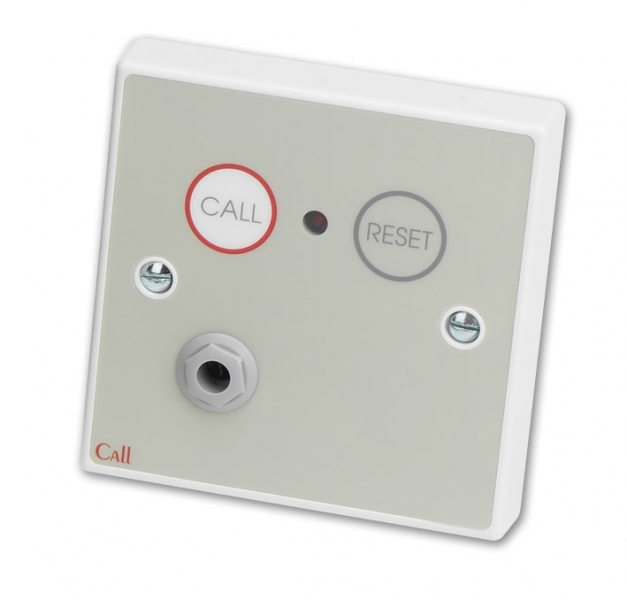

Infrared call point, button reset, with remote socket

The NC802DERB is a button operated call/reset point c/w infrared receiver capable of generating Standard and Emergency calls on an 800 Series Call System. The onboard infrared receiver will accept Standard & Emergency calls from compatible 800 Series infrared transmitters. You can also make calls by activating the call point’s CALL button to make a Standard call and the call point’s CALL & RESET buttons together for an emergency call.

The NC802DERB includes a 6.35mm jack plug socket so you make a connection of an optional tail call lead or other ancillary calling device. When the red LED lights up this confirms a call has been made. Using the onboard reset button cancels Standard and Emergency calls made from the NC802DEWB and Standard calls made from other devices wired on the same zone. It can be connected to up to three NC302RXCS secondary infrared ceiling receivers to increase coverage.
