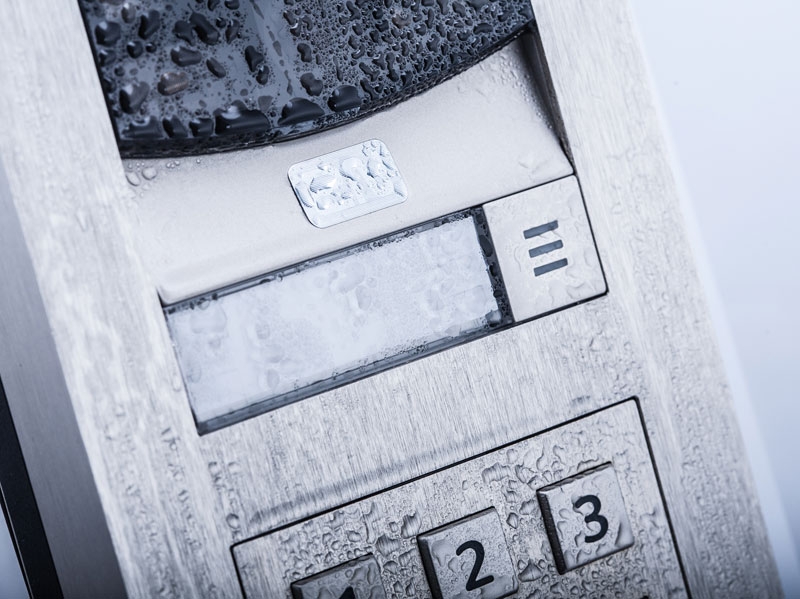

Helios IP Verso Modular Door Intercom with Camera

The 9155101C is part of the latest 2N IP Verso range of Modular Door Intercom systems which have been developed to combine the ultimate in flexibility of function and specification with luxury and stylish finish.

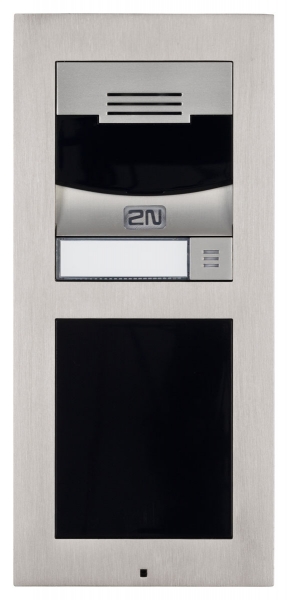

Described as the IP Verso ‘basic unit with camera’, this unit is the heart of a Verso I.P. connectivity Door Intercom System, around which additional Modules can be specified to create the exact specifications for your final product. This version features a HD Camera with infrared light and night vision as standard.

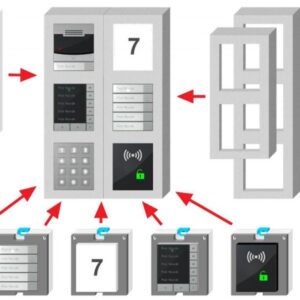

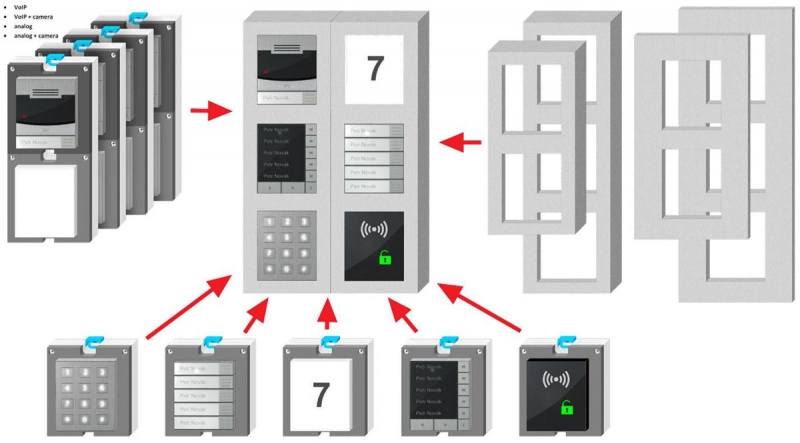

Having chosen your basic Verso IP Door Entry Unit, you can choose from a range of Surface Frames, Back Boxes, Additonal Function Modules (such as InfoPanel, Keypad, RFID Card Reader, 5 Button Module) and Accessories (such as Electric Locks, RFID Entry Cards or Fobs, etc) to create an easily self-assembled, professional grade Door Access Unit. This Verso 9155101C with camera version must be ordered with either a Two Frame Position or Three Frame Position mounting frame; the second (and third) mounting position is left for installation of additional function modules).

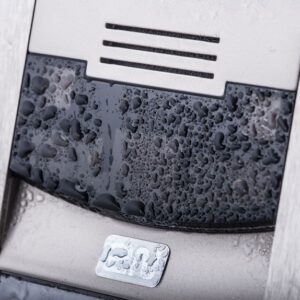

This high quality, high specification IP Door Entry System is designed for standard and high impact environments, functioning within a temperature range of -40° to +60°C to endure severe weather changes.
Communication between individual 2N IP Verso intercom units is via a LAN network (using IP connectivity) and is secured using the 802.1x protocol and a closed operating system for resistance against hacking.

CASE STUDY

• Emerald Gardens @ Wembley Park: 2N Intercom & Door Entry Systems
• 100 Putney Common – IP Intercom System


Applications:
The 2N IP Verso Door Entry System is ideal for security-conscious and style-conscious applications including:
• Offices and office complexes
• Schools
• Public state administration buildings
• Apartment complexes and houses
• Educational institutions

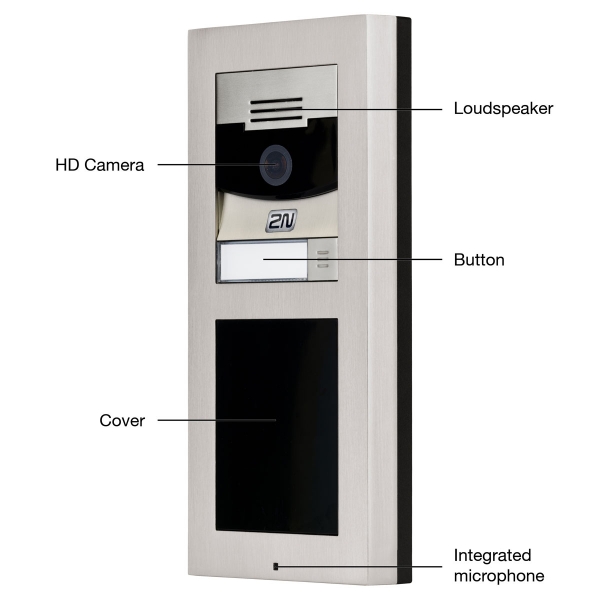

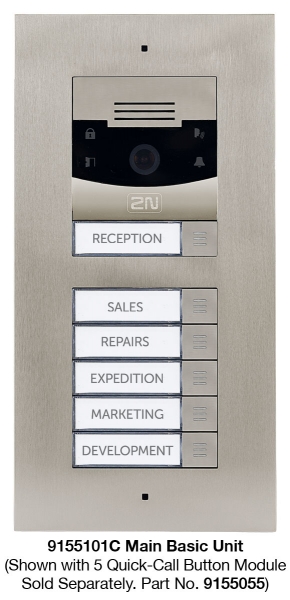

The Verso 9155101C is supplied as standard with HD night-vision camera, integrated loudspeaker & microphone and single, backlit quick-dial button.

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –
VERSO Product Specification Guide:
CLICK HERE TO VIEW VERSO SPECIFICATION GUIDE

Main Basic Units – (*required)
9155101 Basic Unit
9155101C Basic Unit with camera
9155101B Basic Unit in Black
9155101CB Basic Unit in Black with camera
9155401C-E Basic LTE Unit
9155401CB-E Basic LTE Unit with camera

Mounting Frames – (*required)

9155012 2 Module Flush-mounting Frame
9155012B 2 Module Flush-mounting Frame – Black
9155013 3 Module Flush-mounting Frame
9155013B 3 Module Flush-mounting Frame – Black
9155021 1 Module Surface-mounting Frame
9155022 2 Module Surface-mounting Frame
9155023 3 Module Surface-mounting Frame

Extending Function Modules – (*option)
9155030 InfoPanel Module
9155031 Keypad Module
9155032 RFID Card Reader 125 KHz Module
9155033 RFID Card Reader 13 MHz Module
9155034 Input / Output Module

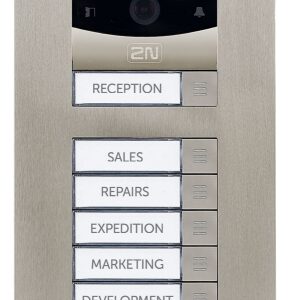

9155035 5 Quick-Call Button Module
9155036 5 electronic Button Module

9155045 Biometric Fingerprint Reader Module
9155046 Bluetooth Module
9155047 Touch Digital Keypad Module

Flush Mounting Back Boxes – (*option)
9155014 1 Module Flush Mount Back Box
9155015 2 Module Flush Mount Back Box
9155016 3 Module Flush Mount Back Box

Electric Locks – (*option)
932070E BEFO 1211 12v / 600mA Lock
932080E BEFO 1211 12v / 600mA Lock with momentary pin
932090E BEFO 1211 12v / 600mA Lock with mechanical blocking

Accessories – (*option)
9159010 Security Relay
9137410E External IP Relay
9134165E RFID Card 125 kHz
9134166E RFID Key Fob 125 kHz

An overview of the full range of 2N IP Verso products can be found in the The 2N IP Verso Guide…
