HDMI 4K SCALERSY-4KS-4K22View productCYP7896
HDMI / VGA/ DisplayPort to HDMI Scaler

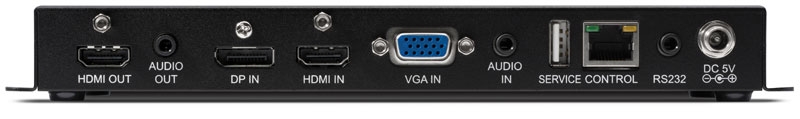

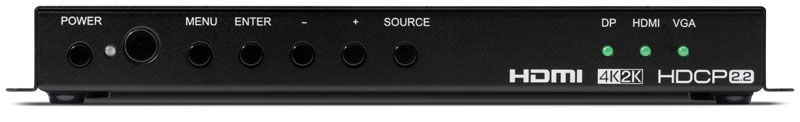

Ideal for boardroom or classroom applications, the EL-6010-4K22 is a multi-format scaler with HDMI, VGA, and DisplayPort inputs scaling to the HDMI output. With the EL-6010-4K22 an installer can scale the input from the connected source device to a HDMI resolution suitable for the connected HDMI display, up to a maximum output resolution of 4K@60Hz (YUV 4:4:4).
- Supports multiple input formats - HDMI, DisplayPort and VGA
- HDMI 2.0, HDCP 2.2, HDCP 1.4 and DVI 1.0 compliant
- Supports video resolutions up to 4K@60Hz (YUV 4:4:4)
- Auto source detection : Automatically switches to the most recently connected input
- Wide range of aspect ratio settings including: full screen, 16:9, 16:10 and 4:3
- Direct adjustment of contrast, brightness, hue and saturation
- Audio mute function
- Analogue stereo audio output with volume control
- EDID management support
- Comprehensive user interface options including : Front panel with OSD, WebGUI, telnet, RS-232, and IR remote
Features
Supports multiple input formats – HDMI, DisplayPort and VGA
HDMI 2.0, HDCP 2.2, HDCP 1.4 and DVI 1.0 compliant
Supports video resolutions up to 4K@60Hz (YUV 4:4:4)
Auto source detection : Automatically switches to the most recently connected input
Wide range of aspect ratio settings including: full screen, 16:9, 16:10 and 4:3
Direct adjustment of contrast, brightness, hue and saturation
Audio mute function
Analogue stereo audio output with volume control
EDID management support
Comprehensive user interface options including : Front panel with OSD, WebGUI, telnet, RS-232, and IR remote
Product Description
Ideal for boardroom or classroom applications, the EL-6010-4K22 Multi-format Scaler with HDMI, VGA, and DisplayPort inputs scales to the HDMI output. With the EL-6010-4K22 an installer can scale the input from the connected source device to a HDMI resolution suitable for the connected HDMI display, up to a maximum output resolution of 4K@60Hz (YUV 4:4:4).
A selection of adjustment options you are likely to need when accommodating different sources are built-in, including a wide array of aspect ratio settings as well as contrast, brightness, saturation, hue and sharpness settings directly on the device. The EL-6010-4K22 also has an analogue speaker output for ease of integration when used as part of a conference centre, classroom or public venue system.
An Auto Source Detection feature switches to the most recently connected source automatically or another live input if the current one becomes disconnected.
This unit can be controlled via front panel controls (with OSD), WebGUI, IR remote, telnet or RS-232 making operation easy and intuitive.
