HDMI / VGA / Display Port Presentation Switch and Scaler

CYP17529

HDMI / VGA / Display Port Presentation Switch and Scaler

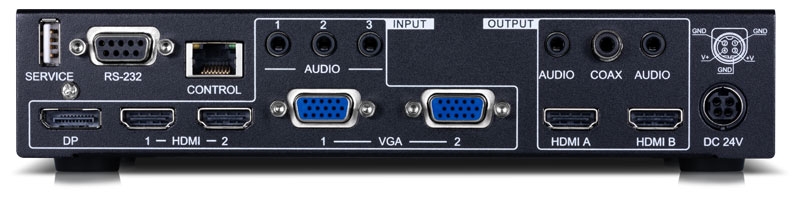

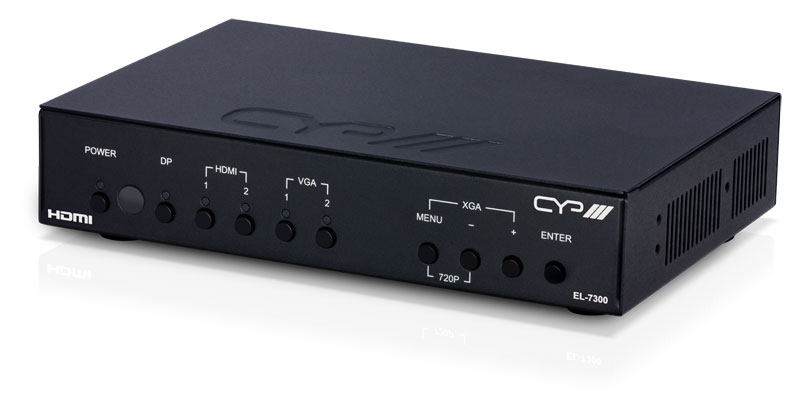

The CYP EL-7300 Presentation Switch and Scaler is a compact and versatile presentation switch with HDMI, VGA and Display Port inputs and HDMI, Stereo mini-jack and RCA outputs.

v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant
Integrate and switch HDMI, VGA, and Display Port sources to dual HDMI outputs
Audio de-embedding
Digital to Analogue & Analogue to Digital Audio conversion (DAC/ADC)
Detection of native screen resolution (EDID based)
Resolutions Supported : HDTV: 480i to 1080p plus 1080p 60fps PC: VGA to WUXGA
Audio Support : Dolby Digital, Dolby DTS, Dolby Digital Plus, Dolby True HD, DTS-HD Master Audio, LPCM Multi-channel, LPCM Stereo, Analogue Stereo
Telnet, IR Remote, RS-232, Push Button Control
On Screen Display (OSD) and WebGUI
Hotkey output resolution support
Supports EDID and HDCP Management

Features

v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant

Integrate and switch HDMI, VGA, and Display Port sources to dual HDMI outputs

Audio de-embedding

Digital to Analogue & Analogue to Digital Audio conversion (DAC/ADC)

Detection of native screen resolution (EDID based)

Resolutions Supported : HDTV: 480i to 1080p plus 1080p 60fps PC: VGA to WUXGA

Audio Support : Dolby Digital, Dolby DTS, Dolby Digital Plus, Dolby True HD, DTS-HD Master Audio, LPCM Multi-channel, LPCM Stereo, Analogue Stereo

Telnet, IR Remote, RS-232, Push Button Control

On Screen Display (OSD) and WebGUI

Hotkey output resolution support

Product Description

The CYP EL-7300 Presentation Switch and Scaler is a compact and versatile presentation switch with HDMI, VGA and Display Port inputs and HDMI, Stereo mini-jack and RCA outputs.

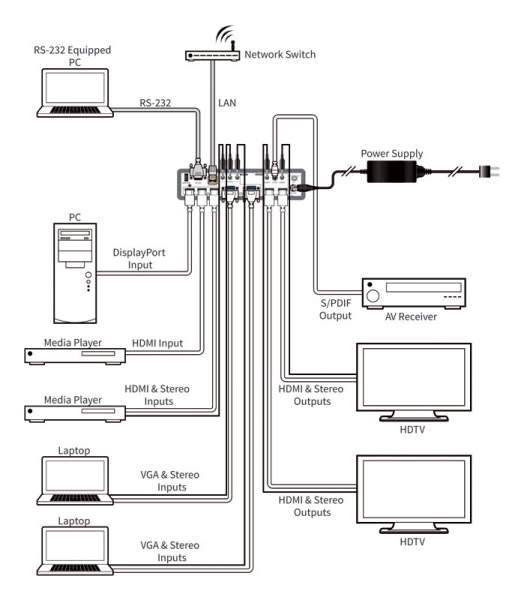

Any input of the EL-7300 can be switched or scaled to the mirrored HDMI outputs. Independent audio signals can be routed with the VGA inputs of the switch. De-embedded audio is available at the output stage via the analogue or digital audio (ADC Conversion) outputs.

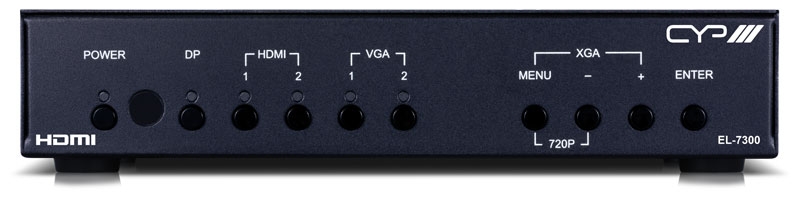

The CYP EL-7300 Presentation Switch can be controlled via IR remote, RS-232, WebGUI, Telnet or the front panel controls with OSD (On Screen Display).

The CYP EL-7300 is the perfect solution for any educational or corporate environment where AV system flexibility is essential.
