CYP11881

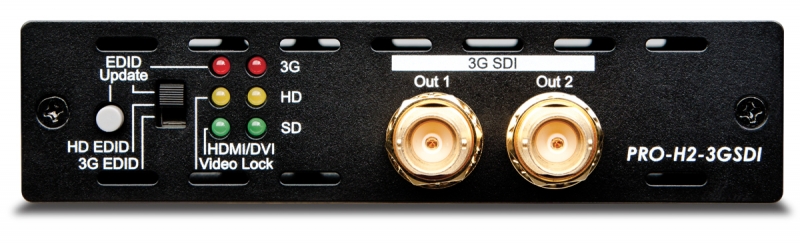

HDMI TO 3G-SDI DUAL OUTPUT CONVERTER

CYP's new PRO-H2-3GSDI Dual Converter accepts non-HDCP protected HDMI signals and converts them to dual 3G-SDI outputs simultaneously.

Supports HDMI timing: 480i, 576i, 720p50/60, 1080p 24/25/30, 1080i 50/60, 1080p 50/60
This product does not process HDCP input. When receiving content that has HDCP encryption there will be no video outputted
Simultaneous display HDMI source on two SDI displays
When a DVI signal goes through HDMI, the L/R audio can be sent with it to the 3G SDI output

Features

Supports HDMI timing: 480i, 576i, 720p50/60, 1080p 24/25/30, 1080i 50/60, 1080p 50/60
This product does not process HDCP input. When receiving content that has HDCP encryption there will be no video outputted
Simultaneous display HDMI source on two SDI displays
When a DVI signal goes through HDMI, the L/R audio can be sent with it to the 3G SDI output
Integrated audio embedded up to 8 channel PCM 48kHz for HDMI or 2CH for DVI audio
Choose between a selectable EDID and recordable EDID
Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s

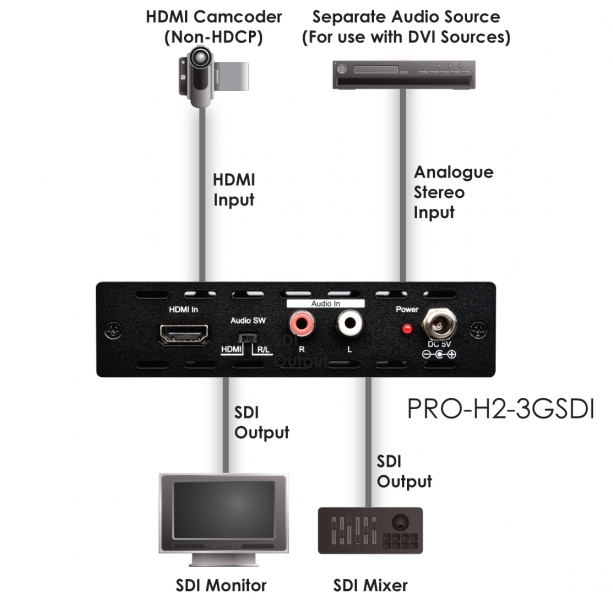

Connect with other units (SDI to HDMI) to extend your signal over long distances
Frequency Bandwidth 225MHz/link (HDMI 1.3)
Auto video mode detection (3G/SD/HD)
Supports signal transmission distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals
Supplied with Locking PSU

Product Description

CYP's new PRO-H2-3GSDI Dual Converter accepts non-HDCP protected HDMI signals and converts them to dual 3G-SDI outputs simultaneously.
