CYP14813

HDMI PATTERN GENERATOR

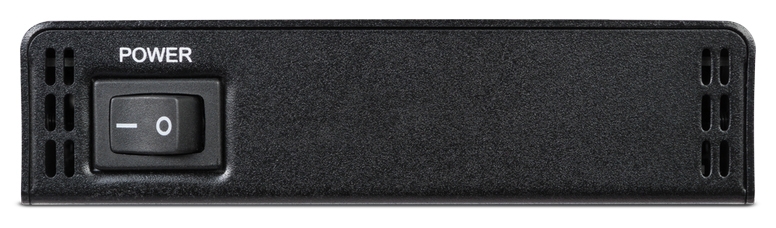

The CYP XA-4 is an advanced HDMI Pattern Generator and Analyser which supports the testing of 4k UHD and HDCP 2.2 signals and devices.

HDMI (with 6G audio/video support), HDCP 2.2 and DVI compliant
Supports analysis of the source and the display up to HDMI 6G signals
Supports analysis of HDMI data packets
Supports analysis and control of HDCP v1.4 and v2.2
Supports analysis and emulation of EDID data, including SCDC (Status and Control Data Channel)

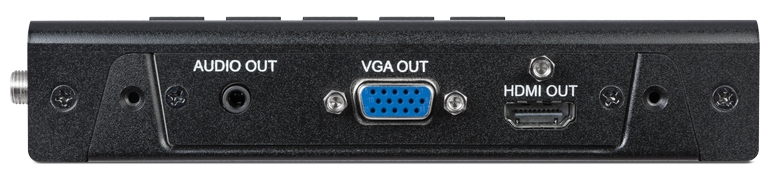

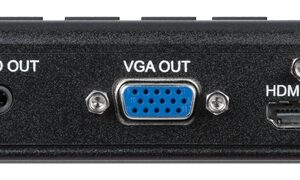

VGA output resolutions : 480p, 576p, 720p, 1080i, 1080p, 640×480, 800×600, 1024×768, 1280×1024, 1366×768, 1400×1050,1440×900, 1600×900 (RB), 1600×1200, 1680×1050, 1920×1200 (RB)
HDMI output resolutions : 480p, 576p, 720p, 1080i, 1080p, 640×480, 800×600, 1024×768, 1280×1024, 1366×768, 1400×1050,1440×900, 1600×900 (RB), 1600×1200, 1680×1050, 1920×1200 (RB), 3G 4K2K,
Supports extra 2 Custom Pattern sizes - 640×480, 1920×1080 with RGB 24 bits to be inserted

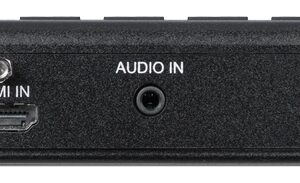

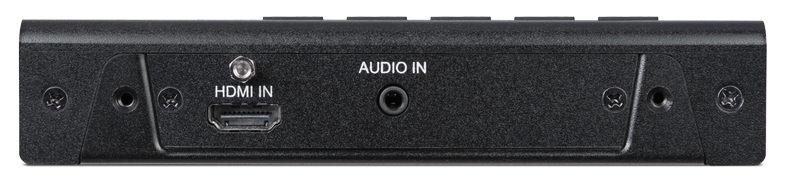

Supports external stereo audio input & output
Supports Generation of sinewave audio up to LPCM 8CH and analysis of the source audio signal

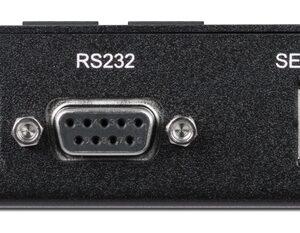

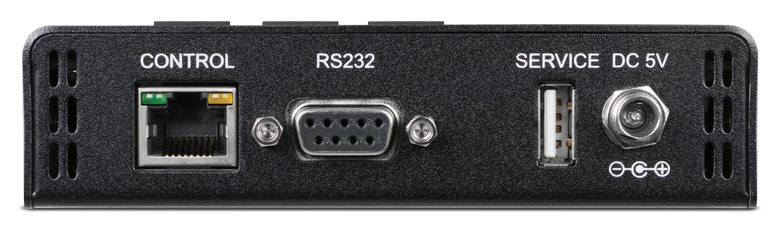

Supports front panel, IR Remote, RS-232, and Telnet controls
Supports OLED display with quick viewing of the current selection status

Features

HDMI (with 6G audio/video support), HDCP 2.2 and DVI compliant

Supports analysis of the source and the display up to HDMI 6G signals

Supports analysis of HDMI data packets

Supports analysis and control of HDCP v1.4 and v2.2

Supports analysis and emulation of EDID data, including SCDC (Status and Control Data Channel)

VGA output resolutions : 480p, 576p, 720p, 1080i, 1080p, 640×480, 800×600, 1024×768, 1280×1024, 1366×768, 1400×1050,1440×900, 1600×900 (RB), 1600×1200, 1680×1050, 1920×1200 (RB)

HDMI output resolutions : 480p, 576p, 720p, 1080i, 1080p, 640×480, 800×600, 1024×768, 1280×1024, 1366×768, 1400×1050,1440×900, 1600×900 (RB), 1600×1200, 1680×1050, 1920×1200 (RB), 3G 4K2K,

Supports extra 2 Custom Pattern sizes – 640×480, 1920×1080 with RGB 24 bits to be inserted

Supports external stereo audio input & output

Supports Generation of sinewave audio up to LPCM 8CH and analysis of the source audio signal

Product Description

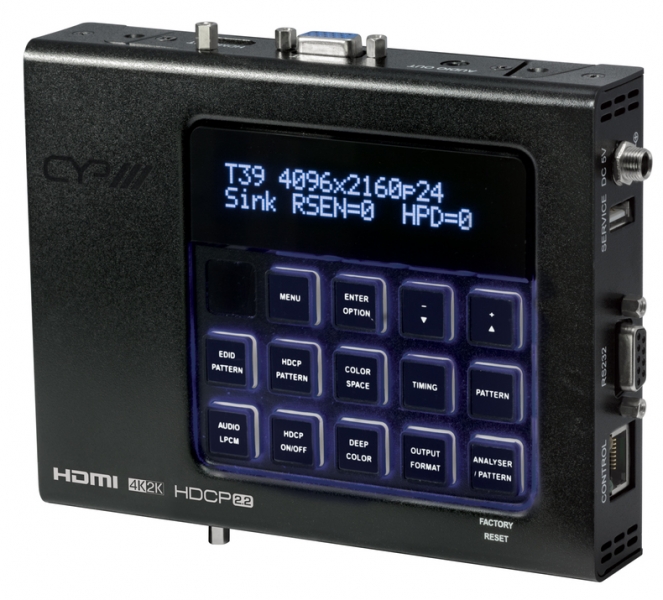

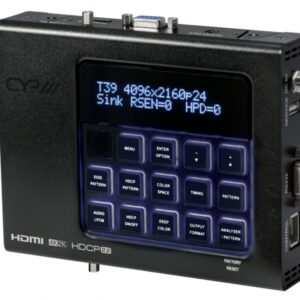

The XA-4 Advanced HDMI Pattern Generator and Analyser is a professional integrators’ test device for producing 4K UHD HDMI signals for verifying and testing wider AV installations.

This XA-4 device has 54 resolutions settings, 47 test patterns and 6 analysis tests which provide over a thousand different combinations of test scenarios.
It supports HDMI data packets, EDID & HDCP analysis, EDID emulation, and allows the user to save 2 custom patterns, along with the ability to generate audio up to 8 channels.

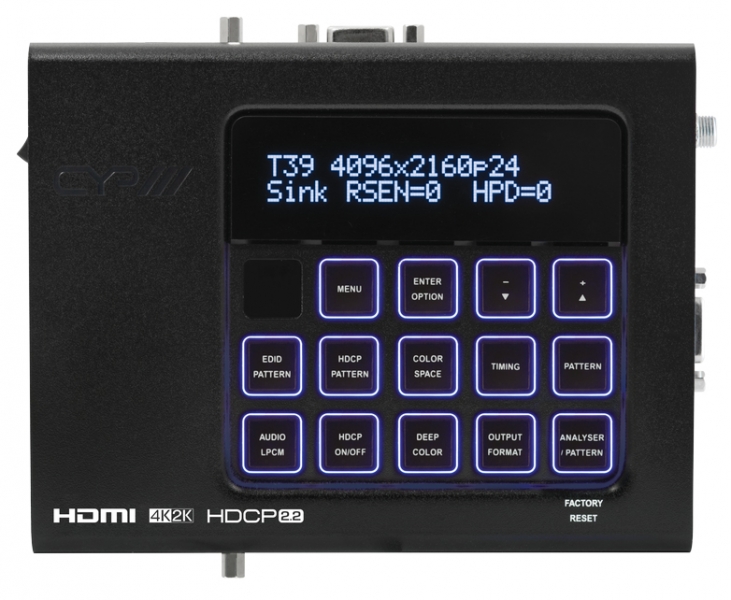

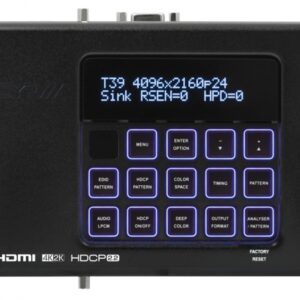

Front panel keys allow fast switching between the various functions and an OLED screen allows for quick viewing of current status information. Control is via front-panel buttons, IR, RS-232, and Telnet allowing users full flexibility in controlling the device.

This professional HDMI Signal Generator supports the latest 4k UHD signals and HDCP version 2.2 and is an essential test device to ensure the highest levels of performance in a professional Ultra HD AV system.

Click on the video below to see how CYP’s Nick Bovill puts the XA-4 through it’s paces with some great tips on AV system troubleshooting…

Specification
