CYP18388

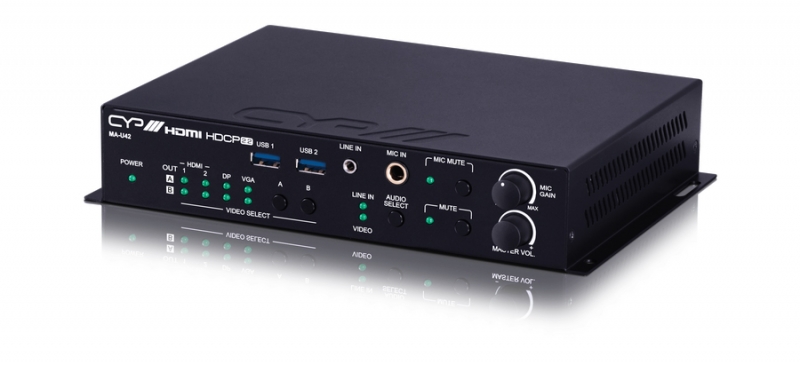

HDMI matrix with Amplifier & USB Hub

The MA-U42 is a 4×2 HDMI Matrix Switch with amplifier is deal for use in environments that need flexibility when it comes to inputs, outputs and control.

HDMI 2.0 and DVI 1.0 compliant
HDCP 1.x and 2.2 compliant
4 video inputs (2×HDMI, 1×DisplayPort, 1×VGA w/ analog audio)
2 matrixed HDMI outputs
HDMI and DisplayPort inputs support resolutions up to 4K@60Hz (4:4:4, 8-bit)
VGA input supports resolutions up to 1080p60Hz
HDMI outputs support resolutions up to 4K@60Hz (4:4:4, 8-bit)
Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output (HDMI/ DisplayPort only)
Supports pass-through of 8 channel LPCM, bitstream & HD bitstream audio formats
Audio mixer function allows the mixing of audio from any LPCM 2.0 audio source with the microphone input
Microphone input supports 48V phantom power and feeds into a DSP mixer allowing adjustable mix levels, automatic ducking, audio output mixing, volume, and mute controls
High performance, 2 channel, class D amplifier with 20 watts of power per channel and independent volume control

Features

HDMI 2.0 and DVI 1.0 compliant

HDCP 1.x and 2.2 compliant

4 video inputs (2×HDMI, 1×DisplayPort, 1×VGA w/ analog audio)

2 matrixed HDMI outputs

HDMI and DisplayPort inputs support resolutions up to 4K@60Hz (4:4:4, 8-bit)

VGA input supports resolutions up to 1080p60Hz

HDMI outputs support resolutions up to 4K@60Hz (4:4:4, 8-bit)

Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output (HDMI/ DisplayPort only)

Supports pass-through of 8 channel LPCM, bitstream & HD bitstream audio formats

Audio mixer function allows the mixing of audio from any LPCM 2.0 audio source with the microphone input

Product Description

CYP’s brand new MA-U42 4×2 Matrix Switcher is ideal for use in environments that need flexibility when it comes to inputs, outputs and control. HDMI, DisplayPort, and VGA w/stereo audio the most common video input interfaces are included along with a pair of HDMI outputs, this provides an excellent source of compatibility and flexibility.

The MA-U42 HDMI Matrix is HDCP 2.2 compliant and supports a maximum resolution of 4K@60Hz (4:4:4, 8-bit) for HDMI and Display port. The microphone input included, with optional 48V phantom power and support for automatic ducking, feeds directly into a DSP mixer which allows for presentations with live voiceovers. Pass-through of multiple digital audio formats such as LPCM (up to 8 channels), bitstream and HD bitstream are supported. Additionally, the integrated stereo amplifier provides up to 40 watts of power (20W per channel) for speakers to output the audio from the selected source, offering a flexible sound experience (LPCM 2.0 sources only).

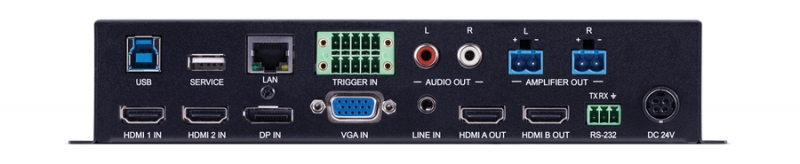

The CYP MA-U42 Matrix Switcher also includes a USB 3.0 hub with one host port (Type-B), plus three device ports (Type-A) for a flexible KVM configuration. It also provides an interface for a remote control keypad or trigger interface, which can be easily installed within a podium or table, making this matrix ideal for use in meeting rooms, classrooms, and auditoriums which need comprehensive video and audio integration with USB expansion. .

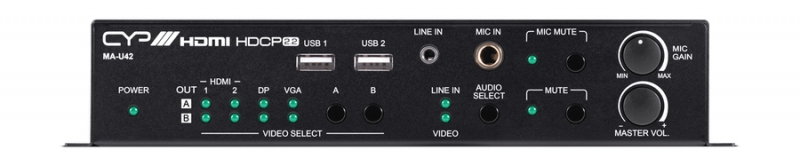

The MA-U42 is controllable via front panel controls, WebGUI, Telnet, Triggers, and RS-232.
