CYP4074

HDMI Audio Embedder with built-in Repeater (UHD, HDCP2.2, HDMI2.0)

The AU-11CA-4K22 Audio Embedder enables you to insert an external audio signal into any HDMI source signal.

HDMI 2.0, HDCP 2.2 and DVI compliant
Supports HDTV resolutions up to 4Kx2K (3840x2160@24/25/30/ 50/60 YUV_444 & 4096x2160@24/25/30/50/60 YUV_444)
Supports HDMI high resolution digital audio format bypass, LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio
HDMI supports high-bit-rate (HBR) audio
Select which audio source you require to be embedded onto the HDMI output
Supports HDMI and Optical S/PDIF audio sample rate up to 192 kHz
Supports LPCM Stereo, DTS and Dolby Digital via Optical input
Features CEC bypass
HDMI signal amplification and equalisation supporting HDMI cable distance of 10m either side of the device at full 1080p.

Features

HDMI 2.0, HDCP 2.2 and DVI compliant

Supports HDTV resolutions up to 4Kx2K (3840×2160@24/25/30/ 50/60 YUV_444 & 4096×2160@24/25/30/50/60 YUV_444)

Supports HDMI high resolution digital audio format bypass, LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio

HDMI supports high-bit-rate (HBR) audio

Select which audio source you require to be embedded onto the HDMI output

Supports HDMI and Optical S/PDIF audio sample rate up to 192 kHz

Supports LPCM Stereo, DTS and Dolby Digital via Optical input

Features CEC bypass

HDMI signal amplification and equalisation supporting HDMI cable distance of 10m either side of the device at full 1080p.

Product Description

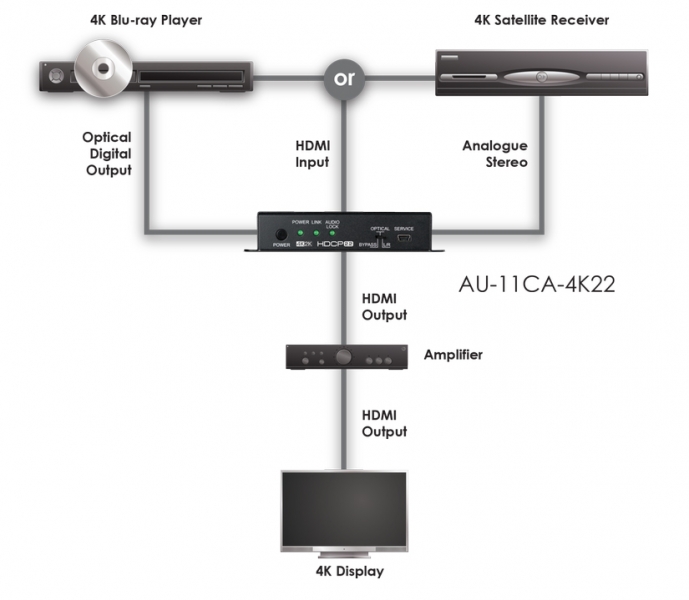

The AU-11CA-4K22 Audio Embedder enables the input of an analogue or digital stereo and multi-channel digital surround sound signal to be inserted into any HDMI source signal.

The AU-11CA-4K22 embeds audio but also serves as a HDMI repeater, boosting the signal to allow for up to 10m HDMI cables to be run from the HDMI output. This allows for versatile distribution of audio in a wider AV application.

This device supports HDMI 2.0, HDCP 2.2 and 4K resolutions allowing for audio signal integration into 4K UHD (ultra high definition) video signal paths.
