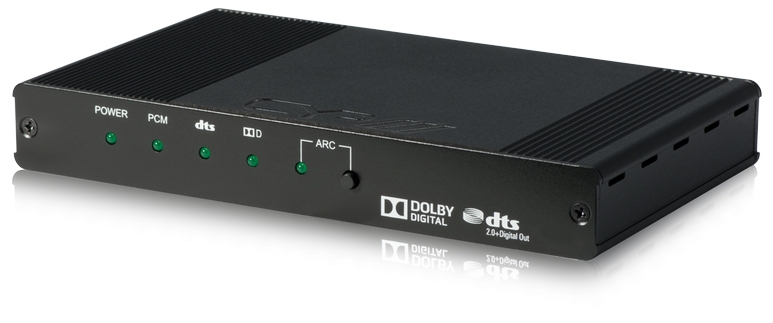

HDMI Audio De-Embedder,Dolby Digital,DTS Decoder UHD HDCP2.2 HDMI
The AU-1H1DD-4K22 is an advanced solution for de-embedding and down-mixing audio signals from the HDMI input (up to Dolby® Digital and DTS® 2.0+Digital Out).
- HDCP 2.2, HDMI2.0, and DVI compatible
- Built-in Dolby Digital Decoder
- Built-in DTS 2.0+Digital Out Decoder
- Integrated digital interpolator filter and Digital-to-Analog Converter (DAC)
- Supports HDTV resolutions up to 4K2K: 3840×2160@24/25/30Hz, 4096×2160@24/25/30Hz, 3840×2160@50/60Hz (YUV444) & 4096×2160@50/60 (YUV444)
- Supports simultaneous audio outputs on HDMI, analogue L/R, Coaxial and Optical
- Supports Dolby Digital sampling rates up to 48kHz
- Supports DTS sampling rates up to 96kHz
- Supports LPCM input sampling rates up to 96kHz
- Supports coaxial and optical output audio sampling rates up to 96kHz
- Supports up to 3m HDMI cables on input & output
Features
HDCP 2.2, HDMI2.0, and DVI compatible
Built-in Dolby Digital Decoder
Built-in DTS 2.0+Digital Out Decoder
Integrated digital interpolator filter and Digital-to-Analog Converter (DAC)
Supports HDTV resolutions up to 4K2K: 3840×2160@24/25/30Hz, 4096×2160@24/25/30Hz, 3840×2160@50/60Hz (YUV444) & 4096×2160@50/60 (YUV444)

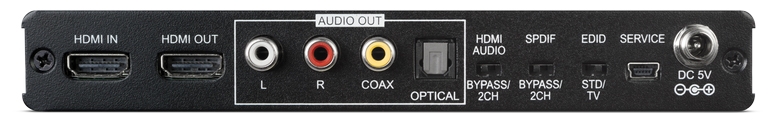

Supports simultaneous audio outputs on HDMI, analogue L/R, Coaxial and Optical
Supports Dolby Digital sampling rates up to 48kHz
Supports DTS sampling rates up to 96kHz
Supports LPCM input sampling rates up to 96kHz
Supports coaxial and optical output audio sampling rates up to 96kHz
Product Description

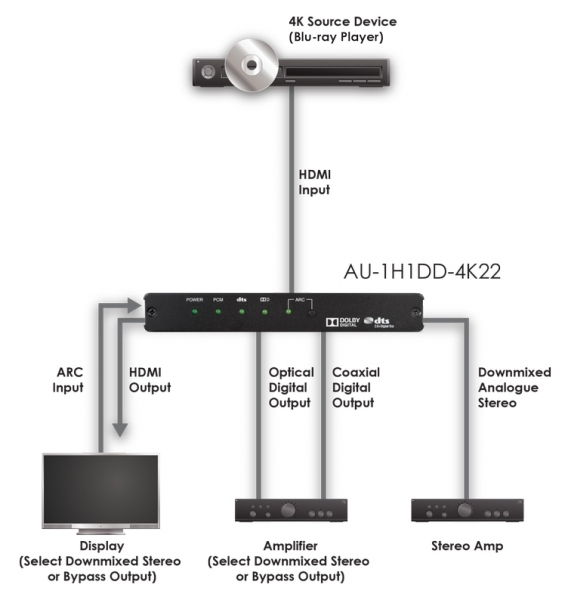

The AU-1H1DD-4K22 advanced HDMI De-embedder down-mixes audio signals from the HDMI output up to Dolby Digital, DTS 2.0 as a digital output. The AU-1HDD-4K22 connects audio between display and source via HDMI output and set to either 2CH LPCM or bypass.
Featured are analogue outputs (L/R) available to down-mix stereo with audio up to Dolby Digital and DTS 2.0 with Digital Out.
The AU-1H1DD-4K22 supports 4K2K resolutions and HDMI 2.0/HDCP 2.2 for a high quality performance.
