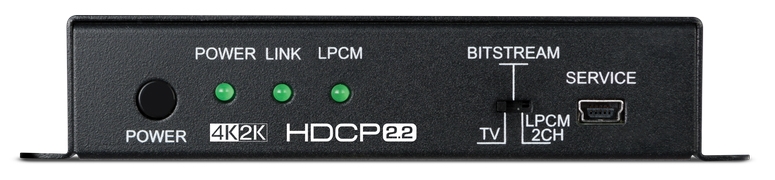

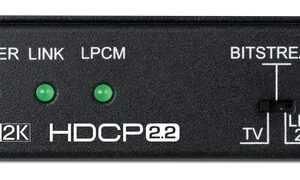

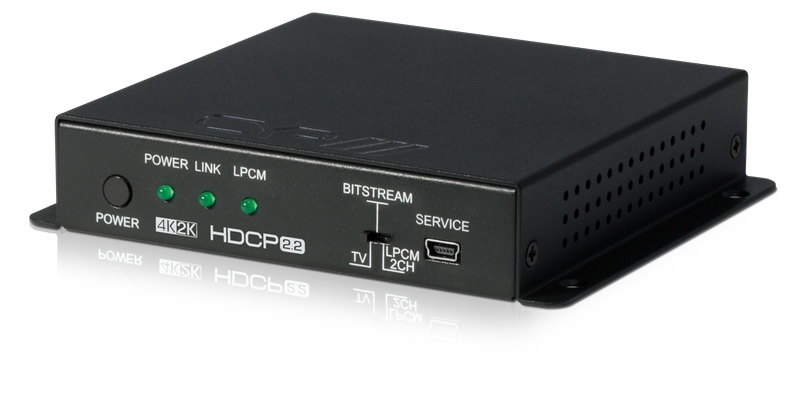

HDMI AUDIO DE-EMBEDDER
The AU-11CD-4K22 is an advanced solution for repeating HDMI with integrated Audio de-embedding, up to 5.1.
- HDMI2.0, HDCP 2.2, and DVI compliant
- Supports HDTV resolutions up to 4Kx2K (3840x2160@24/25/30/ 50/60 YUV_444 & 4096x2160@24/25/30/50/60 YUV_444).
- Supports bypass of high resolution digital audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio
- Supports HDMI audio sampling rate up to 192 kHz
- Supports Optical S/PDIF audio sampling rate up to 192 kHz
- Supports external HDMI, Digital or Analog audio signal embeds into HDMI
- HDMI supports high-bit-rate (HBR) audio
- Supports DVI conversion with HDMI to DVI adaptor
- Supports CEC bypass
- Supports analog stereo L/R and Optical S/PDIF audio outputs
Features
HDMI2.0, HDCP 2.2, and DVI compliant
Supports HDTV resolutions up to 4Kx2K (3840×2160@24/25/30/ 50/60 YUV_444 & 4096×2160@24/25/30/50/60 YUV_444).
Supports bypass of high resolution digital audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio
Supports HDMI audio sampling rate up to 192 kHz
Supports Optical S/PDIF audio sampling rate up to 192 kHz
Supports external HDMI, Digital or Analog audio signal embeds into HDMI
HDMI supports high-bit-rate (HBR) audio
Supports DVI conversion with HDMI to DVI adaptor
Supports CEC bypass
Supports analog stereo L/R and Optical S/PDIF audio outputs
Product Description
The AU-11CD-4K22 HDMI De-Embedder & Repeater repeats HDMI and HDCP with integrated Audio de-embedding (up to 5.1) enabling distribution of audio signal from UHD video paths.
The AU-11CD-4K22 supports HDMI 2.0, HDCP 2.2 and 4K for Ultra High Definition solutions and extends the 4K2K at 60 resolution transmission distance by a further 5m from the HDMI output.
