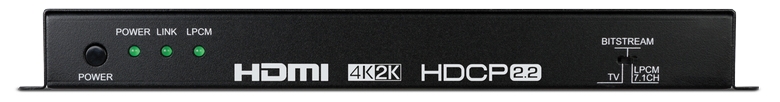

HDMI 7.1 Audio De-embedder
The AU-11SA-4K22 HDMI Audio De-embedder with built-in Repeater has been manufactured to receive and de-embed two or more channels of audio from the…
- HDMI audio de-embedder with built-in repeater
- HDMI 2.0, HDCP 2.2 and DVI compliant
- 4K video up to 4096 x 2160 at 60Hz

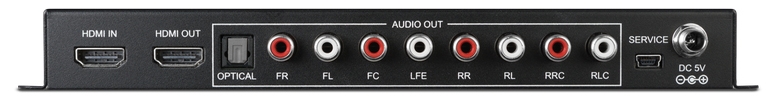

- 7.1 analogue outputs on 8 RCA connectors
Features
- HDMI audio de-embedder with built-in repeater
- HDMI 2.0, HDCP 2.2 and DVI compliant
- 4K video up to 4096 x 2160 at 60Hz
- 7.1 analogue outputs on 8 RCA connectors
- Optical output for LPCM, Dolby Digital and DTS up to 5.1
- HDMI bypass passes Dolby TrueHD, Dolby Digital Plus and DTS-HD MA
- Audio sampling rates up to 192kHz
- CEC bypass
Product Description

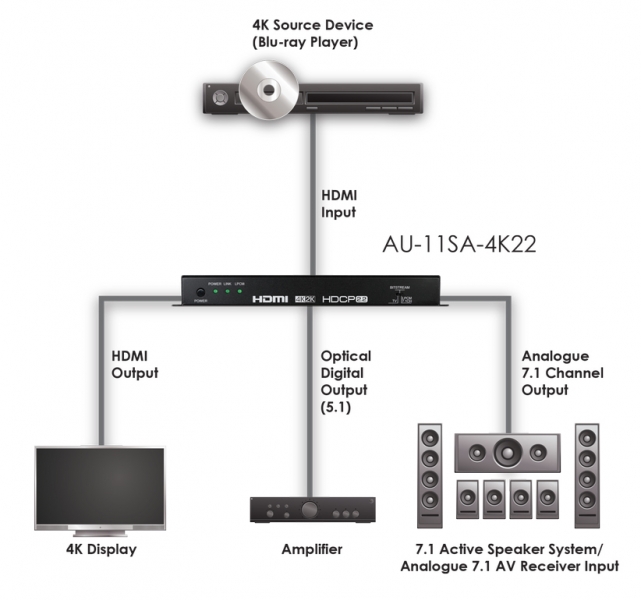

The AU-11SA-4K22 HDMI Audio De-embedder with built-in Repeater has been manufactured to receive and de-embed two or more channels of audio from the HDMI input to 7.1 analogue audio, 5.1 optical audio, and a HDMI bypass output.
The AU-11SA-4K22 functions as a repeater where it does not resample the HDMI audio but carries it through to output sources un-changed such as; Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, LPCM 7.1CH, DTS-HD Master Audio.
Audio sampling rates are supported up to 192kHz.
The AU-11SA-4K22 supports 4K video resolution, HDMI 2.0 and HDCP 2.2.
