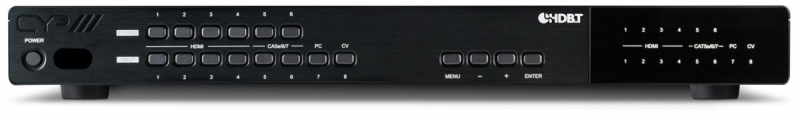

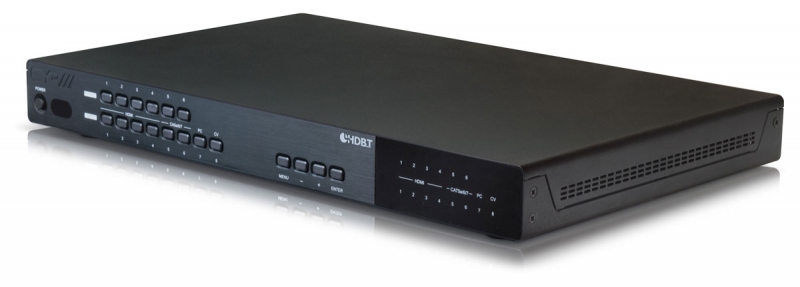

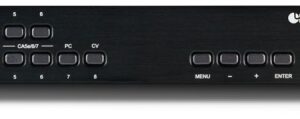

HDBASET PRESENTATION SWITCH

EL-5500-HBT Advanced Presentation Switcher features 8 x various AV inputs and 3 x AV outputs to provide the user with flexibility and control of their presentation system using multiple format AV sources.

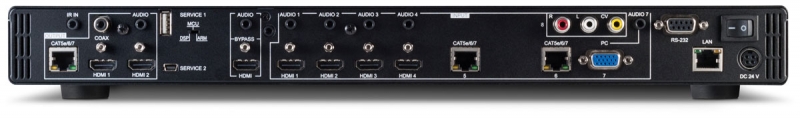

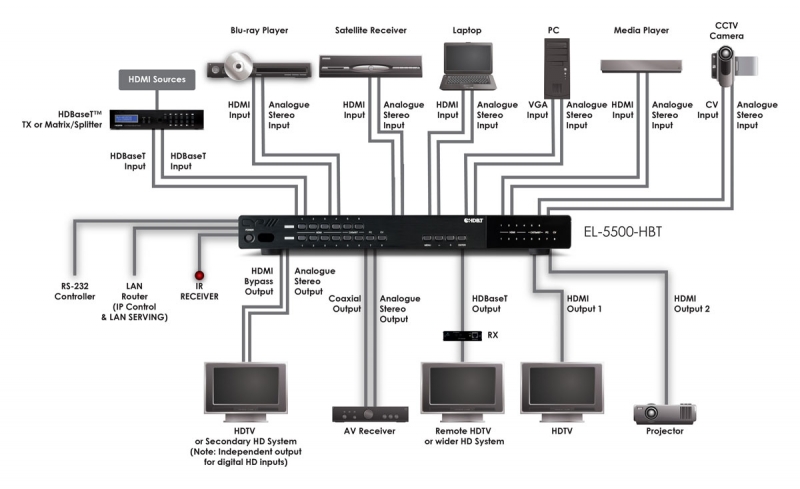

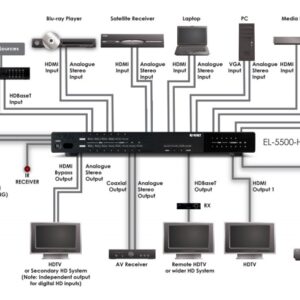

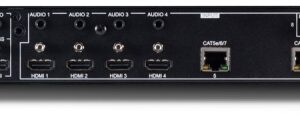

The CYP EL-5500HBT features 4 x HDMI Inputs, 2 x HDBaseT, 1 x Composite video and 1 x VGA Input allowing for HD sources such as BluRay / DVD / Sky TV, non-HD sources such as PC / laptop, plus the ability to receive 2 x HDBaseT signals from CYP Transmitters.

The user can then choose from any one of the 8 connected various mixed media AV sources, which will be outputted to the EL-5500-HBT’s 2 x HDMI, 1 x HDBaseT and 1 x HDMI bypass outputs.

Therefore, a wide variety of HD and non-HD sources can easily be integrated into a boardroom / classroom / presentation suite AV system and the user can quickly and simply switch to their choice of signal to be outputted to the various displays. For any non-HD sources connected, the Presentation Switcher will automatically scale the video signals for HDMI output.

Both digital and analogue stereo audio is supported via a built-in DAC (Digital to Analogue Converter) and ADC (Analogue to Digital Converter) providing flexible audio signal integration.

The CYP EL-5500-HBT Presentation Switch also features a switchable digital bypass output, allowing any HDMI or HDBaseT input signal to be directly bypassed via the ‘third’ HDMI bypass output.
