CYP12107

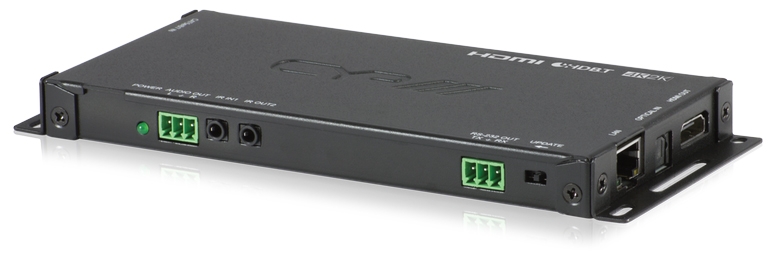

HDBASE T 2.0 SLIMLINE RECEIVER UHD

The PUV-2000RX Receiver supports all the latest professional Audio Visual Standards including the new HDBaseT version 2.0 and 4K UHD ultra-high definition video resolutions.

Supports full HDBaseT 2.0 specification signals can be received up to a maximum distance of 100m over CAT6a/7
HDCP 2.2, HDMI and DVI compatible
HDBaseT 5-Play convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output displays EDID settings
4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Optical audio return (OAR)
Supports optical sampling rate up to 48kHz
Audio return channel (ARC)
Dedicated channel for analogue stereo audio transmission from a compatible transmitter to receiver
Ultra slim chassis design for ease of installation

Features

Supports full HDBaseT 2.0 specification signals can be received up to a maximum distance of 100m over CAT6a/7

HDCP 2.2, HDMI and DVI compatible

HDBaseT 5-Play convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)

Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output displays EDID settings

4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7

Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio

Optical audio return (OAR)

Supports optical sampling rate up to 48kHz

Audio return channel (ARC)

Dedicated channel for analogue stereo audio transmission from a compatible transmitter to receiver

Product Description

The PUV-2000RX HDBaseT 2.0 Receiver is the latest AV signal-over-cat Cable Receiver from CYP.

The PUV-2000RX Receiver supports all the latest professional Audio Visual Standards including the new HDBaseT version 2.0 and 4K UHD ultra-high definition video resolutions.

Designed for use with the CYP PUV-2000TX Transmitter, the PUV-2000RX is a slimline receiver device which also supports simultaneous transmission over Cat 5e/6/7 cable of HD audio, 2-way IR, RS-232, PoH (Power-over-HDBaseT) and LAN signals over distances of up to 100 metres.

The PUV-2000RX Slimline Receiver supports video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), and LAN signals up to 100m. Utilising the latest HDBaseT 2.0 technology, this solution provides advanced signal management and dedicated audio pathways to ensure reliable results in the most demanding installation environments.

In addition to the full 5-Play convergence, this device also incorporates OAR (Optical Audio Return) and ARC (Audio Return Channel) functions which enable audio from a compatible display to be routed back from the receiver unit to the transmitter. All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 100m.

All of these features are encorporated into an ultra slim casing (less than 18mm thick), providing unrivalled flexibility and ease of installation.

Specification
