Domestic Induction Loop Kit 50m2 (Amp, Scart, APL plate, loop cable)
The PDA103S kit Includes everything you need to create a high quality domestic hearing loop system for bedrooms, living rooms, TV lounges and studies up to 50m² in size (7m x 7m). The PDA103 amplifier includes a 3.5mm microphone input, a line level input, a digital ‘TOS’ link connector and an ‘outreach’ socket.
- Metal compensation control helps improve intelligibility in rooms with high metal content
- Adjustable mic, line level and 'outreach' controls
- Drive (level) control allows the amplifier's output stage to be set-up to suit the exact characteristics of the application
- Limit, Peak, Loop Fault and Power On indicators
- Designed to be wall-mounted using the keyholes provided
- Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed
- Supplied with 40 metre loop cable
Features
Metal compensation control helps improve intelligibility in rooms with high metal content
Adjustable mic, line level and ‘outreach’ controls
Drive (level) control allows the amplifier’s output stage to be set-up to suit the exact characteristics of the application
Limit, Peak, Loop Fault and Power On indicators
Designed to be wall-mounted using the keyholes provided
Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed
Supplied with 40 metre loop cable
Product Description
The PDA103S Domestic Induction Loop kit Includes everything you need to create a high quality domestic hearing loop system for bedrooms, living rooms, TV lounges and studies up to 50m² in size (7m x 7m). The PDA103 Induction Loop amplifier includes a 3.5mm microphone input, a line level input, a digital ‘TOS’ link connector and an ‘outreach’ socket.
The system is designed to connect to TV sets using the amplifier’s ‘Outreach’ connector via the APL plate and SCART lead supplied.
Alternatively, the amplifier can be connected to TV sets using the amplifier’s onboard Digital TOS-link connector and a separately available TOS-link cable. See main instructions for further details.
State-of-the-art audio processor features an automatic gain control which compensates for poor microphone techniques and helps suppress loud noises, hisses and clicks.

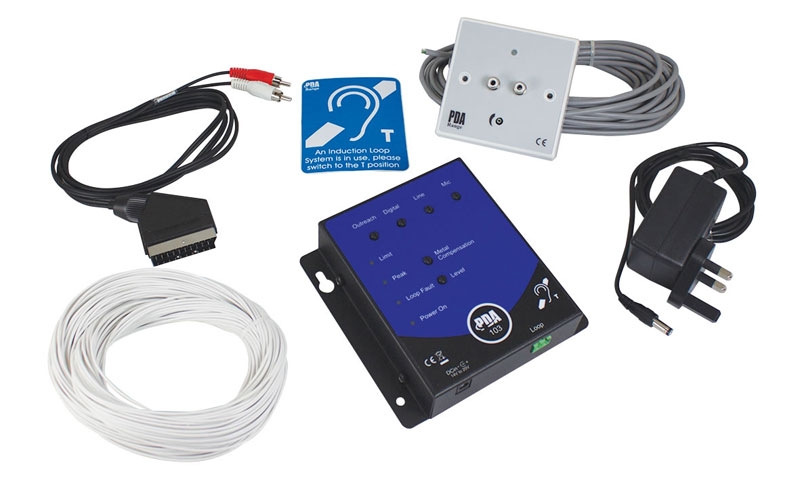

KIT INCLUDES:
- PDA103 amplifier c/w digital TOS link connector
- PL1/PSU1 plugtop power supply
- APL double phone outreach connection plate
- 6m ‘Belden’ cable
- APS SCART to double phono lead
- 40 metre loop cable
- ‘Hearing Loop Fitted’ sticker
