Digital Audio Storage & Replay System

The LB-8A Digital Voice Unit is our latest generation Clever Little Box, providing a digital audio store and replay solution for integration into installed audio / PA systems.

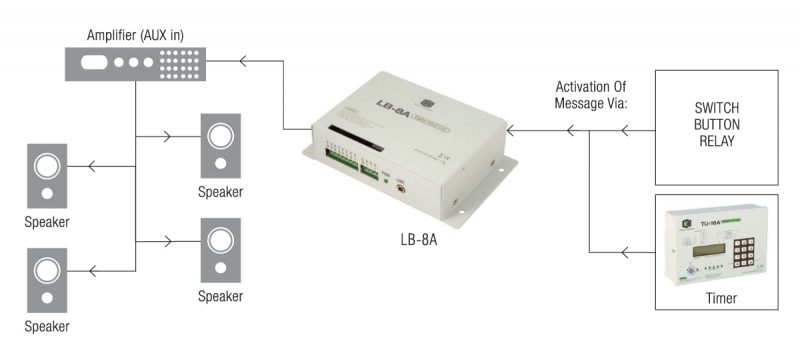

Replacing our previous LB-5A model, this brand new, super-compact Audio Store & Replay unit uses an internal, secure 4GB SD Card to store and replay a choice of 8 different recorded messages and / or tones which are activated via voltage-free (dry) contact closures (such as switch relays or timer units).

The LB-8A Digital Audio Store is supplied with 8 pre-loaded Tones and Chimes; however, these can easily be replaced with the user’s own choice of bespoke Tones or Voice Messages by copying pre-recorded audio WAV files onto the unit’s internal SD Card.
Any selected messages/tones will remain playing/active for as long as the activation contact is triggered, once any trigger is removed the message will complete the playback of the selected file and reset, waiting for the next activation/trigger.

The LB-8A is ideal for applications such as retail audio advertising, school class change, factory shift change, health & safety / warning messages, vehicle safety warning messages, plus many more…

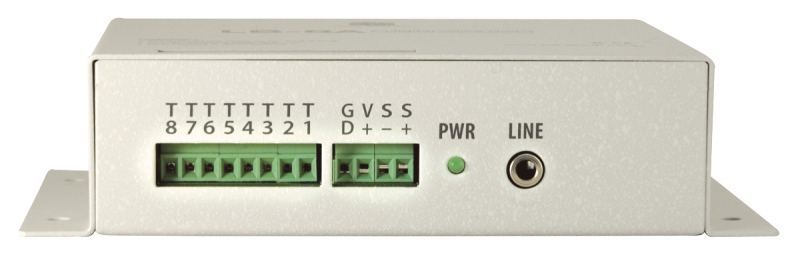

The Unit is housed within a compact, rugged and secure metal enclosure with connections made via a screw terminal block.

Power is provided from a 15v DC plugtop PSU (supplied), or from an external 12v power supply.

SAMPLE TONES & CHIMES:
Whoop, Two-Tone, GMT Pips, Continuous, 4 Note Chime (ascending), 4 Note Chime (descending), 2 Note Chime (Ding Dong), 4 Note Chime (ascending soft)

• TONE 1
• TONE 2
• TONE 3
• TONE 4
• TONE 5
• TONE 6
• TONE 7
• TONE 8
