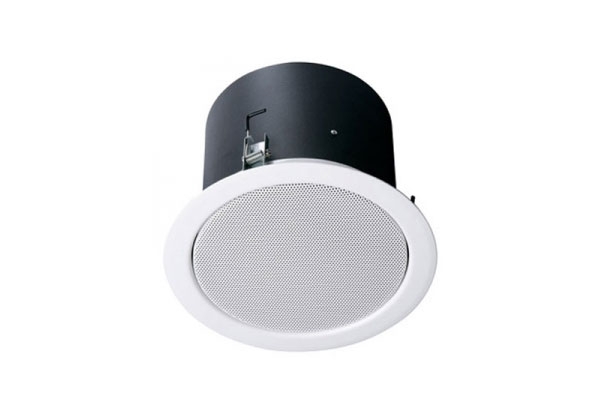

Ceiling Speaker – EN54 safe

The DL-E-AB06-100/T-EN54 A/B-line ceiling speaker is designed with high quality plastic contact protection for voice alarm applications, EN 54-24 certified, suitable for voice announcements and background music with excellent sound quality in buildings.

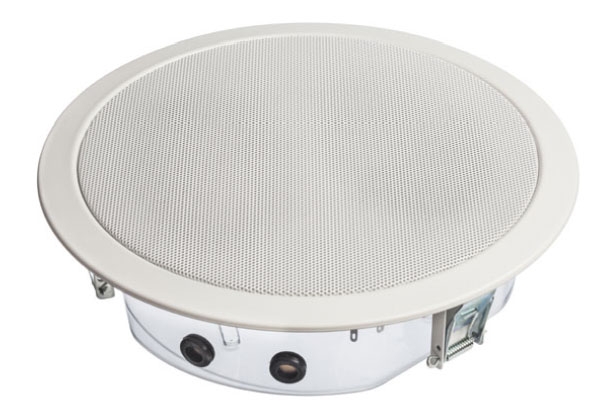

The DL-E-AB06-100/T-EN54 is a 2 x 6W powered ceiling speaker equipped with two full-range loudspeakers and two 100V transformer with 3 power adjustments, each. An extremely flat construction method allows a low mounting depth.

For additional safety ceramic blocks, thermal fuses are provided and the speaker chassis is impregnated against dampness. The DL-E-AB06-100/T-EN54 is also IP21C rated this secures the speaker against the impact of environmental influences.

With quick and easy mounting with spring clamps and short tension distance, the DL-E-AB06-100/T-EN54 is perfectly suitable for installations where the installation depth is very limited.

This ceiling speaker is suitable for a ceiling strength of 3 – 45 mm. This specification is primarily related to solid ceilings, for ceilings with soft materials a higher ceiling thicknesses could be necessary. In addition, stronger cables and other fittings may also result in changes of the appropriate setup.
