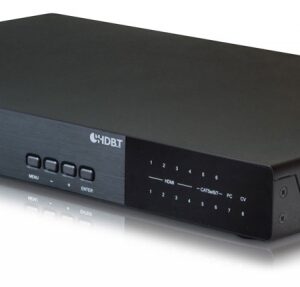

The CYP EL-8500VA is an advanced 4K presentation switcher. Seamlessly connect diverse sources, scale content flawlessly and deliver stunning visuals and pristine audio in any professional setting.

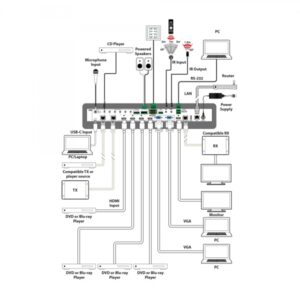

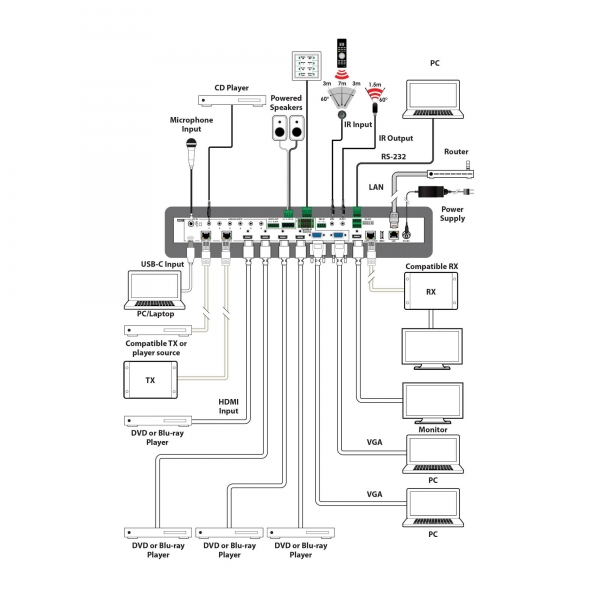

Supports switching and scaling of all AV inputs for display over the mirrored HDMI and HDBaseT outputs
Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output Note: The HDBaseT output will automatically down-convert 4K50/60(4:4:4) sources to 4K50/60(4:2:0) to maintain compatibility
HDBaseT output transmits video and audio over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p and 70m/230ft at 4K
Supports pass-through of many audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
Audio mixer function allows the mixing of audio from any analogue input with the microphone input
Built in 2 x 20 watts audio amplifier
Trigger Control Keypad support for easy, single-button, function activation (Optional)
Supports standard 48V PoH from the HDBaseT output (PSE) to a connected HDBaseT receiver (PD) (compatible receivers only)
Comprehensive EDID and HDCP management (HDCP 2.2)
Controllable via front panel controls with OSD, RS-232, Telnet, Web GUI, and triggers
USB for service/firmware updates
USB Type-C port provides up to 60W of power to connected devices

Key Features & Benefits:

Universal Connectivity, Uncompromised Quality:

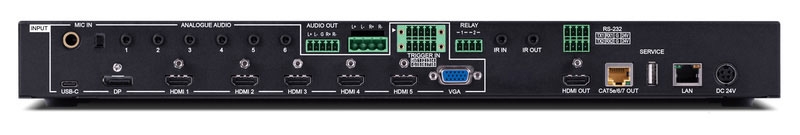

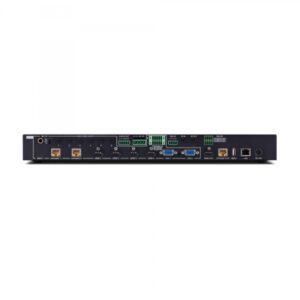

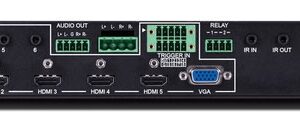

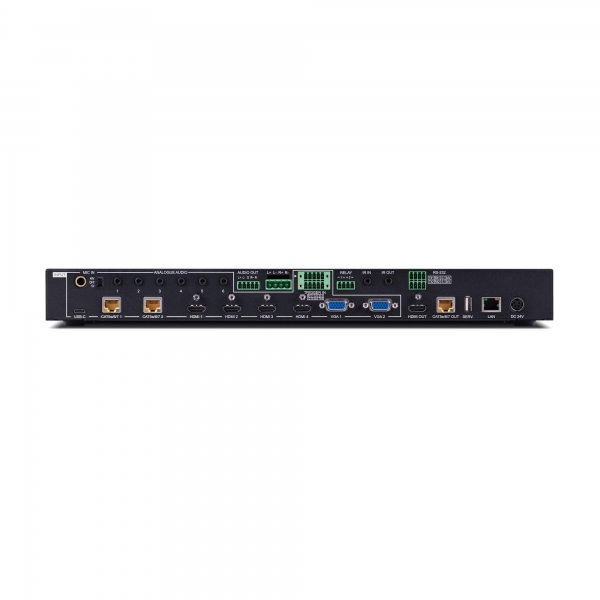

The EL-8500VA boasts an impressive array of inputs, including 4 x HDMI, 2 x HDBaseT, 2 x VGA, and 1 x USB-C ensuring compatibility with virtually any source device. Experience stunning visuals with support for 4K UHD (18Gbps, 4K@60Hz 4:4:4, 8-bit) on HDMI and USB-C inputs, providing breathtaking detail and vibrant colours for your content.

Intelligent Scaling for Flawless Display:

No more worrying about resolution mismatches. The EL-8500VA features advanced scaling capabilities allowing you to output a scaled resolution of your choice over mirrored HDMI and HDBaseT outputs. This guarantees your content always looks its best, regardless of the display’s native resolution.

Extended Reach with HDBaseT:

Deliver video and audio over long distances with integrated HDBaseT outputs. Transmit 4K signals up to 70 meters and 1080p signals up to 100 meters over a single Cat. 5e/6/7 cable, dramatically simplifying installations and reducing cable clutter. Plus, with 48V PoH (Power over HDBaseT) compatible receivers can be powered directly from the EL-8500VA, streamlining your setup even further.

Integrated Audio Powerhouse:

Beyond video, the EL-8500VA offers comprehensive audio management. An amplified analogue stereo output complements multiple analogue stereo audio inputs and a dedicated microphone input. The built-in audio mixer function empowers you to seamlessly blend audio from any analogue input with the microphone, perfect for lectures, presentations or conferencing.

Seamless Control & Flexibility:

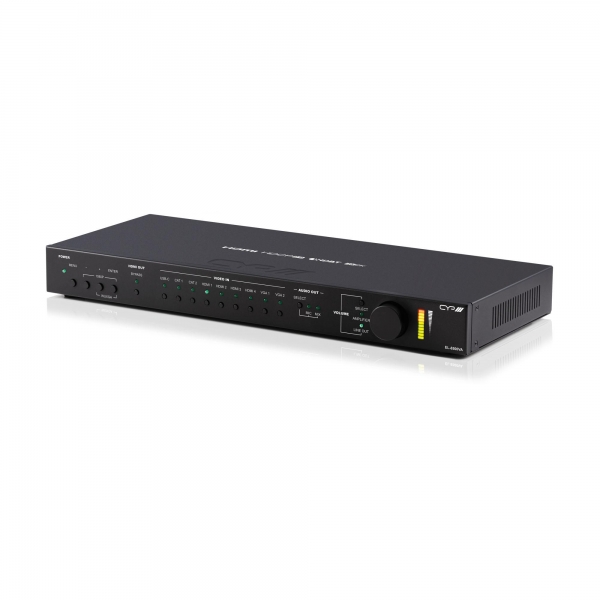

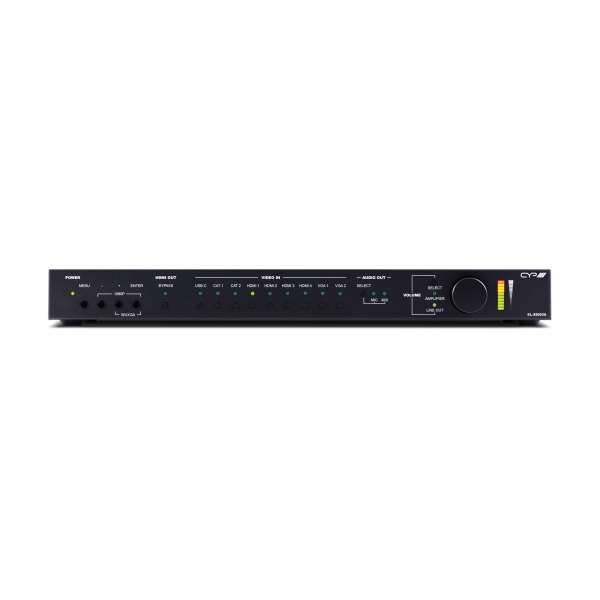

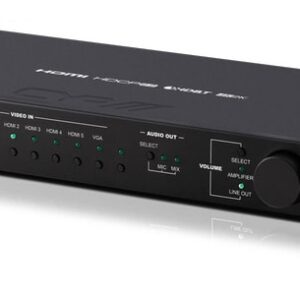

Control is at your fingertips with a variety of options. Operate the EL-8500VA via convenient front panel buttons with On-Screen Display (OSD), a user-friendly WebGUI, IR remote, Telnet and RS-232. An optional trigger control keypad further simplifies operations, enabling single-button activation of key functions.

Robust & Reliable Performance:

Built for demanding environments, the EL-8500VA features comprehensive EDID and HDCP 2.2 management, ensuring stable and secure content delivery. Firmware updates are easily managed via USB, keeping your system future-proof.

Where the EL-8500VA excels:

The CYP EL-8500VA is an indispensable tool for any organisation or space requiring a versatile, high-performance AV switching and scaling solution. Its comprehensive feature set makes it ideal for:
