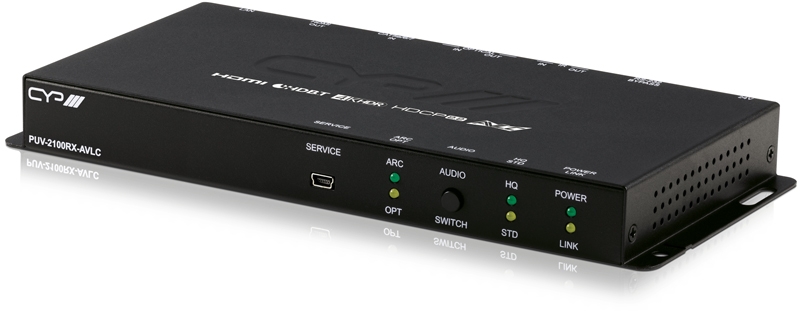

The PUV-2100RX-AVLC HDBaseT 2.0 HDR Receiver accepts up to 4K UHD video resolutions, including Dolby Vision and 10/12-bit HDR, along with HD audio, RS-232, PoH, 2-way IR, LAN signals to be received up to a distance of 100 metres.
- HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible
- HDCP 2.2 and HDCP 1.x compliant
- Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output / Supports Deep Colour input and output up to 12-bit / Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output / Supports CEC bypass
- HDBaseT output transmits video, audio and data over a single Cat5e/6/7 cable and can reach distances up to 100m/328ft at 4K when using Cat6a/7
- HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, 48v PoH (PSE), bi-directional optical audio and Control (bi-directional IR/RS-232 pass-through)
- Integrated AVLC (Adaptive Visually Lossless Compression) activates when the bandwidth requirements of the source are beyond 10.2Gbps (340MHz) allowing for sources up to 18Gbps (600MHz) received by a compatible Transmitter with no loss of visual quality
- The AVLC feature allows, manual selection between High Quality Mode (Full bandwidth) and Standard Mode (Lower bandwidth, useful for longer cable runs with 4K sources)
- Bi-directional optical audio extension support
- Supports HDMI DDC bus clock stretching for improved compatibility with certain Blu-ray players
- Performs TMDS re-clocking and signal re-generation for improved signal integrity
- Supports standard 48v PoH from Transmitter to Receiver (compatible Transmitter only)
Features
HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible
HDCP 2.2 and HDCP 1.x compliant
Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output / Supports Deep Colour input and output up to 12-bit / Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output / Supports CEC bypass
HDBaseT output transmits video, audio and data over a single Cat5e/6/7 cable and can reach distances up to 100m/328ft at 4K when using Cat6a/7
HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, 48v PoH (PSE), bi-directional optical audio and Control (bi-directional IR/RS-232 pass-through)
Integrated AVLC (Adaptive Visually Lossless Compression) activates when the bandwidth requirements of the source are beyond 10.2Gbps (340MHz) allowing for sources up to 18Gbps (600MHz) received by a compatible Transmitter with no loss of visual quality
The AVLC feature allows, manual selection between High Quality Mode (Full bandwidth) and Standard Mode (Lower bandwidth, useful for longer cable runs with 4K sources)
Bi-directional optical audio extension support
Supports HDMI DDC bus clock stretching for improved compatibility with certain Blu-ray players
Performs TMDS re-clocking and signal re-generation for improved signal integrity
Product Description
The PUV-2100RX-AVLC HDBaseT 2.0 HDR Receiver accepts up to 4K UHD video resolutions, including Dolby Vision and 10/12-bit HDR, along with HD audio, RS-232, PoH, 2-way IR, LAN signals to be received up to a distance of 100 metres.

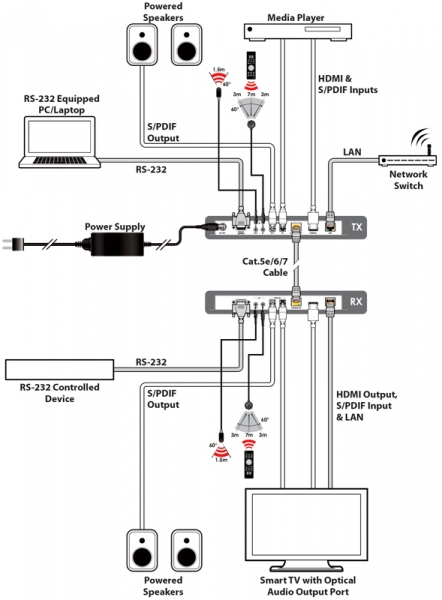

The PUV-2100RX AVLC provides advanced solutions in signal management ensuring reliable results in demanding environments as all audio/video, power and control is transmitted simultaneously over a single Cat6a/7 cable up to a distance of 100m @ 4K 3G and 1080p and at 70m @ 4K 6G.
The transmitter in the PUV-2100-AVLC Series enables 4K UHD received sources up to and including 4K@60Hz, 4:4:4 8bit and 10/12bit sources with HDR, includes Dolby Vision, to the Transmitter PUV-1200TX-AVLC.
Regardless of the 10.2Gbps HDBaseT technology limitation used in the PUV-2100-AVLC Series, this does not impede its ability to transfer and receive data rates of up to 18Gbps to be transferred with AVLC Technology (Adaptive Visually Lossless Compression).
