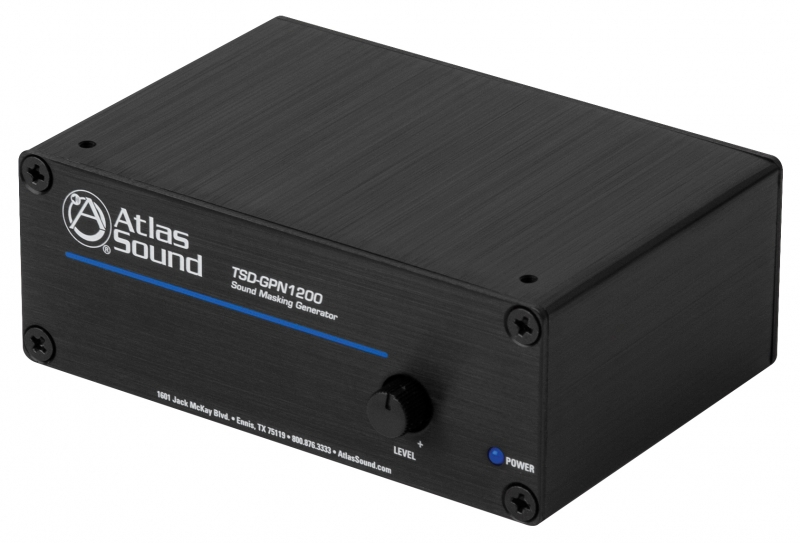

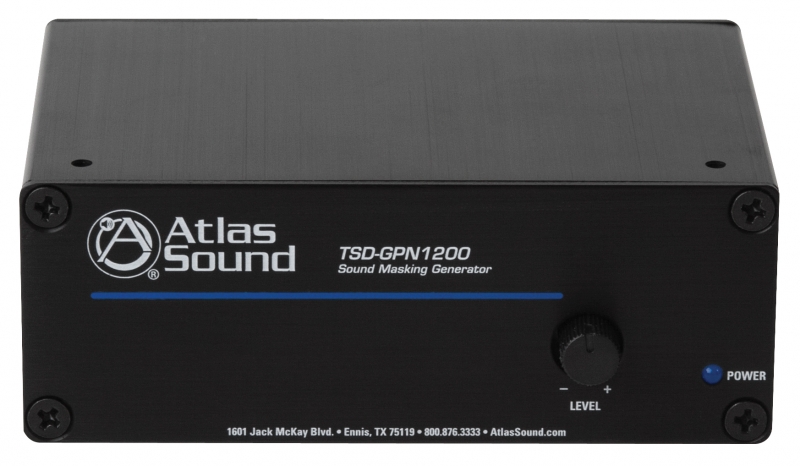

ATLAS TSD SOUND MASKING GENERATOR MODULE

Part of the ‘TSD’ Time Saving Device range, Atlas IED’s new TSD-GPN1200 is an ideal Sound Masking Generator solution for basic sound masking systems, where the provision of white/pink noise is required to mask conversations which may be private (eg. in a doctor’s surgery or pharmacy advice area) or where multiple conversations may be distracting (eg. an open plan sales floor).

The analogue topology of the Masking Generator ensures repetition of cycles – commonly found in other low cost generators – is eliminated.

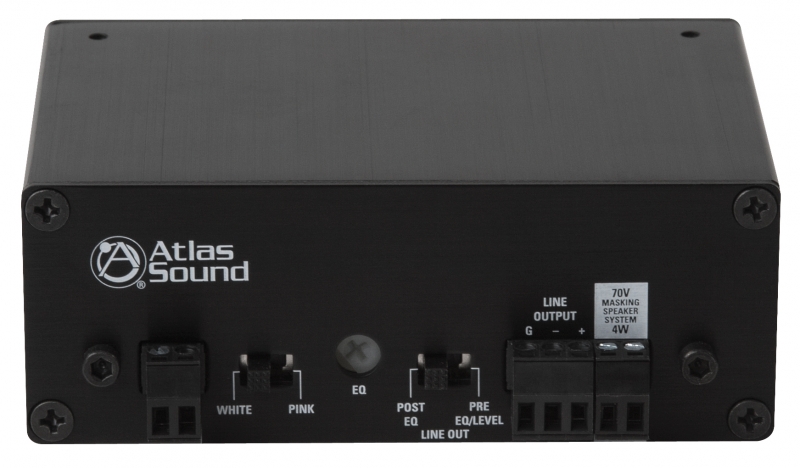

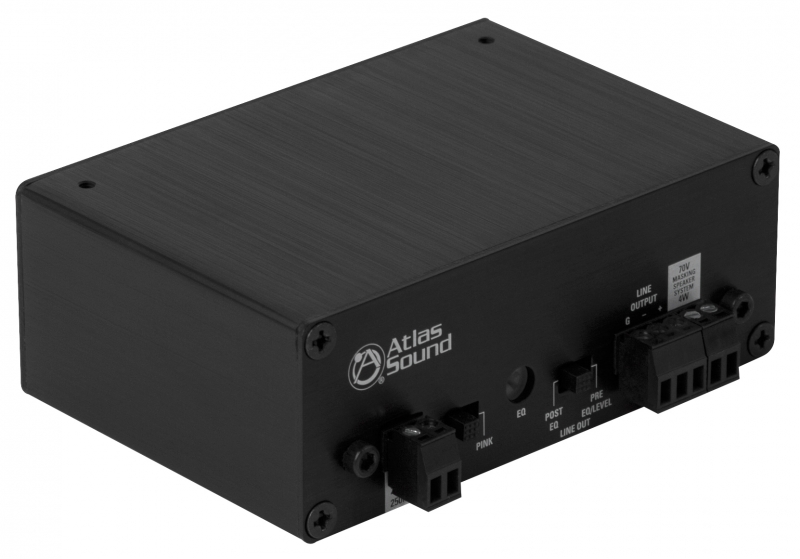

The TSD-GPN1200 allows selection of white or pink noise sources and incorporates a variable balanced output to match input requirements of Atlas IED equalizers and amplifiers.

In addition to the line level output, a 4W 70v (2W @ 100V) output is provided to power up to 6 sound masking loudspeakers (tapped at 0.6W).

Both outputs can be used simultaneously allowing large zones to be screened with external equalization and amplification, while a smaller zone is powered by the 100v amplifier with spectrum control from the integrated hi-cut filter.

Audio Applications
• Audio Sound Masking
• Security Masking
• Pink Noise Generator
• White Noise Generator
• Amplifier

Use with T4818ST Plugtop Power Supply.

Atlas IED Time Saving Device (TSD) range
The TSD- GPN1200 is part of the new Atlas IED ‘Time Saving Device’ (TSD) range – designed to solve many of the most common audio system installation problems with simple, low cost and efficient solutions.

Using high quality components and real-world application design solutions, the TSD range includes compact mixers, amplifiers, pre-amps and a range of audio signal distribution & control devices.

Atlas IED’s Time Saving Devices are feature-loaded and designed with simplicity of installation and use in mind – saving time, money and hassle. Each unit is housed in a highly compact, robust metal housing.
