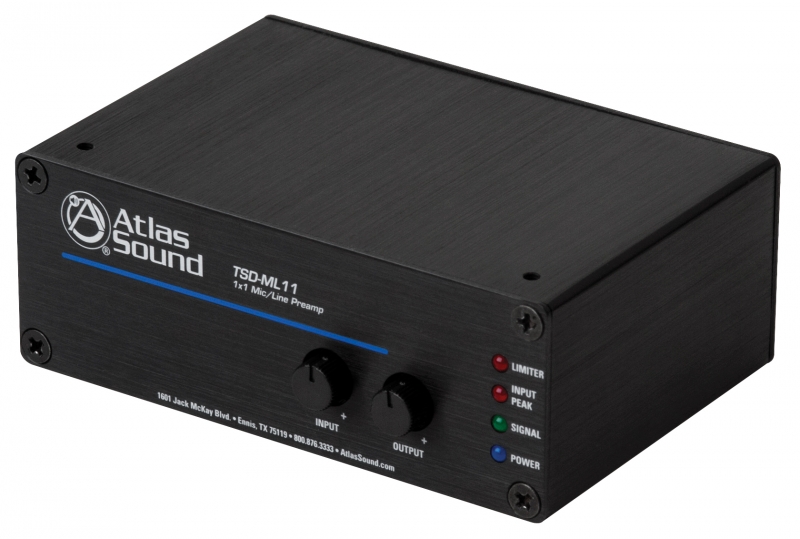

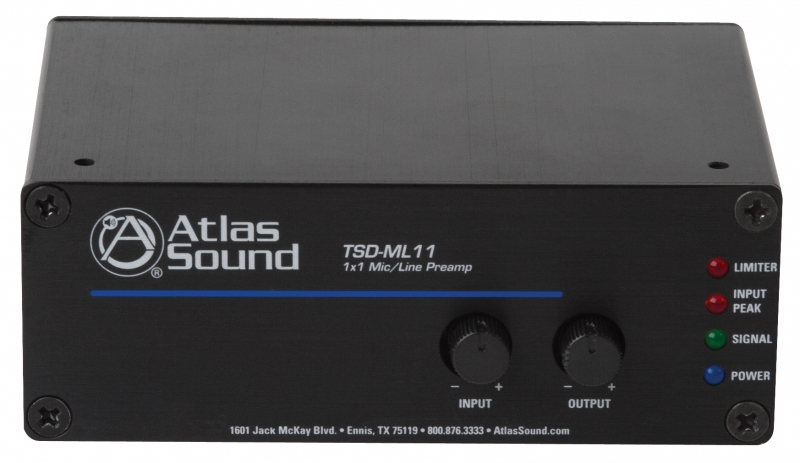

ATLAS TSD PRE AMPLIFIER MODULE

Part of the ‘TSD’ Time Saving Device range, Atlas IED’s new TSD-ML11 is a compact, ‘high headroom’, low noise preamplifier to provide the best possible audio signal performance.

The unit is ideal for use as a stand-alone preamp or in systems requiring mute or push-to-talk facility such as boardrooms, conference rooms, council chambers or courtrooms.

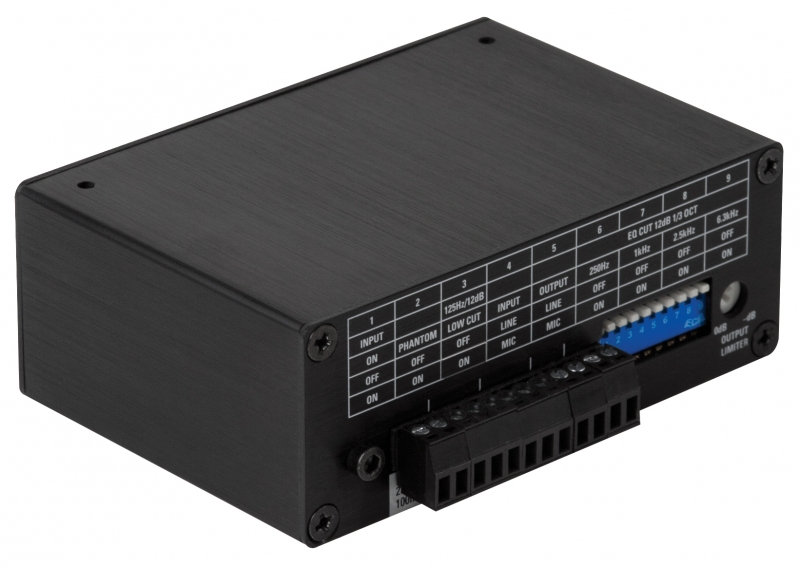

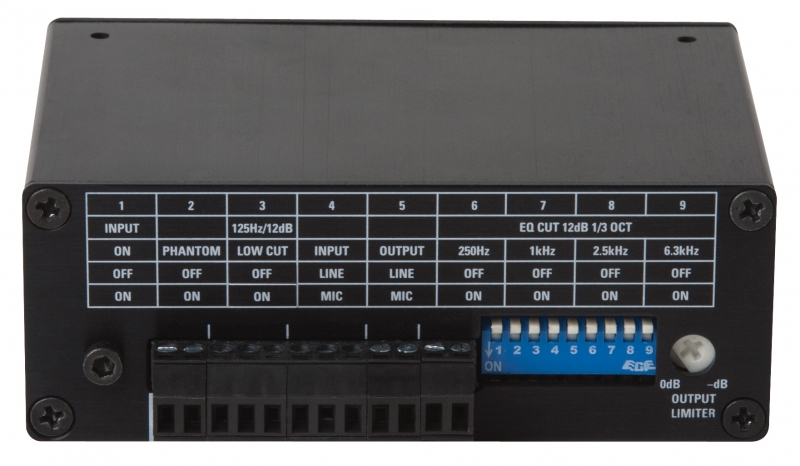

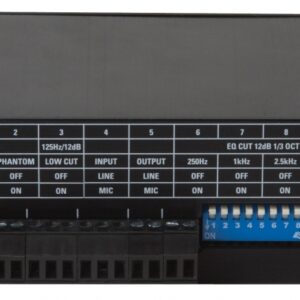

The TSD-ML11 features switchable phantom power for powering condenser microphones and has 4 x EQ cut filters to eliminate feedback and control voice shaping.

The variable mic preamp further assists noise elimination and reduces unwanted tonal changes. The integrated output limiter/compressor helps to avoid clipping and eliminate distortion, whilst the ‘Mic Mute’ and ‘Mic On’ control allows microphones in the system to be push-to-talk enabled or mute for speaker priority.

Audio Applications
• Mic Preamp
• Line Preamp
• Line Drive
• Remote Mic Control

Use with T4818ST Plugtop Power Supply.

Atlas IED Time Saving Device (TSD) range
The TSD-ML11 is part of the new Atlas IED ‘Time Saving Device’ (TSD) range – designed to solve many of the most common audio system installation problems with simple, low cost and efficient solutions.

Using high quality components and real-world application design solutions, the TSD range includes compact mixers, amplifiers, pre-amps and a range of audio signal distribution & control devices.

Atlas IED’s Time Saving Devices are feature-loaded and designed with simplicity of installation and use in mind – saving time, money and hassle. Each unit is housed in a highly compact, robust metal housing.
