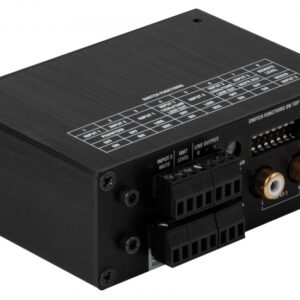

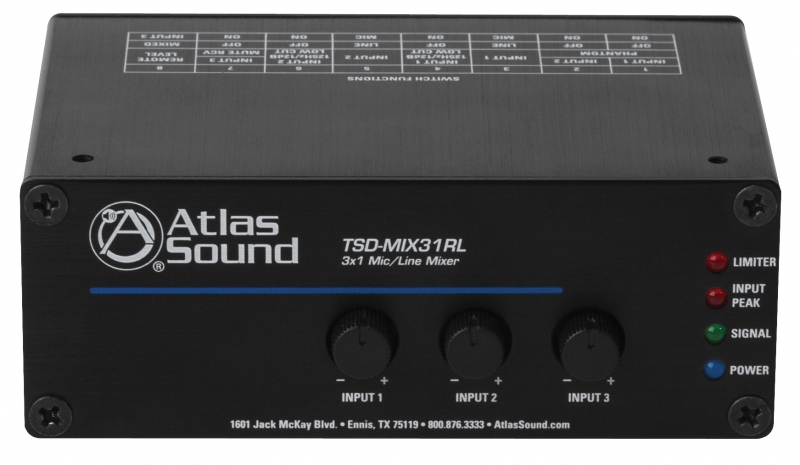

ATLAS TSD 3 INPUT MIC/LINE MIXER

Part of the ‘TSD’ Time Saving Device range, Atlas IED’s versatile new TSD-MIX31RL is a compact 3×1 Mic/Line Mixer ideal for paging, public address and background music applications.

2 x Balanced Mic/Line Inputs
High Gain (50dB) Microphone Preamps
Switchable 24v Phantom Power
1 x Unbalanced Summing Dual RCA Line Input
Vox Sense and Contact Closure Priority Mute of Ch3
Variable Output Limiter
Remote Level Control
12dB/Octave Low Cut Filter @ 125Hz
Input Signal & Peak Indicator LEDs
High Gain Output for driving long Balanced Lines
Separate Ground Connections
Removable Phoenix Style Input/Output connectors

Features

2 x Balanced Mic/Line Inputs

High Gain (50dB) Microphone Preamps

Switchable 24v Phantom Power

1 x Unbalanced Summing Dual RCA Line Input

Vox Sense and Contact Closure Priority Mute of Ch3

Variable Output Limiter

Remote Level Control

12dB/Octave Low Cut Filter @ 125Hz

Input Signal & Peak Indicator LEDs

High Gain Output for driving long Balanced Lines

Product Description

Part of the ‘TSD’ Time Saving Device range, Atlas IED’s versatile new TSD-MIX31RL is a compact 3×1 Mic/Line Mixer ideal for paging, public address and background music applications.

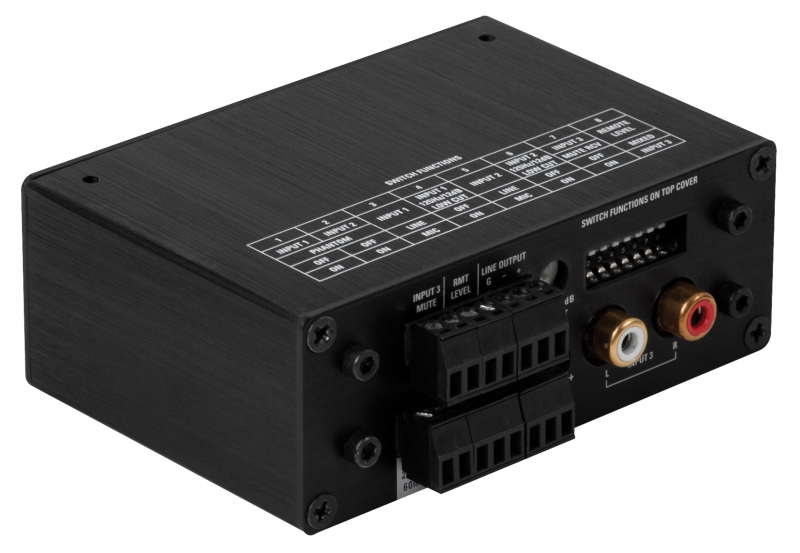

The TSD-MIX31RL includes 2 x mic/balanced line inputs via removable phoenix-style connectors and a stereo summing dual RCS input. Switchable phantom power is provided for both mic inputs for powering condenser microphones and a high pass filter is available on each mic input to minimise bass rumble or low frequency feedback.

Priority paging can be accomplished via contact closure or VOX trigger on Input 1. A variable output limiter provides system protection by reducing clipping and distortion – particularly useful for mixing multiple mic/line sources with varying volumes.

Use with T4818ST Plugtop Power Supply.

Atlas IED Time Saving Device (TSD) range
The TSD-MIX31RL is part of the new Atlas IED ‘Time Saving Device’ (TSD) range – designed to solve many of the most common audio system installation problems with simple, low cost and efficient solutions.

Using high quality components and real-world application design solutions, the TSD range includes compact mixers, amplifiers, pre-amps and a range of audio signal distribution & control devices.

Atlas IED’s Time Saving Devices are feature-loaded and designed with simplicity of installation and use in mind – saving time, money and hassle. Each unit is housed in a highly compact, robust metal housing.
