CYP16791

8×8 HDMI Matrix Switcher UHD HDCP2.2

The OR-88U-4K22 8 x 8 Matrix Switcher has the ability to operate up to 8x 4K UHD HDMI sources to up to 8x 4K UDH HDMI displays and easily switch between them whilst in use.

HDMI 2.0a and DVI 1.0 compliant
HDCP 2.2 Compliant
Eight HDMI inputs matrixed to eight HDMI outputs with 18Gbps (6G) 4K UHD support
Supports UHD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit) plus HDR
Supports 16-bit Deep Color up to 1080p@60Hz
Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
Supports six internal EDIDs, eight external EDIDs copied from connected devices, and four user provided EDIDs
Eight USB ports to supply 5v/1A power to AOC (Active Optical Cable) fiber extension cables
OSD with user definable information text
Controllable via front-panel buttons with LCD, WebGUI, Telnet, RS-232, and IR remote

Features

HDMI 2.0a and DVI 1.0 compliant

HDCP 2.2 Compliant

Eight HDMI inputs matrixed to eight HDMI outputs with 18Gbps (6G) 4K UHD support

Supports UHD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit) plus HDR

Supports 16-bit Deep Color up to 1080p@60Hz

Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream

Supports six internal EDIDs, eight external EDIDs copied from connected devices, and four user provided EDIDs

Eight USB ports to supply 5v/1A power to AOC (Active Optical Cable) fiber extension cables

OSD with user definable information text

Controllable via front-panel buttons with LCD, WebGUI, Telnet, RS-232, and IR remote

Product Description

The CYP OR-88U-4K22 8 x 8 Matrix Switcher has the ability to operate up to 8x 4K UHD HDMI sources to up to 8x 4K UDH HDMI displays and easily switch between them whilst in use.

This Matrix Switcher fully supports 18Gbps (6G) resolutions up to 4K@60Hz (4:4:8, 8-bit), 16-bit Deep Color up to 1080p@60Hz, HDR (High Dynamic Range), HD audio including other features supported by HDMI2.0a.

The OR-88U-4K22 comprehensive EDID management system with built-in default, copied from sync devices and configurable EDID, enables the Matrix to problem solve several issues for smooth and easy interconnectivity.

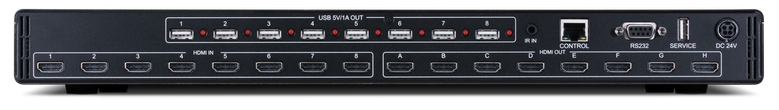

The Matrix further features Active Optical Cables (AOC), used with the 8x USB ports, 5v/1A, for better HDMI expansion, extending HDMI signals further than standard cables. The built-in OSD also displays two lines of custom text, entry-defined and colour-coded by the user, above the video display source.

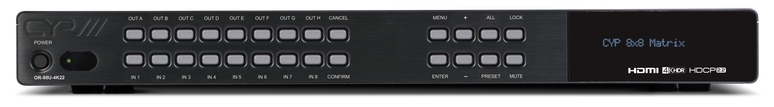

The OR-88U-4K22 features intuitive front panel controls with RS-232, LCD, WebGUI, IR remote and Telnet options.

Specification
