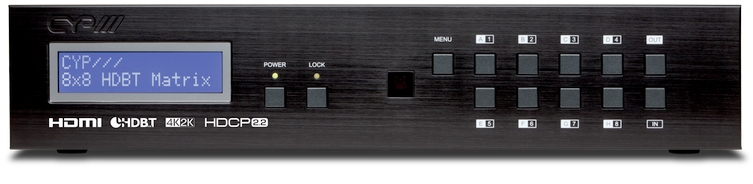

8X8 HDMI HDBaseT Matrix with POC
PU-8H8HBTPL-4K22 8 HDMI to 8 HDBaseT Lite Matrix supporting 4K UHD resolutions and the latest HDCP version 2.2.
- HDCP 2.2 Compliant
- Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2)
- Uncompressed video/audio up to 10.2Gbps
- 1080p including 3D can be transmitted up to 60 meters and 4K UHD signals up to 40m via CAT6a/7
- PoC (Power over Cable) feature available on compatible receivers only
- Features bi-directional IR from input and output locations
- The PU-8H8HBTPL-4K22 can be controlled via RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
- 2U Size Design
- Supports external and internal EDID settings
Features
Product Description

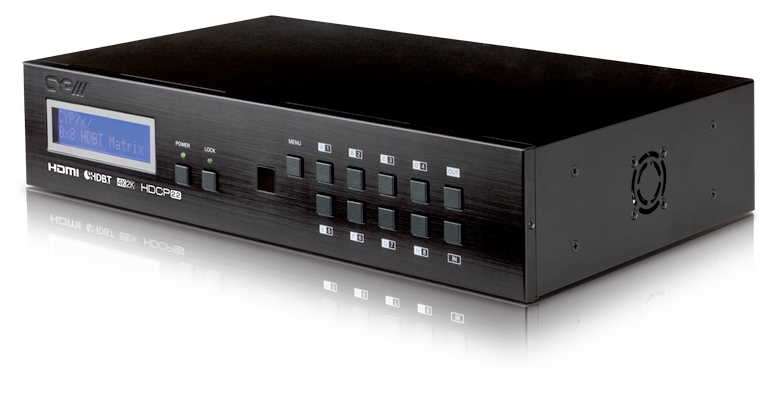

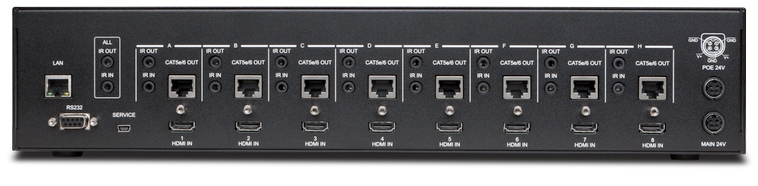

The CYP PU-8H8HBTPL-4K22 is an advanced, professional AV Matrix providing 8 HDMI inputs to 8 HDBaseT Lite outputs.
This latest version of CYP’s leading Matrix range supports the highest 4K UHD video resolutions, together with the latest HDCP 2.2.
Supporting HDBaseT Lite, the PU-8H8HBTPL-4K22 simultaneously transmits 4K UHD video signals and multi-channel digital audio from the 8 HDMI inputs, Power-over-Cable (PoC) and control signals over standard Cat5e/6/7 cable.
Each of the 8 HDBaseT Lite combined signals can be transmitted over Ethernet cable to distances of up to 60 metres.
This 8×8 HDMI HDBaseT Lite Matrix supports high definition digital audio formats such as LPCM7.1CH, Dolby True HD, Dolby Digital Plus and DTS-HD Master Audio.
The professional Matrix also supports transmission and control of 3D video content signals.
The CYP PU-8H8HBTPL-4K22 can be set-up and controlled via a number of different formats: directly via manual selection buttons on the front of the device; or remotely via 2-way infrared, RS-232, Telnet or Web GUI and control drivers available for a wide range of third-party control systems.
This HDMI / HDBaseT Matrix is designed for use with CYP’s HDBaseT Lite PoC-compatible Receiver models only.
Recommended CYP Receiver Models:
PU-515PL-RX & PU-515PL-WPRX
This HDMI HDBaseT Matrix is also available as a full HDBaseT 5Play version – Part No. PU-8H8HBTE-4K22
