CYP11065

6X2 UHD HDMI SWITCH

OR-HD62CD Ultra High Definition HDMI Switch with 6 HDMI Inputs and 2 HDMI Outputs. 4k resolution support. Additional Picture-on-Picture functionality.

HDMI, HDCP 1.1, DVI 1.0 compliant
Resolutions supported : HDTV - 480i to 1080p plus 1080p24fps, and 4K2K; PC - VGA to WUXGA;
High Definition audio supported : Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio + 7.1 Channel LPCM
RS-232, Telnet or IP Control, IR Remote Control (supplied), Web GUI Control
Supports audio extraction from HDMI input to Optical output, input audio sampling rate up to 192 kHz
Ability to switch between any two sources within 1 second
Supports 3D signals
Cutting edge Picture in Picture preview function

Features

HDMI, HDCP 1.1, DVI 1.0 compliant

Resolutions supported : HDTV – 480i to 1080p plus 1080p24fps, and 4K2K; PC – VGA to WUXGA;

High Definition audio supported : Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio + 7.1 Channel LPCM

RS-232, Telnet or IP Control, IR Remote Control (supplied), Web GUI Control

Supports audio extraction from HDMI input to Optical output, input audio sampling rate up to 192 kHz

Ability to switch between any two sources within 1 second

Supports 3D signals

Cutting edge Picture in Picture preview function

Product Description

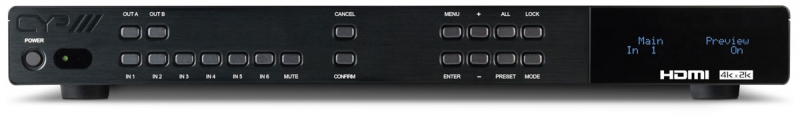

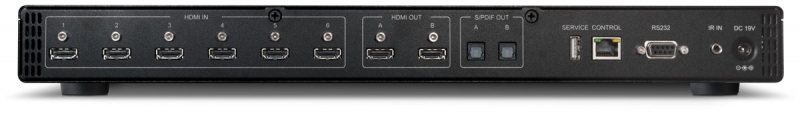

The OR-HD62CD from CYP is a Ultra High Definition (UHD) HDMI Switch providing 6 x HDMI inputs and 2 x HDMI outputs.

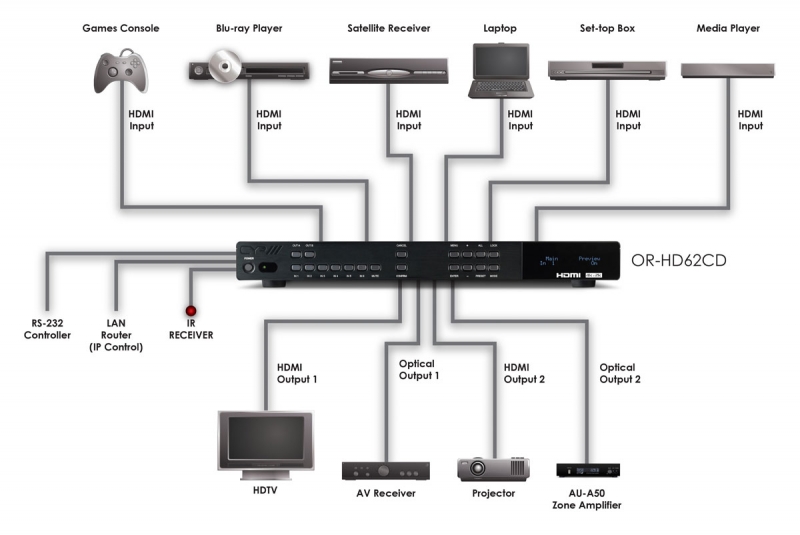

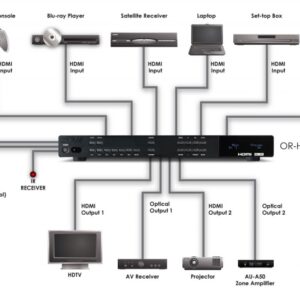

The ORHD62CD features fast switching technology to dramatically improve the sync time when switching to HDMI displays compared with standard switchers. This UHD Switcher will allow up to 6 x HDMI sources (including 4k resolution) to be inputted and distributed to either or both of its HDMI outputs.

This advanced Switcher also features cutting-edge Picture-on-Picture preview functionality, allowing 5 ‘unselected’ sources to be displayed as a row of 5 small windows, overlaid on top of the main selected HDMI source signal. (please note that in this mode, both HDMI outputs will display the same feed.

The CYP OR-HD62CD allows the de-embedding of hi-definition audio via a dedicated optical output for each of the two HDMI outputs. Features also include 4k ultra high definition video support and 3D signal support.

Control is via front panel buttons, IR remote control, RS-232, Telnet or IP control, allowing easy integration into third party remote access control systems.

Specification
