CYP17050

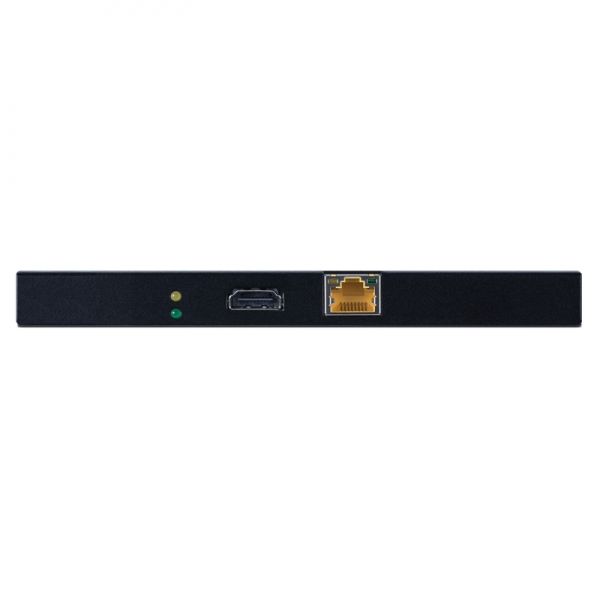

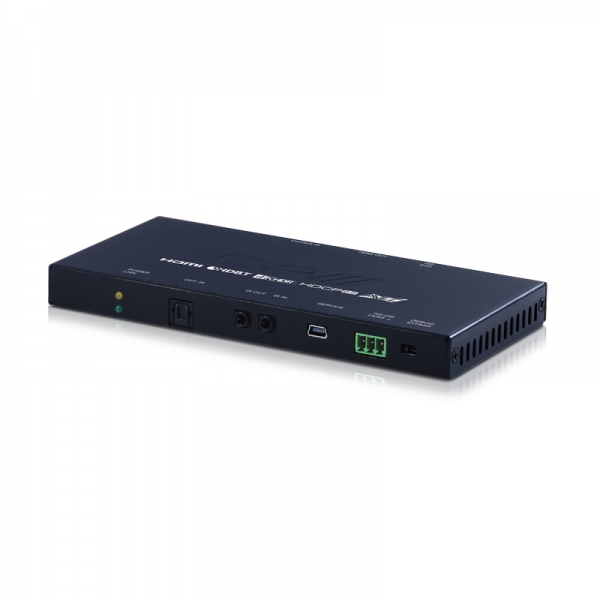

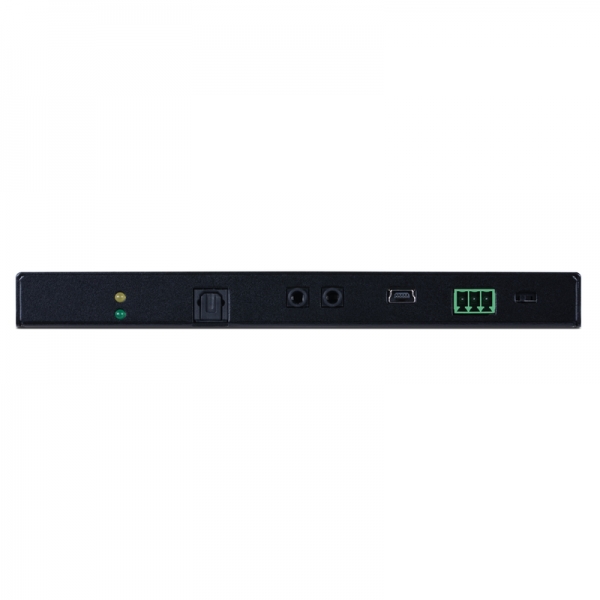

60m HDBaseT Lite Receiver

The PUV-1730LRX-AVLC Receiver enables video resolutions up to 4K UHD including 10/12-bit HDR10 and Dolby Vision, to be transmitted alongside HD sound, 2-Way IR, RS-232, PoH (Power over HDBaseT) signals up to 70m distance.

HDBaseT convergence: High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through
Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video output
AVLC (Adaptive Visually Lossless Compression)
AVLC Features manual selection between High Quality and Standard compression from TX (Useful for longer cable runs)
Supports 10-bit and 12-bit HDR (High Dynamic Range)
Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
Supports Deep Colour input and output up to 12-bit
Supports CEC Bypass
OAR (Optical Audio Return) returning audio to the TX from the Optical input
4K 3G Timings and 1080p up to 70 metres, 4K 6G Timings up to 35 metres
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Supports 3D signals

Features

HDBaseT convergence: High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through

Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video output

AVLC (Adaptive Visually Lossless Compression)

AVLC Features manual selection between High Quality and Standard compression from TX (Useful for longer cable runs)

Supports 10-bit and 12-bit HDR (High Dynamic Range)

Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)

Supports Deep Colour input and output up to 12-bit

Supports CEC Bypass

OAR (Optical Audio Return) returning audio to the TX from the Optical input

4K 3G Timings and 1080p up to 70 metres, 4K 6G Timings up to 35 metres

Product Description

The PUV-1730LRX-AVLC Receiver supports video resolutions up to 4K UHD including 10/12-bit HDR10 and Dolby Vision, to be transmitted alongside HD sound, 2-Way IR, RS-232, PoH (Power over HDBaseT) signals from 70 metres distance.

This solution gives advanced signal administration guaranteeing reliable outcomes in the most requesting installation environments.

All sound, video, control and power are received over a single Cat6a/7 cable up to 70m @ 4K 3G and 1080p, 35m @ 4K 6G. Utilising the OAR (Optical Audio Return) feature, sound can be received from the display or local source back to the PUV-1730PLTX-AVLC Transmitter.

In spite of the 10.2Gbps constraint of HDBaseT technology, this pivotal item enables data rates of up to 18Gbps to be received utilising AVLC (Adaptive Visually Lossless Compression) Technology. The receiver enables 4KUHD sources up to/including 4K@60Hz(4:4:4 8-bit) and 10/12 bit sources with HDR (including Dolby Vision) to be received over distance from a compatible transmitter. The outcome is flawless 6G 4K visually lossless picture delivered to the display screen.

For use in conjunction with the CYP PUV-1730PLTX-AVLC Transmitter.
