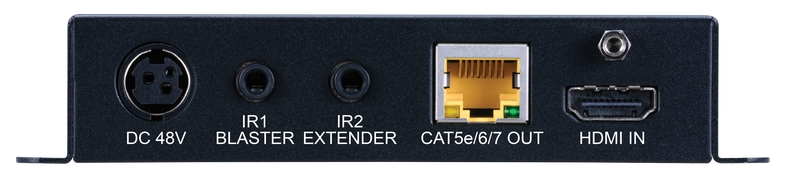

5-Play HDBaseT Transmitter (inc. PoH & single LAN, up to 100m, AVLC)

CYP16803

5-Play HDBaseT Transmitter (inc. PoH & single LAN, up to 100m, AVLC)

The PUV-1810TX-AVLC HDBaseT HDR Transmitter offers advanced signal management, fully supports & enables transfer of 4K UHD, 10/12 bit HDR, Dolby Vision, HD audio via RS-232, 2-way IR, PoH & LAN up to 100m distance.

HDBaseT 5-Play convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video input
AVLC (Adaptive Visually Lossless Compression)
AVLC Features manual selection between High Quality and Standard compression (Useful for longer cable runs)
Supports 10-bit and 12-bit HDR (High Dynamic Range)
Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
Supports Deep Colour input and output up to 12-bit
Supports CEC Bypass
4K 3G Timings and 1080p up-to 100 Metres, 4K 6G Timings upto 70 Metres
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Supports 3D signals

Features

HDBaseT 5-Play convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)

Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video input

AVLC (Adaptive Visually Lossless Compression)

AVLC Features manual selection between High Quality and Standard compression (Useful for longer cable runs)

Supports 10-bit and 12-bit HDR (High Dynamic Range)

Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)

Supports Deep Colour input and output up to 12-bit

Supports CEC Bypass

4K 3G Timings and 1080p up-to 100 Metres, 4K 6G Timings upto 70 Metres

Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio

Product Description

The PUV-1810TX-AVLC HDBaseT HDR Transmitter offers advanced signal management, fully supports & enables transfer of 4K UHD, 10/12 bit HDR, Dolby Vision, HD audio via RS-232, 2-way IR, PoH & LAN up to 100m distance.

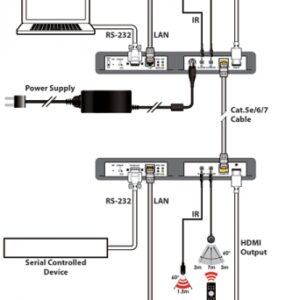

The PUV-1810TX-AVLC is connected and powered simultaneously via a single Cat6/7 cable through a distance over a single Cat6a/7 cable up to 100m @ 4K 3G and 1080p, 70m @ 4K 6G, ensuring all video, audio, control, management and power is received with minimum cabling on installation. The HDBaseT receiver, despite having a 10.2Gbps limitation, will enable data receipt/transfer rates of up to 18Gbps using Adaptive Visualy Lossless Compression technology (AVLC).

Regardless of the 10.2Gbps limitation of HDBaseT technology, the PUV-1810-AVLC Series enables data rates of up to 18Gbps to be transferred using AVLC (Adaptive Visually Lossless Compression) Technology. The PUV-1810TX-AVLC transmitter enables 4K UHD sources up to and including 4K@60Hz (4:4:4 8-bit) as well as 10/12 bit sources with HDR (including Dolby Vision) to be extended to the PUV-1810RX-AVLC receiver.

The PUV-1810TX-AVLC Transmitter supports 10/12bit sources with HDR (& Dolby Vision) and 4KUHD up to/including 4K@60Hz (4:4:4 8bit) whem used in conjunction with its appropriate receiver, PUV-1810RX-AVLC resulting in the output of seemingly lossless perfect 6G 4K image transfer to display.
