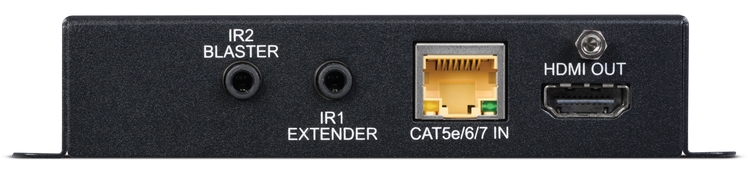

5-Play HDBaseT Receiver (inc. PoH & single LAN, up to 100m) Power to TX

CYP16796

5-Play HDBaseT Receiver (inc. PoH & single LAN, up to 100m) Power to TX

The CYP PUV-1610RX Receiver accepts transmitted video signals up to 4K UHD, HD Audio, RS-232, 2 way IR, Power-over-HDBaseT (PoH) and LAN up to 100 metres.

Supports uncompressed video/audio up to 10.2Gbps
Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output displays EDID settings
HDCP2.2 Compliant
Supports HDCP repeating and CEC functions
4K/2K & 4K UHD signals can be received from up to 70m via CAT5e/6 and 100m via CAT6a/7
1080p signals can be received from up to 100m via CAT5e/6/6a/7
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
5-Play convergence: HDMI, LAN, PoH & Control (IR & RS232)
Supports 3D signals

Features

Supports uncompressed video/audio up to 10.2Gbps

Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output displays EDID settings

HDCP2.2 Compliant

Supports HDCP repeating and CEC functions

4K/2K & 4K UHD signals can be received from up to 70m via CAT5e/6 and 100m via CAT6a/7

1080p signals can be received from up to 100m via CAT5e/6/6a/7

Audio support up to 7.1CH & Dolby TrueHD, DTS-HD

5-Play convergence: HDMI, LAN, PoH & Control (IR & RS232)

Supports 3D signals

Product Description

For use in conjunction with the PUV-1610TX Transmitter, the CYP PUV-1610RX Receiver accepts transmitted video signals up to 4K UHD, HD Audio, RS-232, 2 way IR, Power-over-HDBaseT (PoH), HDCP2.2 and LAN – simultaneously transmitting all HDBaseT 5Play signals via Cat6/7 cables over distances of up to 100 metres.

The PUV-1610RX, when combined with the PUV-1610TX, ensures high quality and reliable signal management in a wide range of high specification, demanding AV applications for professional and domestic systems.

The PUV-1610RX Receiver also supplies power to the Transmitter over the Cat cable, enabling flexibility in set-up and designing installations for several applications such as meeting rooms.

Specification
