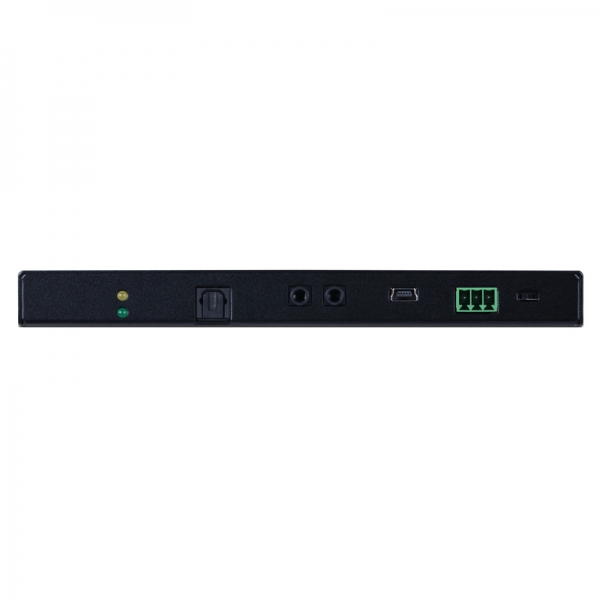

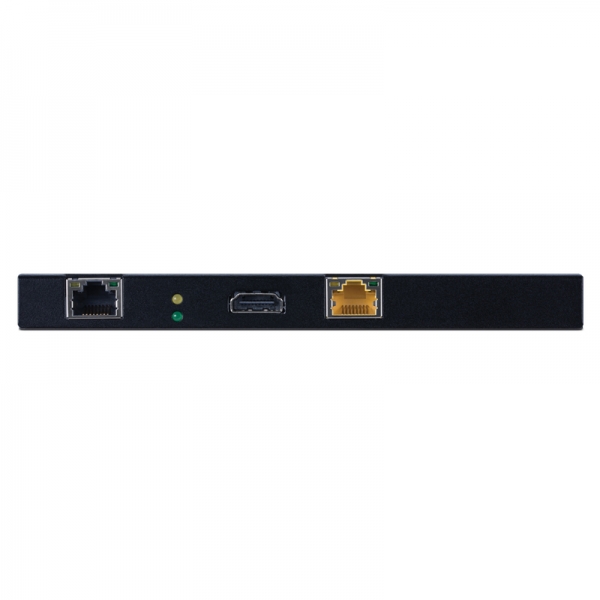

5-Play HDBaseT Receiver (inc. PoH & single LAN, up to 100m, AVLC)

CYP16842

5-Play HDBaseT Receiver (inc. PoH & single LAN, up to 100m, AVLC)

The PUV-1830RX-AVLC Receiver enables video resolutions up to 4K UHD including 10/12-bit HDR and Dolby Vision, received alongside HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT) and LAN signals from 100m distance.

HDBaseT 5-Play convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video output
AVLC (Adaptive Visually Lossless Compression)
AVLC Features manual selection between High Quality and Standard compression from TX (Useful for longer cable runs)
Supports 10-bit and 12-bit HDR (High Dynamic Range)
Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
Supports OAR (Optical Audio Return)
Supports Deep Colour input and output up to 12-bit
Supports CEC Bypass
4K 3G Timings and 1080p up-to 100 Metres, 4K 6G Timings upto 70 Metres
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Supports 3D signals

Features

HDBaseT 5-Play convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)

Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video output

AVLC (Adaptive Visually Lossless Compression)

AVLC Features manual selection between High Quality and Standard compression from TX (Useful for longer cable runs)

Supports 10-bit and 12-bit HDR (High Dynamic Range)

Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)

Supports OAR (Optical Audio Return)

Supports Deep Colour input and output up to 12-bit

Supports CEC Bypass

4K 3G Timings and 1080p up-to 100 Metres, 4K 6G Timings upto 70 Metres

Product Description

The PUV-1830RX-AVLC Receiver enables video resolutions up to 4K UHD including 10/12-bit HDR and Dolby Vision, received alongside HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT) and LAN signals from 100 metres distance.

This solution gives advanced signal administration guaranteeing reliable outcomes in the most testing installation conditions. All audio, video, control and power are received simultaneously over a single Cat6a/7 cable up to 100m @ 4K 3G and 1080p, 70m @ 4K 6G. Utilising the OAR (Optical Audio Return), sound can be sent from the display or local source back to the TX.

Despite of the 10.2Gbps constraint of HDBaseT innovation, this product enables data rates of up to 18Gbps to be received utilising AVLC (Adaptive Visually Lossless Compression) Technology.

The receiver enables 4KUHD sources up-to and including 4K@60Hz (4:4:4 8-bit) and also 10/12 bit sources with HDR (Including Dolby Vision) to be received over distance from a transmitter with compatibility. The outcome is an impeccable 6G 4K visually lossless picture conveyed to the display screen.

For use in conjunction with the CYP PUV-1830TX-AVLC Transmitter.
