CYP11056

4X4 HDMI MATRIX SWITCHER UHD HDCP2.2

This 4×4 HDMI Matrix Switcher is designed to enable the user to switch between any of the four connected HDMI sources to send video and audio to any of the four connected HDMI display.

HDMI2.0 and HDCP2.2 compliant
Routes four HDMI sources to four HDMI displays
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
4K UHD resolutions (4K2K@60Hz - YUV4:4:4)
Supports HDR (High Dynamic Range) and Deep Colour

Features

HDMI2.0 and HDCP2.2 compliant

Routes four HDMI sources to four HDMI displays

Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio

4K UHD resolutions (4K2K@60Hz – YUV4:4:4)

Supports HDR (High Dynamic Range) and Deep Colour

Product Description

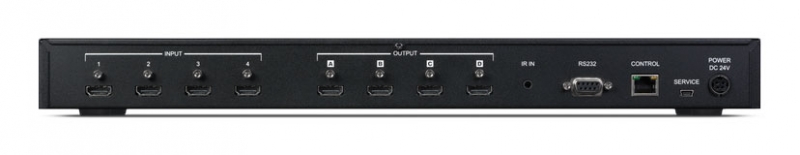

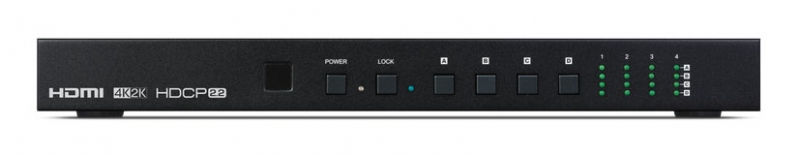

The OR-44-4K22 4×4 HDMI Matrix Switcher is designed to enable the user to switch between any of the four connected HDMI sources to send video and audio to any of the four connected HDMI display. This matrix switcher fully supports 4K resolutions and is HDMI2.0 and HDCP 2.2 compliant, ensuring maximum compatibility with the latest 4K UHD sources and displays.

The OR-44-4K22 unit supports all the latest features of the HDMI2.0 specification such as 4K UHD resolutions (4K2K@60Hz – YUV4:4:4), HDR (High Dynamic Range), ‘Deep Color’, and High Definition audio. Control is via manual selection buttons, IR, RS-232, Telnet or Web GUI.

Specification
