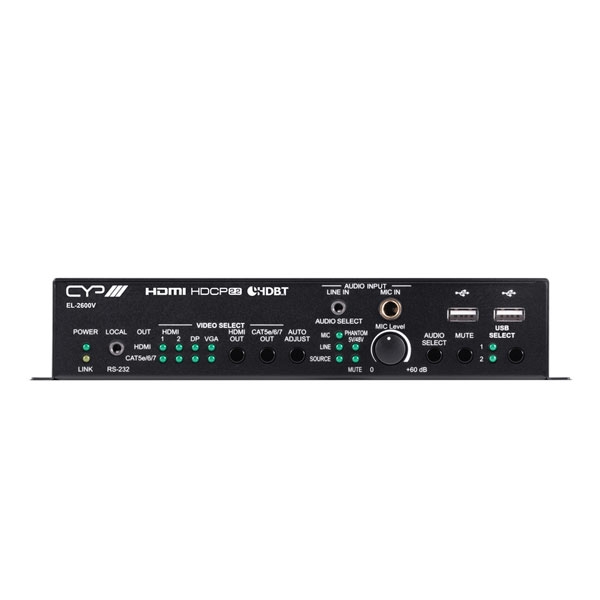

4K UHD HDMI/DP/VGA/USB over HDBaseT Presentation Switcher
EL-2600V is a presentation switcher, designed for use in environments that need a range of flexibility in terms of inputs, outputs and control.
- HDMI and DisplayPort with 18Gbps (600MHz), 3D & 4K video support; HDBaseT 2.0 compatible
- HDCP 1.x & 2.2 compliant
- HDMI and DisplayPort support input resolutions up to 4K@60Hz (4:4:4, 8-bit)
- VGA supports input resolutions up to 1080p/WUXGA (RB)
- HDMI output supports resolutions up to 4K@60Hz (4:4:4, 8-bit)
- HDBaseT output supports resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) with automatic color space conversion of 4K@60Hz (4:4:4, 8-bit) sources
- 4×2 matrix switching (HDMI and HDBaseT outputs are independent)
- Supported HDBaseT features: HD video and audio, 100BaseT Ethernet, 48V PoH, and control (bidirectional IR/RS-232/USB pass-through)
- Supports pass-through of LPCM 2.0/5.1/7.1, Bitstream & HD Bitstream audio formats
- Balanced analogue stereo audio breakout
- Supports extended keypad (trigger) control for easy, single button, macro activation (optional equipment required)
- Supports local power, or power via 48V PoH from Receiver (Not Included) to Transmitter (compatible Receivers only)
Features
Product Description

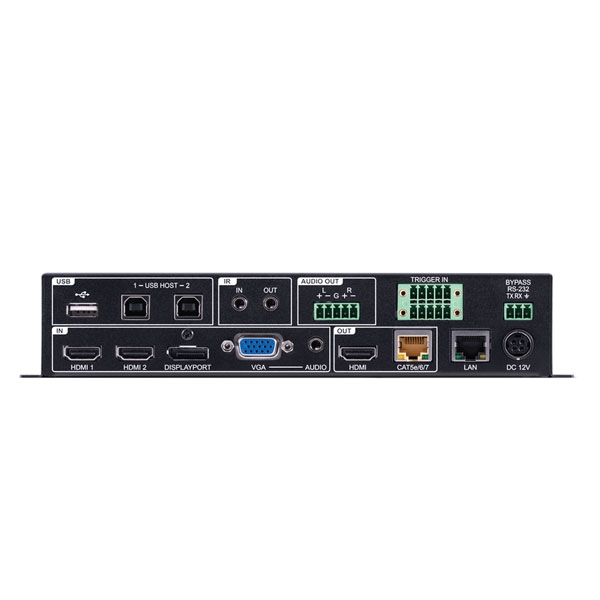

The EL-2600V includes the most 3 common video input interfaces (HDMI, Display port and VGA with stereo audio) which provides ultimate source compatibility and flexibility. The HDMI and Display port inputs support upto 4K@60Hz (4:4:4, 8bit) this is then converted when necessary for transmission over HDBaseT.
This unit also includes a microphone input which has an optional 48v or 5V phantom power support, feeding directly into a DSP mixer offering the complete presentation solution.
The unit uses a standard power supply or a 48V Power over HDBaseT provided by the PUV-2600RX can be used. This allows much greater flexibility within various installation scenarios. You can control the unit via a WebGUI, front panel controls, triggers, RS-232 and telnet.
