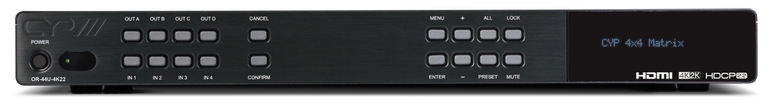

4 x 4 HDMI Matrix Switcher (4K, HDCP2.2, HDMI2.0, USB Power)
The OR-44U-4K22 4KUHD 4x4 Matrix enables the connection of up to 4K UHD HDMI sources and to easily switch between them.
- HDMI input and output with 18Gbps (6G) 4K UHD (HDR) support
- DVI 1.0 compliant with the use of an HDMI-DVI adaptor
- HDCP 1.4 and 2.2 compliant
- Supports HD resolutions up to 3840x2160@60 Hz (YUV 4:4:4, 8-bit) & 4096x2160@60 Hz (YUV 4:4:4, 8-bit)
Features
- HDMI input and output with 18Gbps (6G) 4K UHD (HDR) support
- DVI 1.0 compliant with the use of an HDMI-DVI adaptor
- HDCP 1.4 and 2.2 compliant
- Supports HD resolutions up to 3840x2160@60 Hz (YUV 4:4:4, 8-bit) & 4096x2160@60 Hz (YUV 4:4:4, 8-bit)
- Supports 48-bit Deep Color up to 1080p @60hz
- Supports pass-through of LPCM 7.1, bitstream and HD bitstream audio formats
- Supports six internal EDIDs, four external EDIDs copied from connected devices, and four user provided EDIDs
- Four USB ports to supply 5V/1A power
- OSD for custom text overlay
- Intuitive control interface including telnet, WebGUI, OSD, IR remote and RS-232
- USB Input (Firmware only)
Product Description
The OR-44U-4K22 4KUHD 4x4 Matrix enables the connection of up to 4K UHD HDMI sources and to easily switch between them.
Specification
Downloads
