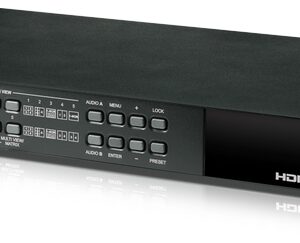

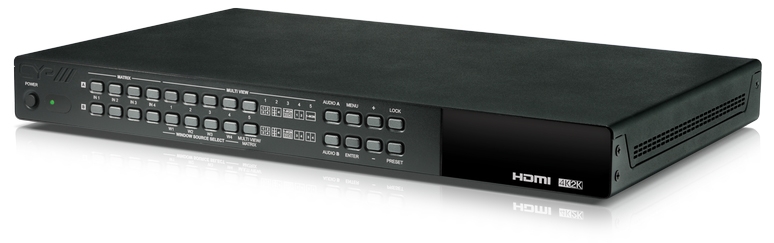

CYPP-EL-42PIP

4 x 2 HDMI PiP Switcher

The EL-42PIP HDMI Switcher is an advanced 4-way HDMI plug and play switch incorporating Picture-in-Picture (or Multi-view) technology with advanced…

  • Integration of up to 4 sources to two independent displays

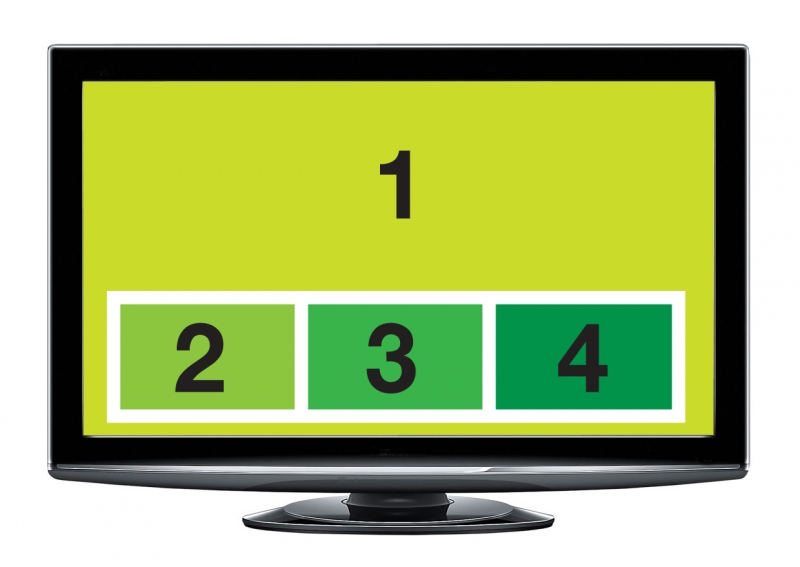

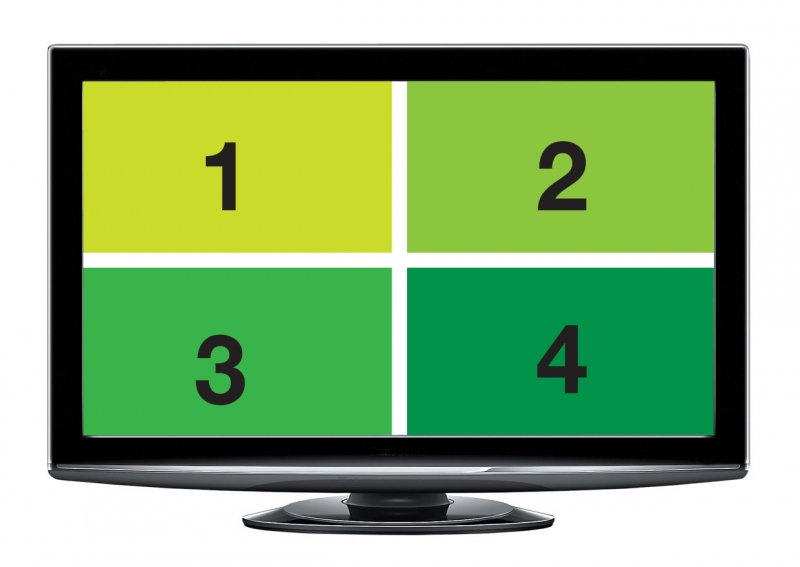

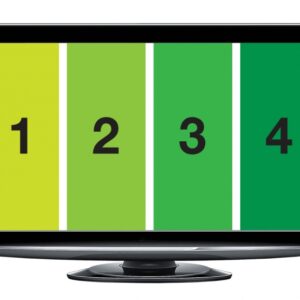

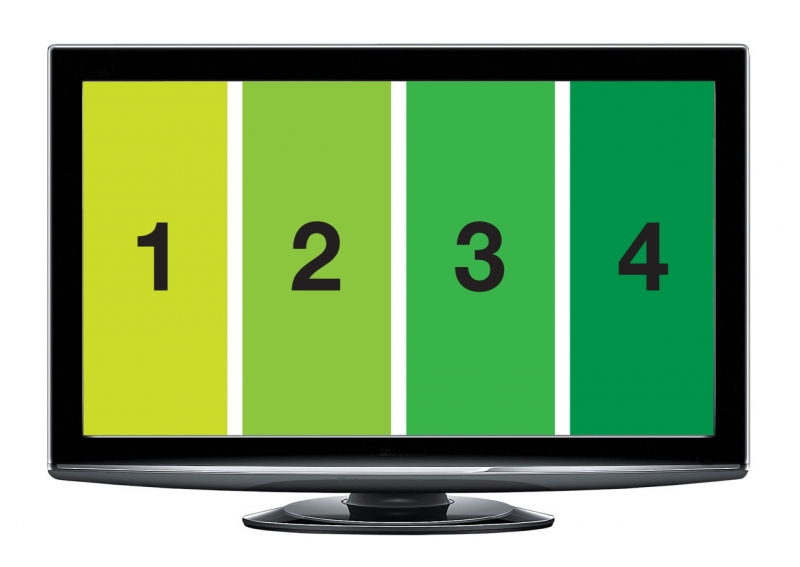

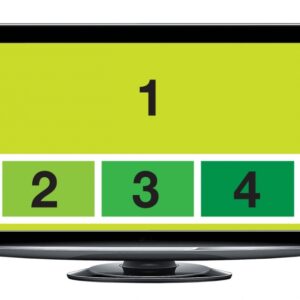

  • Supports 8 preset screen layout configurations & an additional 4 custom configurations
  • Seamless switching channels and on screen windows
  • Fade in out display functionality
Features
  • Integration of up to 4 sources to two independent displays
  • Supports 8 preset screen layout configurations & an additional 4 custom configurations
  • Seamless switching channels and on screen windows
  • Fade in out display functionality
  • Ability to mirror and rotate images
  • Zoom & Shrink HDMI Video and / or Overlay
  • Supports adjustment of individual channel size and position
  • Resolutions supported: HDTV: 480i to 1080p, 1080p@24, 4K2K@30; PC: VGA to WUXGA@60(RB)
  • Supports 4K@24/25/30 on HDMI inputs 1 & 3 only
  • Supports IR, On-screen Display (OSD), RS232,Telnet/WebGUI, Remote and on-panel controls

The EL-42PIP HDMI Switcher is an advanced 4-way HDMI plug and play switch incorporating Picture-in-Picture (or Multi-view) technology with advanced control/display functions for each 1080p HDMI source.

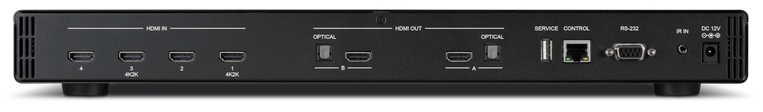

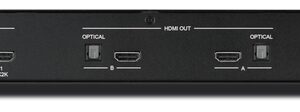

The EL-42PIP supports Ultra High Definition video content, featuring 2x UHD outputs from two HDMI sources to supply 2 4k UHD displays.

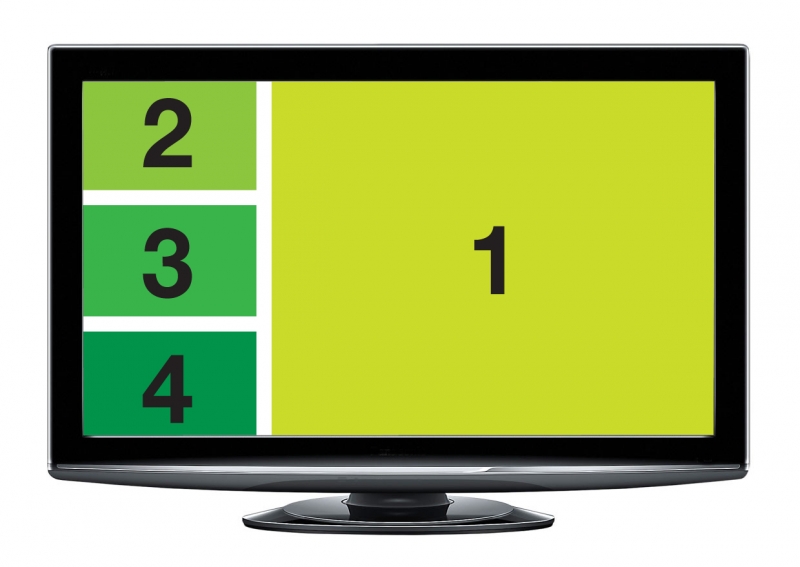

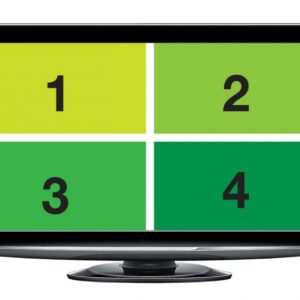

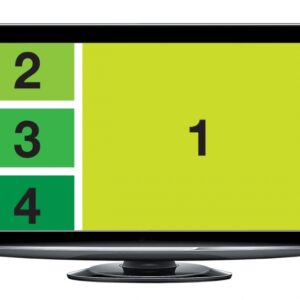

The output to each connected screen can be independently configured to display the desired sources either in full screen mode or picture-in-picture (PIP) mode.

Additional flexibility is provided with on-board pre-configured PIP settings or create and save your favourite custom output configurations to suit any AV installation.

Control is via preset hot keys, OSD, IR, RS-232 and Telnet for instant control and switching.

The WebGUI feature allows complete control over the size, position and setting of the source images independently to each output.

The EL-42PIP HDMI UHD Switcher is the perfect cost effective solution for integrating multiple digital and analogue video sources for simultaneous display on two independent screens within a commercial or residential AV installation.
